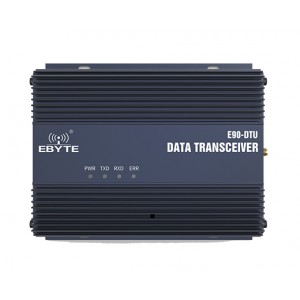

Ebyte E90-DTU(400SL42) 30Km Long Distance RS485/RS232 15W 433MHz LoRa Wireless Transceiver Modem

Ebyte E90-DTU(400SL42) 30Km Long Distance RS485/RS232 15W 433MHz LoRa Wireless Transceiver Modem

E90-DTU(400SL42) is a real high-quality industrial-grade wireless data transmission radio. The radio adopts LORA spread spectrum technology. Its strong anti-interference ability makes wireless communication more stable and reliable in industrial sites. It has a variety of transmission methods, works in the (410.125～493.125MHz) frequency band (default 433.125MHz), and the radio station provides a transparent RS232/RS485 interface. LoRa direct-sequence spread spectrum technology will bring a longer communication distance and has the advantage of strong anti-interference ability.

The module has a software FEC forward error correction algorithm, which has high coding efficiency and strong error correction ability, greatly improving reliability and transmission distance. The radio has the function of data encryption; it supports the setting of packet length, and supports different real-time and data packets.

Datasheet

Feature

• Environmental field strength dynamic indication, data packet RSSI dynamic indication
• Software and hardware dual watchdog
• Dustproof and moistureproof
• The product is simple and easy to use, with host computer configuration software;
• Using the latest LoRa technology, the distance is farther than the traditional LoRa data transmitter, and the performanceismore powerful
• Military-grade LoRa modulation technology is adopted, with data encryption and adjustable subpacket length
• Super large single package, up to 240 bytes
• Simple and high-efficiency power supply design, using crimp wire, supporting 12V power supply
• Transmitting power up to 15W
• Support LBT function, the radio automatically waits for transmission according to the current environmental noise intensity. Greatly improve the communication success rate of the module in harsh environments
• Support communication key function to effectively prevent data from being intercepted
• Multi-level relay networking can be realized, the communication distance can be effectively extended, and ultra-long-distancecommunication can be realized
• Using temperature compensation circuit, the frequency stability is better than ±1PPM
• All aluminum alloy shell, compact size, easy installation, good heat dissipation; perfect shielding design, good electromagneticcompatibility, strong anti-interference abilit
• Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc.
• Temperature monitoring, antenna abnormality monitoring
