Ebyte E72-2G4M02S2A CC2630 2.4Ghz Multi Protocol Wireless System-on-Chip Module

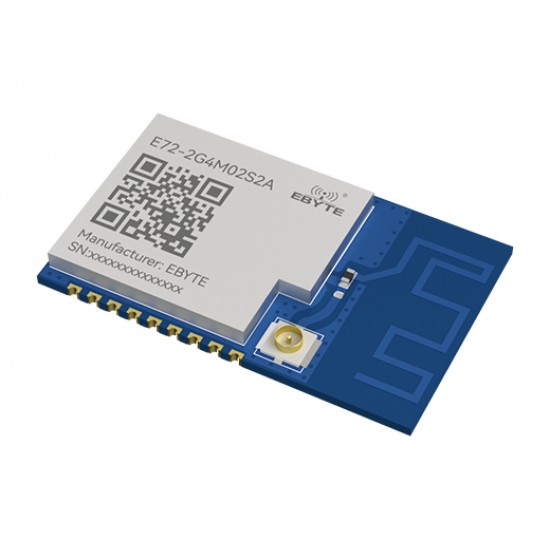

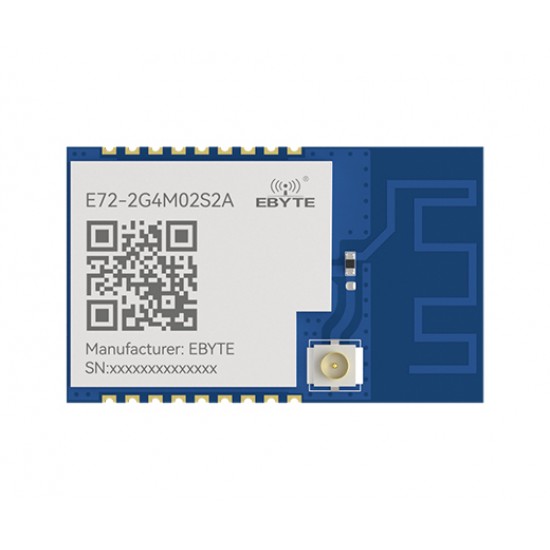

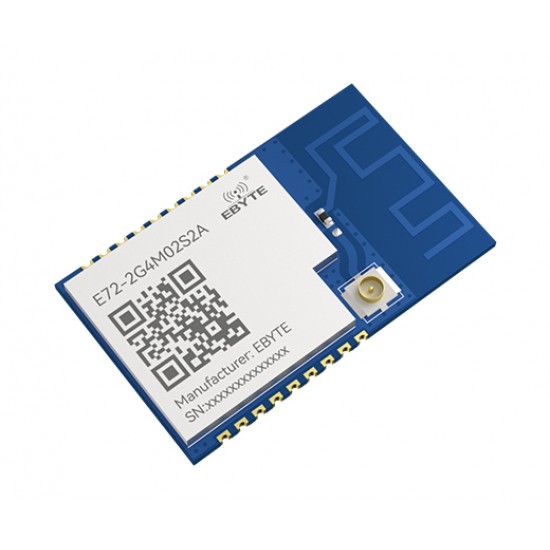

The E72-2G4M02S2A is a small-size surface-mount ZigBee and 6LoWPAN wireless module independently developed based on the Texas Instruments (TI) CC2630 chip. It uses a 24MHz industrial-grade high-precision low-temperature drift crystal oscillator. The CC2630 chip integrates 128KB of in-system programmable flash memory, 8KB of cached static RAM (SRAM), and 20KB of ultra-low leakage SRAM. It supports ZigBee and 6LoWPAN wireless communication protocols. Due to its unique ultra-low power sensor controller, it is very suitable for connecting external sensors and for autonomously collecting analog and digital data while the rest of the system is in sleep mode.

Datasheet

Specifications

Power supply voltage (V): 0 - 3.8
Blocking power (dBm): -5
Operating temperature ( °C ): -40 - 85
Operating voltage (V): 1.8 - 3.3 - 3.8
Communication level (V): - 3 -
Operating temperature ( °C ): -40 - 85
Operating frequency band (GHz): 2.402 - 2.48
E72-2G4M02S2A Maximum Transmit Power (dBm): 1.5 - 2 - 2
Receiver sensitivity (dBm): -98.5 - 99 - 100.5
Air speed (bps): 250k - 1M
E72-2G4M02S2A Reference Distance: 250m
Crystal oscillator frequency: 24MHz/32.768KHz
Support Protocol: ZigBee/6LoWPAN
Packaging method: surface mount
Interface method: 1.27mm
E72-2G4M02S2A IC Full Name: CC2630F128RSM
FLASH: 128KB
RAM: 28KB
kernel: Cortex-M3+Cortex-M0
E72-2G4M02S2A External Dimensions: 14.0*23.0 mm
Antenna Interface: PCB/IPEX
E72-2G4M02S2A weight: 1.2g

Package Includes

1x Ebyte E72-2G4M02S2A CC2630 2.4Ghz Multi Protocol Wireless System-on-Chip Module
