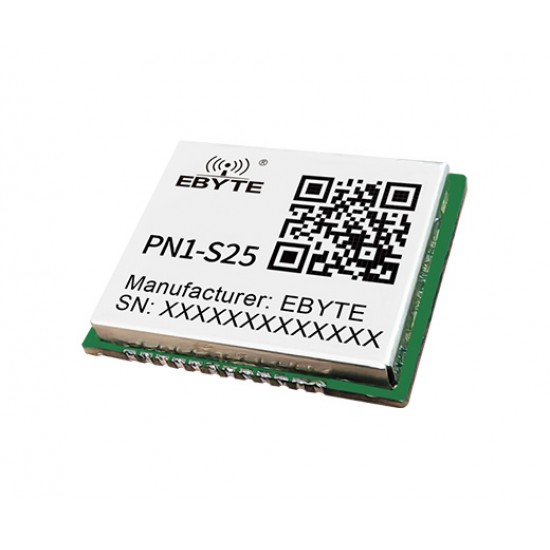

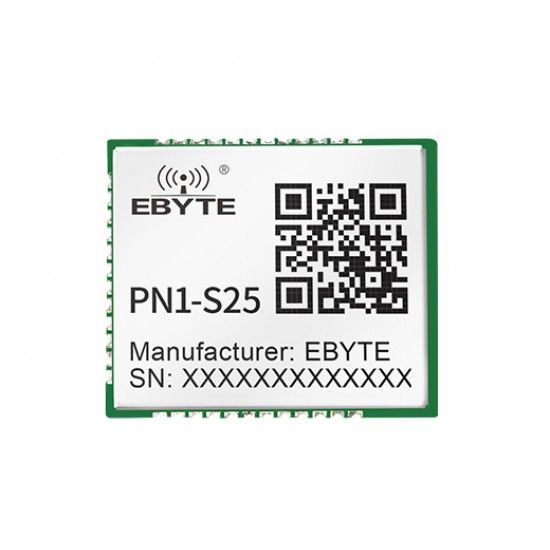

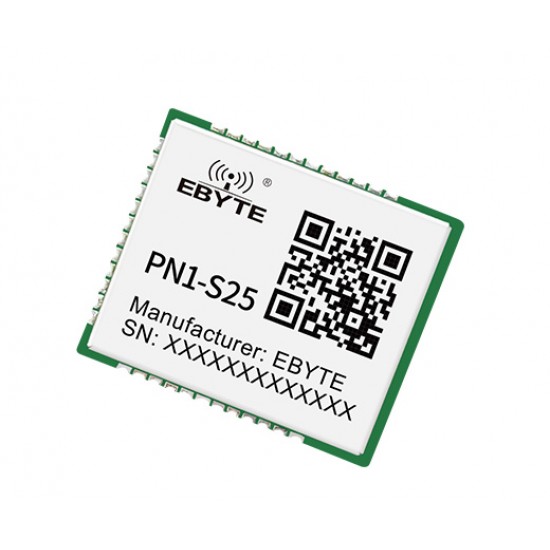

Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module

Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
New
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
Ebyte
Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​3,564.00
₹​3,020.34 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 30
B2B GST Credit Available
Price in reward points: 3020
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module

PN1-S25 wireless module is a Profinet to Modbus RTU gateway module designed for industrial communication. It is used to map Modbus data to Profinet. It uses GSD files for integration, and can read and write Modbus devices without code. Data can be quickly set and transferred to the PLC. All Modbus commands are loaded in the form of modules. The memory mapping relationship between Profinet and Modbus is intuitive and can be queried in STEP 7 or TIA Portal software. The status byte can be loaded to query the connection status of the Modbus device and monitor the device status in real time. It supports Modbus RTU (master/slave) protocol.


Datasheet


Specifications

  • power supply
    • Operating voltage: 3.3V±0.2V
    • Working current
      • Peak: 125mA
      • Standby: 93mA
  • Communication level: 3.3V
  • Encapsulation: 1.27mm stamp hole
  • Network parameters
    • Communication Protocol: Standard Profinet protocol (RT)
    • Maximum communication cycle: 4ms
    • Communication bandwidth: 10/100M adaptive
  • Serial port parameters
    • Communication Protocol: Standard Modbus RTU protocol
    • Baud rate: 1200～3.9M bps
    • Communication Format
      • Data bits: 7/8 Bits (default 8)
      • Stop bits: 1/2 Bits (default 1)
      • Check: None/Odd/Even (default None)
  • Work Environment
    • Working temperature and humidity: -40 ～ +85℃, 5% ～ 95%RH (no condensation)
    • Storage temperature and humidity: -40 ～ +105℃, 5% ～ 95%RH (no condensation)
  • other
    • Product size: 24.0mm * 19.0mm * 3.2mm (length * width * height)
    • Product Weight: 3 ±1 g
    • Installation: Standard industrial grade 35mm rail installation


Package Includes

  • 1x Ebyte PN1-S25 Profinet to Modbus gateway patch module

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Ebyte , PN1-S25 , Profinet Gateway , Modbus RTU , Protocol Converter , Industrial Automation , PLC Communication

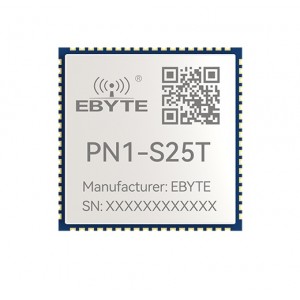

Ebyte PN1-S25T PROFINET to Modbus Gateway Module
