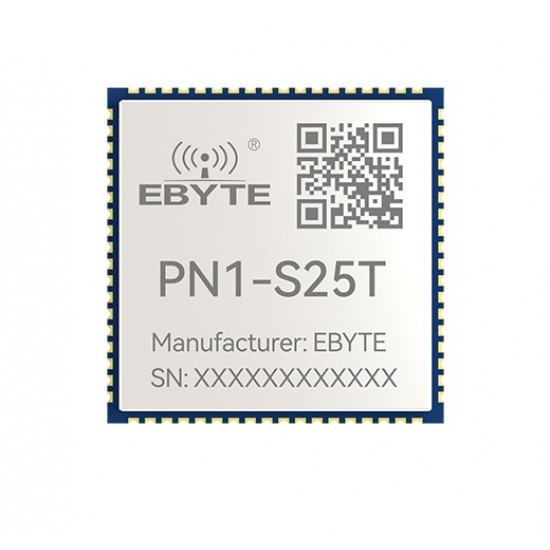

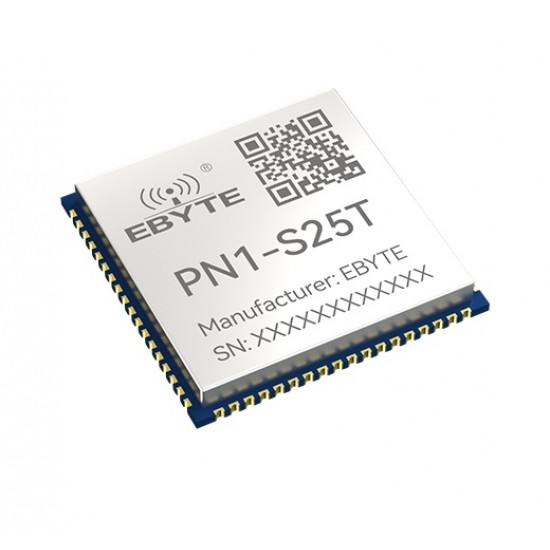

Ebyte PN1-S25T PROFINET to Modbus Gateway Module

The PN1-S25T is a Profinet-to-Modbus TCP/RTU gateway module designed specifically for industrial communication, enabling the mapping of Modbus data to Profinet. It utilizes GSD files for integration, allowing for code-free reading from and writing to Modbus devices, as well as rapid data configuration and transfer to the PLC. Modbus commands are loaded as modules, and the memory mapping between Profinet and Modbus is intuitive and viewable within STEP7 or TIA Portal software. Additionally, status bytes can be loaded to check the connection status of Modbus devices, facilitating real-time device monitoring.


Datasheet


Specifications

  • Power supply
  • Operating voltage: DC 3.3V±0.3V
  • Operating current
    • Peak current: 207mA
    • operating current: 176mA
    • standby current: 175mA
  • Communication level: 3.3V
  • Packaging: 1.27mm stamp hole
  • Profinet network parameters
    • Communication protocol: Standard Profinet Protocol (RT)
    • Maximum communication cycle: 4ms
    • Communication bandwidth: 10/100M adaptive
  • Profinet network parameters
    • Communication protocol: Standard Profinet Protocol (RT)
    • Maximum communication cycle: 4ms
    • Communication bandwidth: 10/100M adaptive
  • Serial port parameters
    • Communication protocol: Standard Modbus RTU protocol
    • Porter rate: 1200 ~ 3.9M bps
  • Serial port parameters
    • Communication format
      • Data bits: 7/8 bits (default 8)
      • Stop bit: 1/2 bits (default 1)
      • Checksum: None/Odd/Even (default: None)
  • Work environment
    • Operating temperature and humidity: -40 ~ +85°C, 5% ~ 95% RH (non-condensing)
    • Storage temperature and humidity: -40 ~ +105°C, 5% ~ 95% RH (non-condensing)
  • Others
    • Product dimensions: 27.0mm * 27.0mm * 3.0mm (LW) (L, W, H).
    • Product weight: 4 ± 1 g

Package Includes

  • 1x Ebyte PN1-S25T PROFINET to Modbus Gateway Module

Write a review

Note: HTML is not translated!
Bad Good
Captcha

Warranty Terms :

Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

What to take care of ?

Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

Who pays the return shipping cost?

Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

What voids warranty?

Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

Following items are not eligible for return under any circumstances

  • Device Programmers / Dongles
  • Soldering Consumables (Wire, Flux etc)


Tags: Ebyte , PN1-S25T , PROFINET Gateway , Modbus Gateway , PROFINET to Modbus , Industrial Gateway , Protocol Converter

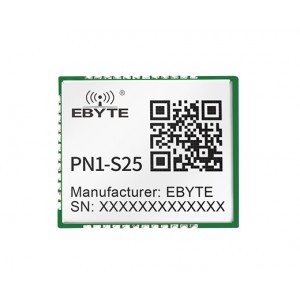

Ebyte PN1-S25 Profinet To Modbus Gateway Patch Module
