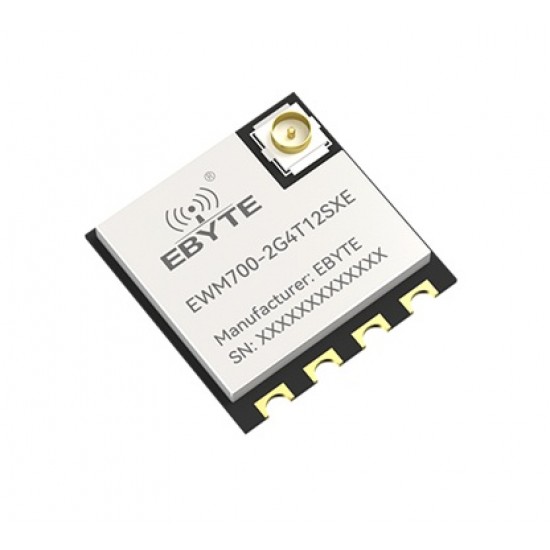

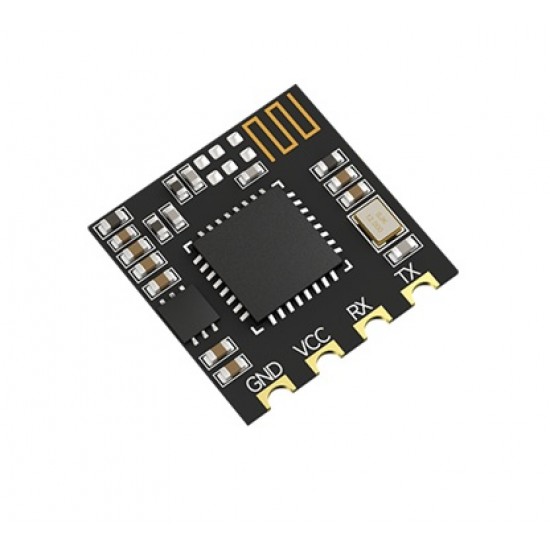

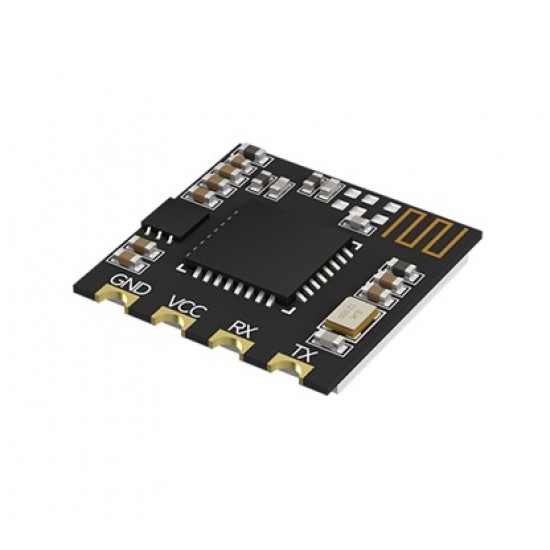

Ebyte EWM700-2G4T12SXE 2.4GHz ESP8285 + SX1281 Based ExpressLRS Open-Source License Wireless Receiver Module | UART | 12dBm

The EWM700-2G4T12SXE is a compact 2.4GHz ExpressLRS (ELRS) wireless receiver module designed for long-range, ultra-low latency wireless communication in FPV drones, RC aircraft, robotics, and unmanned systems. Powered by the ESP8285 microcontroller and SX1281 RF transceiver, this open-source receiver supports the CRSF protocol over a UART interface, ensuring seamless integration with popular flight controllers and ELRS-compatible transmitters. Operating in the 2.4GHz ISM band with 12dBm transmit power, the module delivers reliable communication, high refresh rates, and excellent anti-interference performance while maintaining an ultra-compact 12 × 12mm footprint. Supporting 3.3V–5.5V input, TTL-level UART communication, and an IPEX antenna connector, it is an ideal choice for space-constrained embedded wireless applications requiring dependable long-range control and telemetry.


Datasheet


Specifications

  • Product models: EWM700-2G4T12SXE
  • Connection protocol: CRSF
  • Operating frequency: ISM 2.4GHz
  • Chip solutions: ESP8285+SX1281
  • Interface method: 2.54mm stamp hole
  • Communication interface: UART
  • Return power: 15.8mW
  • Antenna interface: IPEX1
  • Weight: 0.7g±0.1g
  • External dimensions: 12.0*12.0*3.3mm (L*W*H).
  • Default firmware: ExpressLRS 3.4.2 Generic ESP8285 2.4Ghz RX
  • Operating temperature: -40°C~+85°C, industrial-grade standard
  • Operating humidity: 10~90%RH
  • Storage temperature: -40℃~+125℃
  • Supply voltage: 3.3V~5.5V, 5.0V power supply is recommended; exceeding 5.5V carries the risk of module burnout
  • Communication level: TTL
  • Transmit the current: ≈60mA,WiFi off, instantaneous power consumption
  • Receiving current: ≈ 33mA, WiFi turned off


Package Includes

  • 1x Ebyte EWM700-2G4T12SXE 2.4GHz ESP8285 + SX1281 Based ExpressLRS Open-Source License Wireless Receiver Module | UART | 12dBm
