EBYTE EWM700-900T20DXN 915MHz ESP8285 + SX1276 ExpressLRS ELRS Wireless Receiver Module | UART | 20dBm
₹​1,370.00
₹​1,161.02 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 12
B2B GST Credit Available
Price in reward points: 1161

EBYTE EWM700-900T20DXN 915MHz ESP8285 + SX1276 ExpressLRS ELRS Wireless Receiver Module | UART | 20dBm

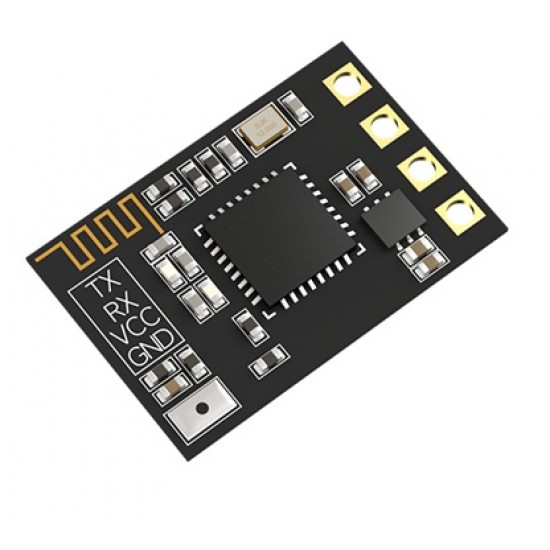

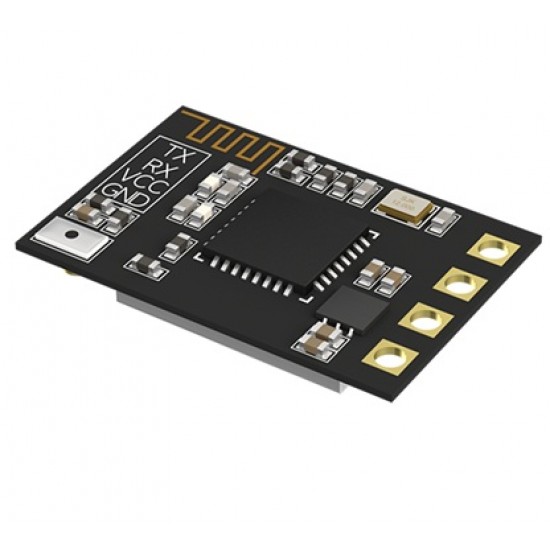

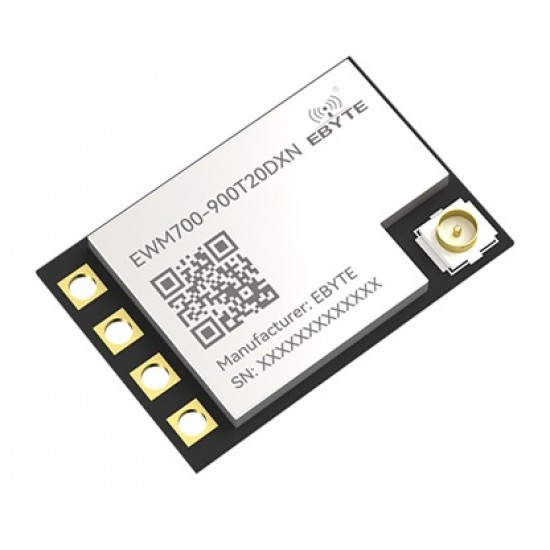

The EBYTE EWM700-900T20DXN is a compact, high-performance 915MHz ExpressLRS (ELRS) wireless receiver module built around the ESP8285 MCU and Semtech SX1276 LoRa transceiver. Designed for FPV drones, UAVs, RC aircraft, flight controllers, and long-range remote control applications, it delivers ultra-low latency, high refresh rates, and exceptional signal reliability. Supporting the open-source ExpressLRS (ELRS) protocol with CRSF over UART, the module ensures seamless integration with modern flight control systems while providing outstanding anti-interference performance for demanding environments. Operating from 3.3V to 5.5V with up to 20dBm (100mW) transmit power, the EWM700-900T20DXN offers stable long-range communication in the FCC 915MHz band. Its compact 18 × 12mm footprint and lightweight design make it an excellent choice for space-constrained FPV and embedded wireless projects.


Datasheet


Specifications

  • Product models: EWM700-900T20DXN
  • Connection protocol: CRSF
  • Operating frequency: FCC 915MHz
  • Chip solutions: ESP8285+SX1276
  • Interface method: 2.54mm stamp hole
  • Communication interface: UART
  • Return power: 100mW
  • Antenna interface: IPEX1
  • Weight: 1.1g±0.1g
  • External dimensions: 18.0*12.0*3.5mm (length * width * thickness).
  • Default firmware: ExpressLRS 3.4.2 Generic ESP8285 PA 2.4Ghz RX
  • Operating temperature: -40°C~+85°C, industrial-grade standard
  • Operating humidity: 10~90%RH
  • Storage temperature: -40℃~+125℃
  • Supply voltage: 3.3V~5.5V, 5.0V power supply is recommended; exceeding 5.5V carries the risk of module burnout
  • Communication level: TTL
  • Transmit the current: ≈141mA,WiFi off, instantaneous power consumption
  • Receiving current: ≈ 33mA, WiFi turned off


Package Includes

  • 1x EBYTE EWM700-900T20DXN 915MHz ESP8285 + SX1276 ExpressLRS ELRS Wireless Receiver Module | UART | 20dBm
