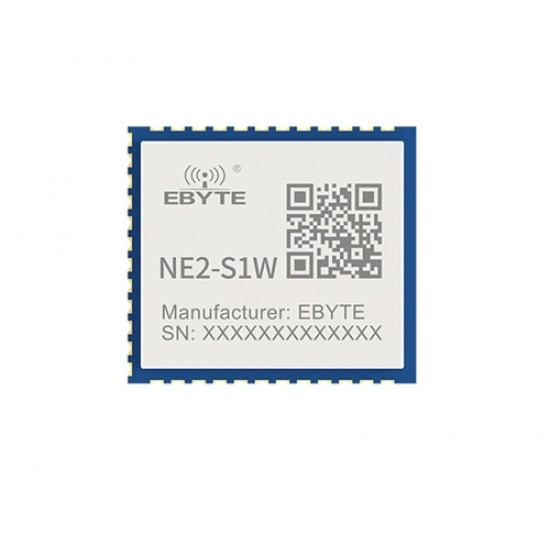

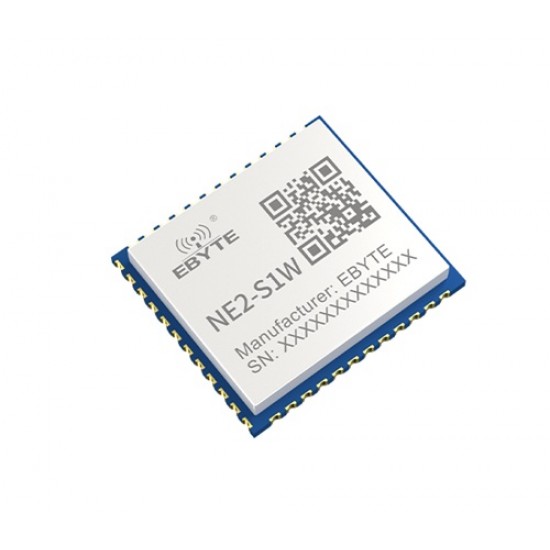

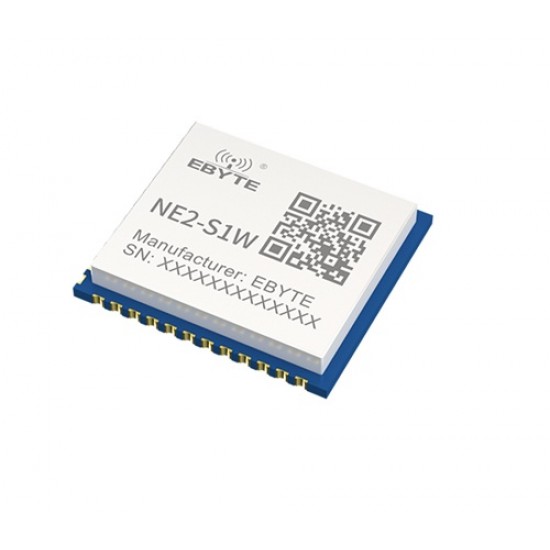

EBYTE NE2-S1W Industrial Serial to Ethernet & WiFi Server Module – TTL to RJ45, 2.4GHz WiFi, MQTT/Modbus Gateway
The NE2-S1W single-serial-port server module enables bidirectional transparent data transmission from serial port to Ethernet/WiFi. Users don't need to worry about the specific details; the device handles the protocol conversion internally. It features multiple Modbus gateway modes and MQTTC/HTTPC IoT gateway modes, meeting the networking needs of various serial devices/PLCs. Adopting industrial-grade design standards ensures device reliability. The product uses a 1.27mm stamp hole interface, is compact, and easy for users to integrate into their systems.
Specifications
- Operating voltage: DC 3.1~6V; if using 5.0V power supply, a power load capacity of 300mA or higher is recommended.
- Packaging: 1.27mm stamp perforation
- Work mode: TCP Server（default）、TCP Client、UDP Server、UDP Client、HTTP Client、MQTT Client
- Socket connection: The TCP server supports up to 5 client connections per connection.
- Network Protocol: TCP/UDP、MQTT、HTTP、IPv4、DHCP、DNS
- Ethernet IP Acquisition: Static IP (default), DHCP
- WiFi working mode: AP (default), STA
- DNS domain name resolution: support
- Domain Name Resolution Server: 114.114.114.114 (Customizable)
- Configuration method: Web page, parameter configuration tool, AT commands
- Ethernet IP address: 192.168.3.7 (customizable)
- Local port: 8886 (customizable)
- Subnet mask: 255.255.255.0 (customizable)
- gateway; 192.168.3.1 (Customizable)
- Serial port cache: 10kByte or 1024 packets
- Packaging mechanism: Maximum length 1024 bytes, idle time 1~80 bytes
- Serial port baud rate: 600~460800 bps (default 115200)
- Data bits: 5, 6, 7, 8 (default)
- Stop bit: 1 (default), 1.5, 2
- Product Dimensions: 19×17mm （L×W×H）
- Operating temperature and humidity: -40~+85℃, 5%~95%RH (non-condensing)
- Storage temperature and humidity: -40~+105℃, 5%~95%RH (non-condensing)
Package Includes
- 1x EBYTE NE2-S1W Industrial Serial to Ethernet & WiFi Server Module – TTL to RJ45, 2.4GHz WiFi, MQTT/Modbus Gateway
