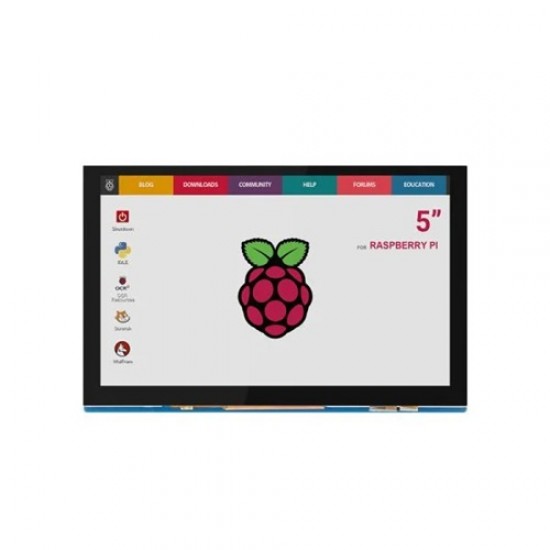

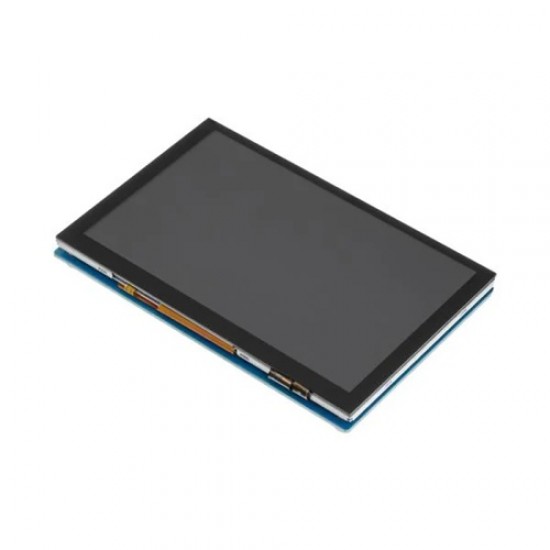

Elecrow 5inch DSI display IPS 800x480 touch screen compatible with Raspberry Pi
This is a 5" Raspberry Pi LCD touchscreen with a resolution of 800*480 and a display area of 108*64.8mm. This product supports the Raspberry Pi DSI display interface, the screen has a capacitive touch panel, plug and play, and no installation required Driver. The design on the back of the screen with holes makes it convenient to install the Raspberry Pi directly in the product. The display is powered by the Raspberry Pi and does not require an external power supply. In addition, the screen has a backlight brightness adjustment button, which supports an external PWM signal for backlight brightness adjustment.
Features
- 800x480 resolution display, IPS full viewing angle
- Raspberry Pi MIPI DSI interface direct output, plug and play, no driver
- Support official system Raspbian, multi-touch;
- Support Ubuntu/Kali/Win10 IoT, single touch; Support Retropie

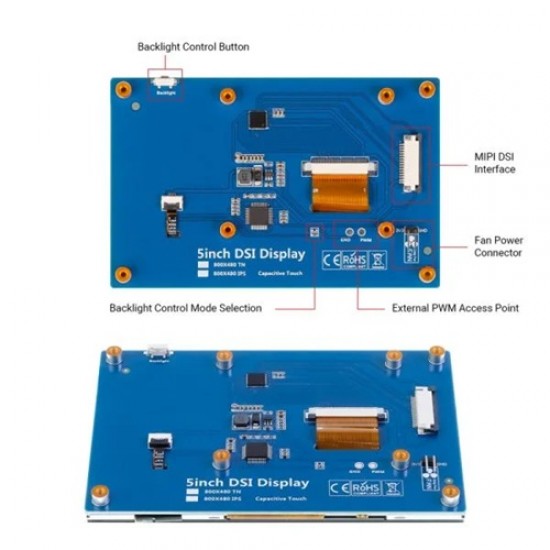

- A variety of backlight adjustment methods can be used in various environments
Specifications
- Size：5 inch
- Resolution：800*480
- Refresh Rate: 60Hz
- Maximum Brightness: 500cd/m²
- LCD Interface Type: RGB888 Port
- Module Interface Type: MIPI DSI
- Touch Type: Capacitive Touch Screen
- View Angle: IPS 178°
- Active Area: 108*64.8mm
- Operating Voltage: 3.3v
- Maximum operating current: 3400mA
- Operating temperature: -20℃-70℃
- Appearance Size：1*77.9mm
- Package Size：154*143*38mm
- Weight：180g

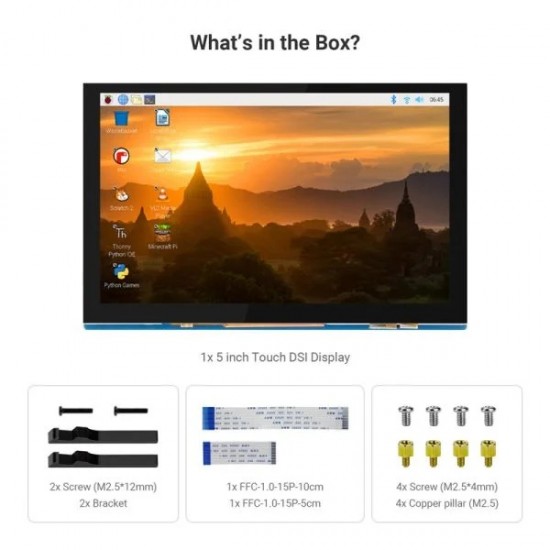

Package Includes
- 1x 5 inch Touch DSI Display
- 1x FFC-1.0-15P-10cm
- 1x FFC-1.0-15P-5cm
- 4x Screw(M2.5x4mm)
- 2x Screw(M2.5x12mm)
- 4x Copper pillar(M2.5)
