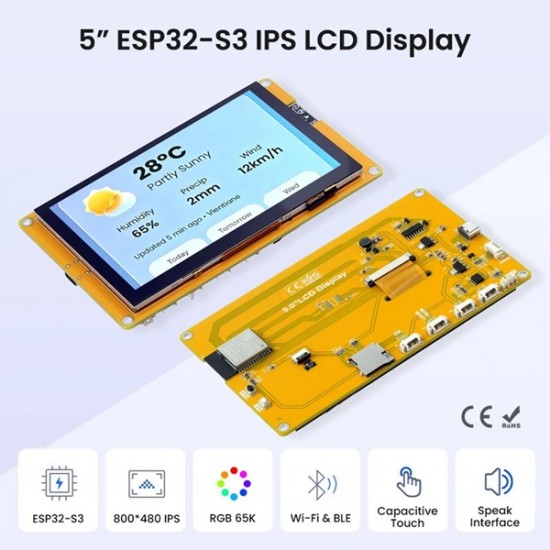

Elecrow 5inch ESP32-S3 IPS Display| 800×480 Capacitive Touchscreen | Supports WiFi/Bluetooth | With Speaker Interface
This 5-inch IPS full-view display module features an 80x480 resolution and a sensitive capacitive touchscreen, powered by an ESP32-S3 main controller. The controller utilizes an Xtensa LX7 dual-core processor with a clock speed of up to 240MHz, 8MB of PSRAM, and 16MB of Flash memory. It supports 2.4GHz Wi-Fi and Bluetooth 5.0 wireless communication, providing ample computing power for IoT and embedded HMI applications.
The module integrates a Type-C interface (supporting one-click download), a Micro TF card slot, a UART serial port, an SPI expansion interface, and a speaker interface, facilitating connection to various peripherals and sensors. The IPS screen supports RGB565 65K colors, boasts a brightness of up to 450 cd/m², and operates within a temperature range of -30~80℃, ensuring stable operation in various environments. It provides abundant sample programs and underlying driver technology support, making it an ideal choice for smart home control, industrial HMIs, and DIY interactive projects.
Feature
- ESP32-S3 Main Controller: Dual-core Xtensa LX7 processor, 240MHz clock speed, built-in 8MB PSRAM + 16MB Flash, supports 2.4GHz WiFi and Bluetooth 5.0.

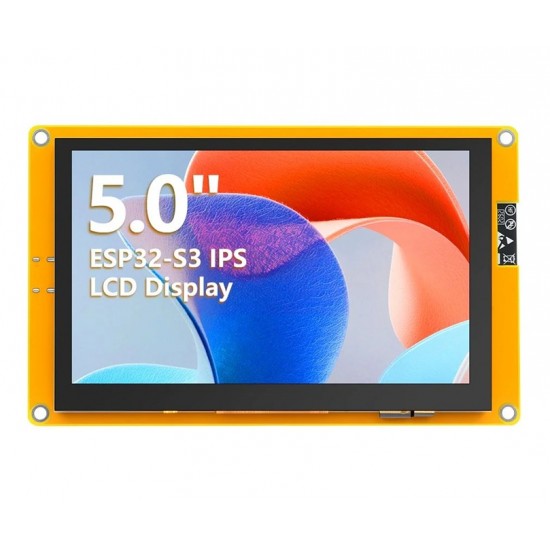

- 5-inch IPS Full-View Color Screen: 800x480 resolution, RGB565 65K color display, 450cd/m² high brightness, vibrant colors, and wide viewing angles.

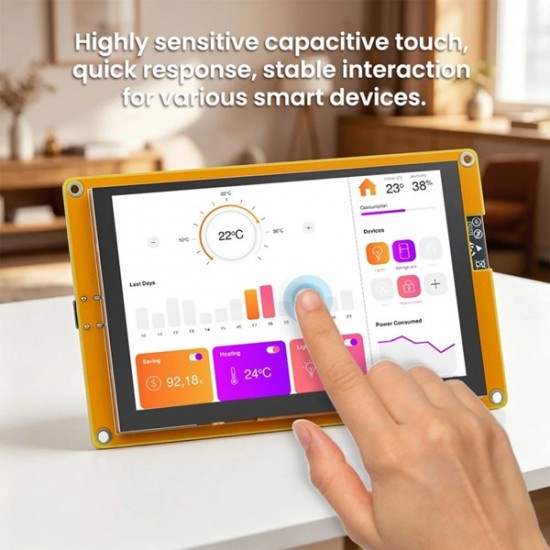

- Sensitive Capacitive Touch: Uses GT911 driver IC, I2C communication interface, fast response, supports smooth human-machine interaction.
- Audio Playback Support: Built-in 1.25mm 2P speaker interface, allowing external speakers to play audio, suitable for voice prompts and multimedia projects.
- Abundant Expansion Interfaces: Onboard Type-C (power supply/one-click download), TF card slot, UART0/1, SPI peripheral interface and multiple expansion I/O pins.
- Convenient development experience: Standard Type-C interface with integrated one-click download circuit; provides sample programs and underlying driver technology support
- Reliable quality: The module has undergone aging tests and multiple inspections, supports wide temperature range of -30~80℃, and is suitable for long-term stable operation.
Specification
- Chip: ESP32-S3 (N16R8)
- CPU: Xtensa LX7 32-bit dual-core processor
- Frequency: 240MHz(Max)
- Memory: 384KB ROM+512KB SRAM+16KB RTC SRAM+8M internal OPI PSRAM+16M external SPI Flash
- Wi-Fi: 2.4GHz, 802.11b/g/n mode
- Bluetooth: Bluetooth V5.0 BR/EDR and Bluetooth LE standard
- Screen
- Panel Size: 5.0 inch
- Panel Type: IPS
- Touch Screen Type: Capacitive touch screen
- Resolution: 800x480
- Active Area: 108(W)x64.8(H)(mm)
- Number of Pixels: 65K(RGB565)
- Display Driver IC: ST7282
- Screen interface: RGB565-16Bit
- View Angle: ALL ’CLOCK
- Brightness(TYP): 450 cd/m2
- Backlight Type: White LED
- Touch Driver IC: GT911
- Communication Interface: IIC
- Pixel Size: 0.153(H)x0.153(mm)
- Other
- Working Voltage: 5.0V
- Total current (typical value): 290mA
- Total power consumption (typical value): 1.45W
- Power interface: Type-C
- Operating temperature: -30~80(℃)
- Storage temperature: -30~80(℃)

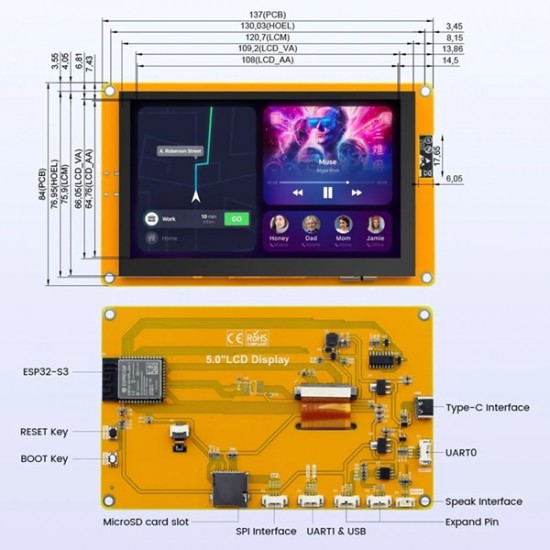

- Module Size: 137(W)x84(H)x13.75(D)
- Net Weight: 120g

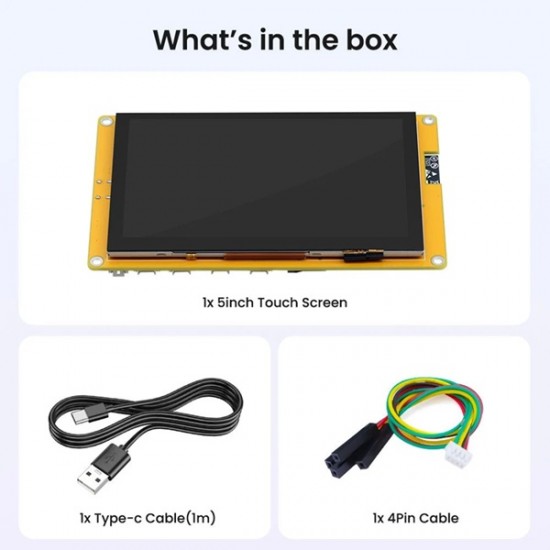

Package Includes
- 5 inch ESP32 LCD Module
- Type-C Cable
- 4Pin Cable
