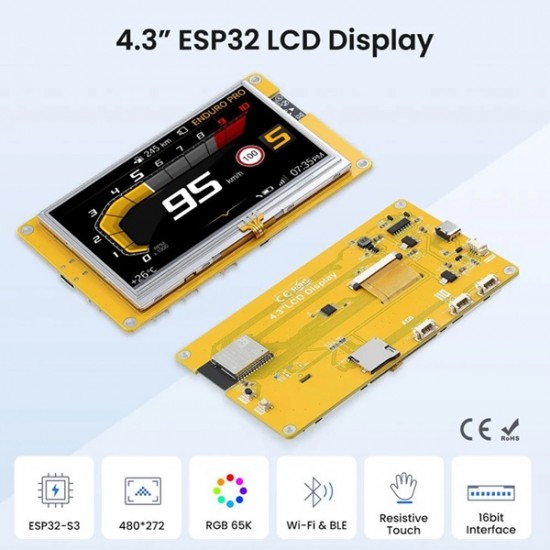

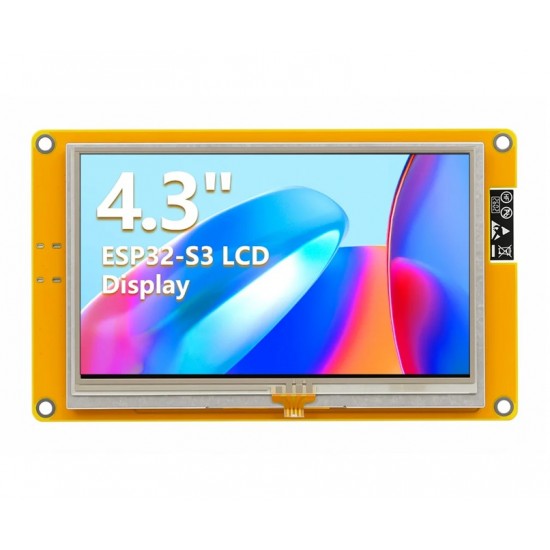

Elecrow 4.3inch ESP32-S3 Touch Display | 480*272 | Resisitive Touch | With WiFi and BLE
This 4.3-inch ESP32-S3 display development board perfectly combines a high-performance ESP32-S3 dual-core processor with a 480x272 color screen. The main controller uses an Xtensa LX7 dual-core processor with a clock speed of up to 240MHz, and includes 8MB PSRAM and 16MB Flash memory. It supports 2.4GHz Wi-Fi and Bluetooth 5.0 wireless communication, providing ample computing power and expandability for IoT and embedded HMI applications.
The screen is a 4.3-inch TN color display, supporting RGB565 color display and resistive touch, offering rich colors and convenient human-machine interaction. The board features a Type-C interface, Micro TF card slot, serial port, SPI, UART, and other expansion interfaces, with ample GPIO pins for easy connection to various peripherals. It provides a complete set of sample programs and low-level driver support. The product has undergone rigorous aging tests and supports long-term stable operation, making it an ideal choice for smart home central control, industrial control terminals, IoT nodes, and other projects.
Feature
- High-performance main control: Equipped with an ESP32-S3 dual-core processor, 240MHz clock speed, and built-in 8MB PSRAM + 16MB Flash.
- Supports 2.4GHz Wi-Fi and Bluetooth 5.0 wireless communication.

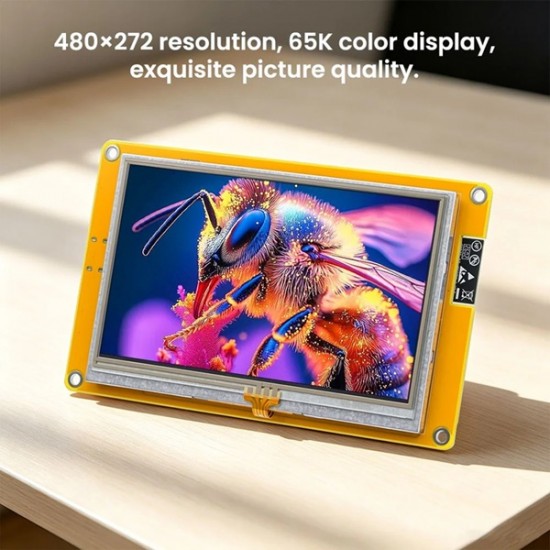

- 4.3-inch TN color screen, 480×272 resolution, 65K colors, providing delicate and rich images.
- Resistive touch interaction, equipped with an XPT2046 driver IC, supporting sensitive and accurate human-machine interaction.
- Rich expansion interfaces: Onboard Type-C, TF card slot, serial port, SPI, UART, and multiple expansion I/O ports for easy connection to various peripherals and sensors.
- Convenient development support: Standard Type-C interface for power supply and program download, providing complete sample programs and low-level driver technology support.
- Reliable quality: The module has undergone aging tests and multiple tests, supports wide operating temperature range of -20~60℃, suitable for long-term stable operation.
Specification
- Chip: ESP32-S3 (N16R8)
- CPU: Xtensa LX7 32-bit dual-core processor
- Frequency: 240MHz(Max)
- Memory
- 384KB ROM+512KB SRAM+16KB RTC SRAM+8M internal OPI
- PSRAM+16M external SPI Flash
- Wi-Fi: 2.4GHz, 802.11b/g/n mode
- Bluetooth: Bluetooth V5.0 BR/EDR and Bluetooth LE standard
- Screen
- Panel Size: 4.3 inch
- Panel Type: TN TFT
- Touch Screen Type: Resistive touch screen
- Resolution: 480x272
- Active Area: 95.04(W)x53.86(H)(mm)
- Number of Pixels: 65K(RGB565)
- Display Driver IC: ILI6485
- Screen interface: RGB565-16Bit
- View Angle: 6 ’CLOCK
- Brightness(TYP): 350 cd/m2
- Backlight Type: White LED*7
- Touch Driver IC: XPT2046
- Communication Interface: SPI
- Pixel Size: 0.153(H)x0.153(mm)
- Other
- Working Voltage: 5.0V
- Total current (typical value): 190mA
- Total power consumption (typical value): 0.95W
- Operation Temperature: -20~60(℃)
- Storage temperature: -30~70(℃)

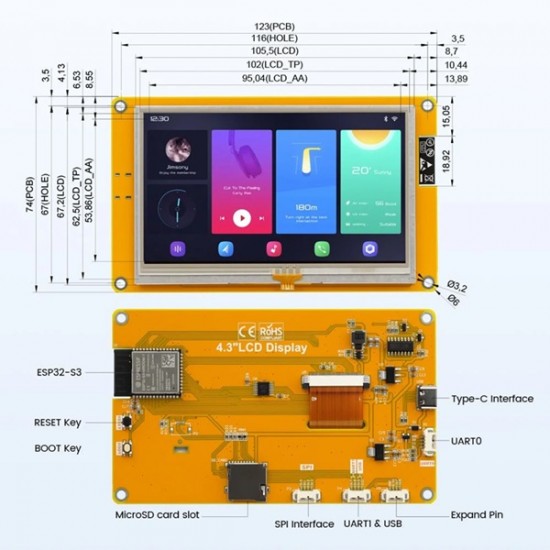

- Module Size: 123(W)x74(H)x8.7(D)
- Net Weight: 95g

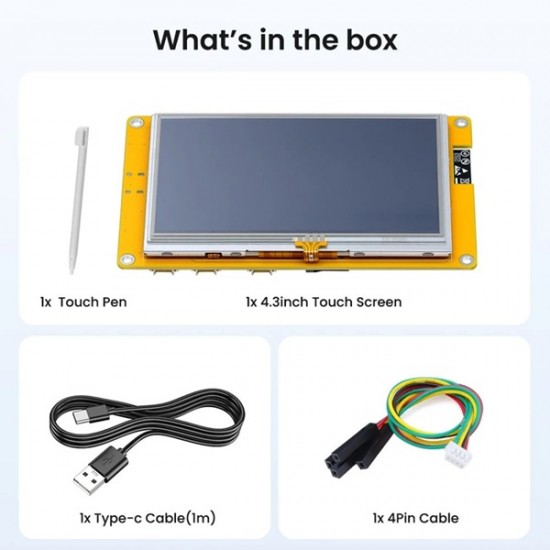

Package Includes
- 4.3 inch ESP32 LCD Module
- Type-C Cable
- 4Pin Cable
