Waveshare ESP32-C5 1.47inch LCD Display Development Board, RISC-V 32-bit Processor, 172×320 Resolution, 262K Color, Supports 2.4GHz / 5GHz Wi-Fi 6 And Bluetooth 5 (LE) - Unsolder Version

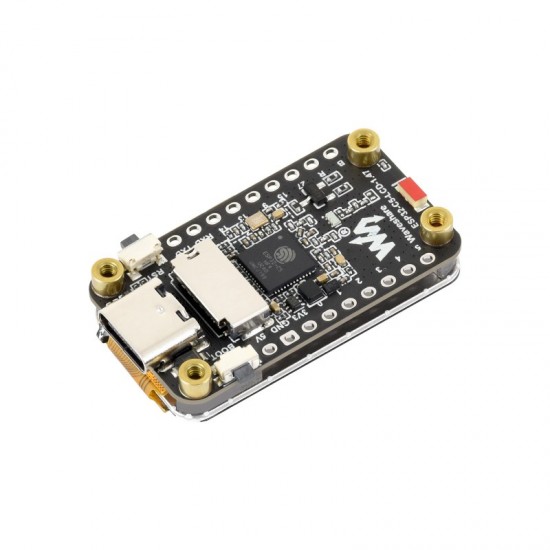

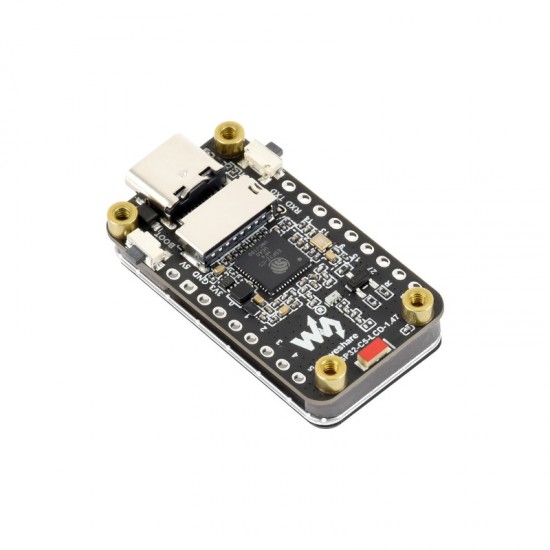

ESP32-C5-LCD-1.47 is a microcontroller development board with 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5 (LE) support, and integrates 4MB Flash. Onboard 1.47inch LCD display can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-C5 applications.

User Manual / Datasheet / Example Codes Etc.

Features

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 240MHz, and a low-power 32-bit RISC-V processor with clock speed up to 48MHz
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread 1.4) wireless communication, with superior RF performance
Built-in 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash memory
Onboard 1.47inch LCD display, 172 × 320 resolution, 262K color
Onboard USB-C port supporting native ESP32-C5 USB download, debugging, and serial communication, depending on firmware configuration
Onboard TF card slot for external TF card storage of pictures or files
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Built-in RGB LED with clear acrylic sandwich panel for cool lighting effect
Adapting multiple GPIO pins

Specifications

Interface: USB Type-C
Main Chip: ESP32-C5FH4
Flash: 4 MB
Screen Type: TFT
Screen Size: 1.47 inches
Screen Resolution: 172 × 320
Screen Interface: SPI
Screen Controller: ST7789
Touch: None
Onboard Devices: TF, WS2812 RGB LED
Broken-out Interface: 18PIN header

Package Includes

ESP32-C5-LCD-1.47 x1
Black header ×2

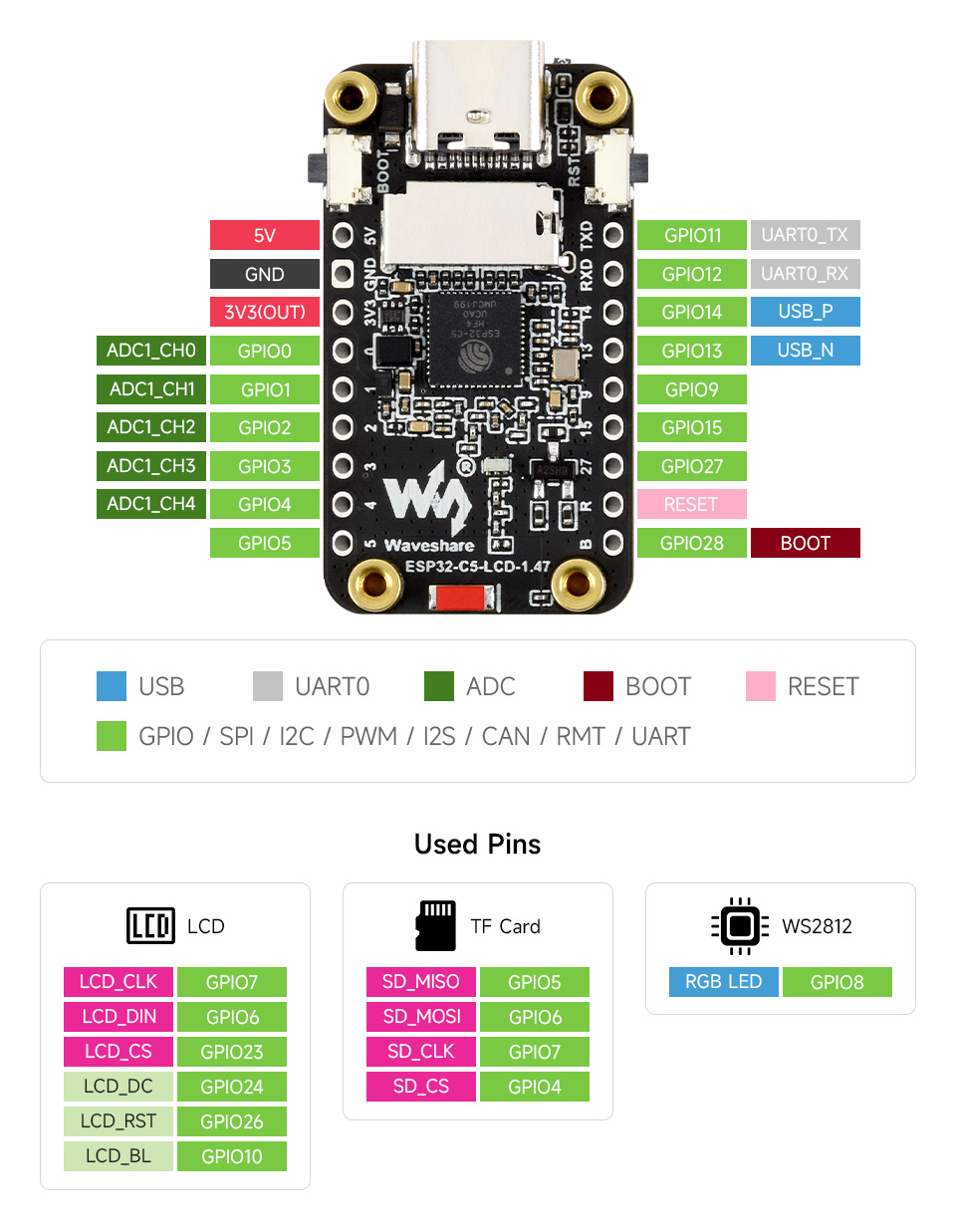

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO header

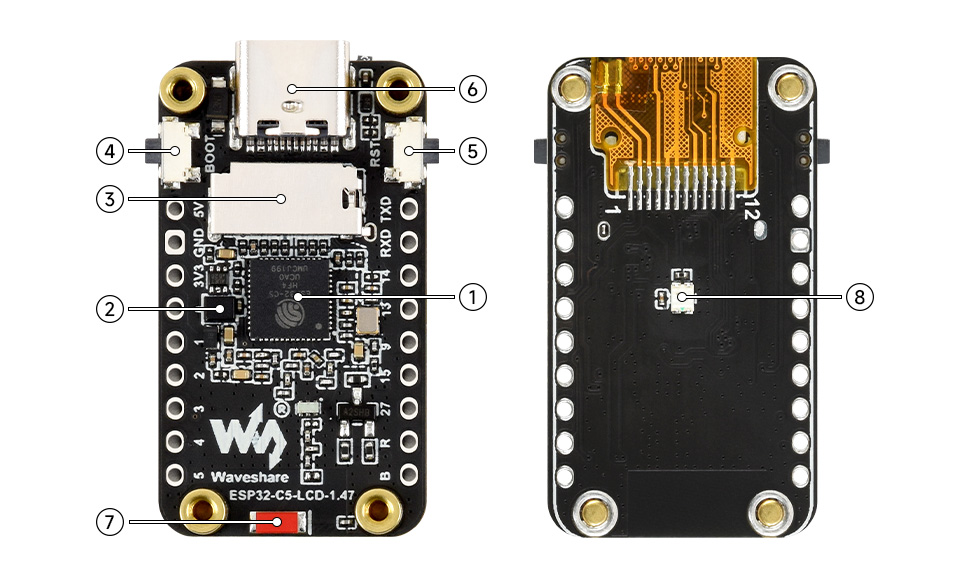

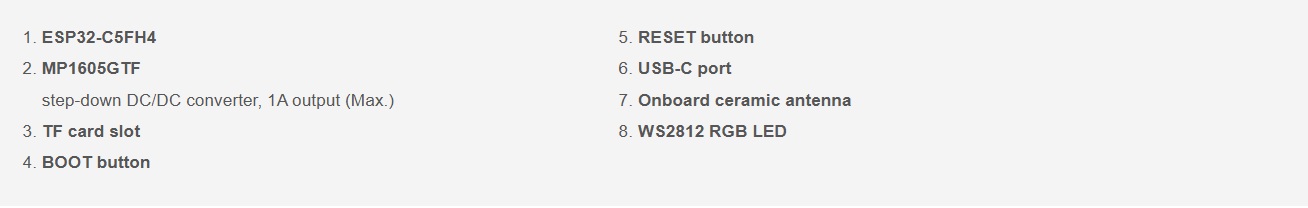

What's On Board

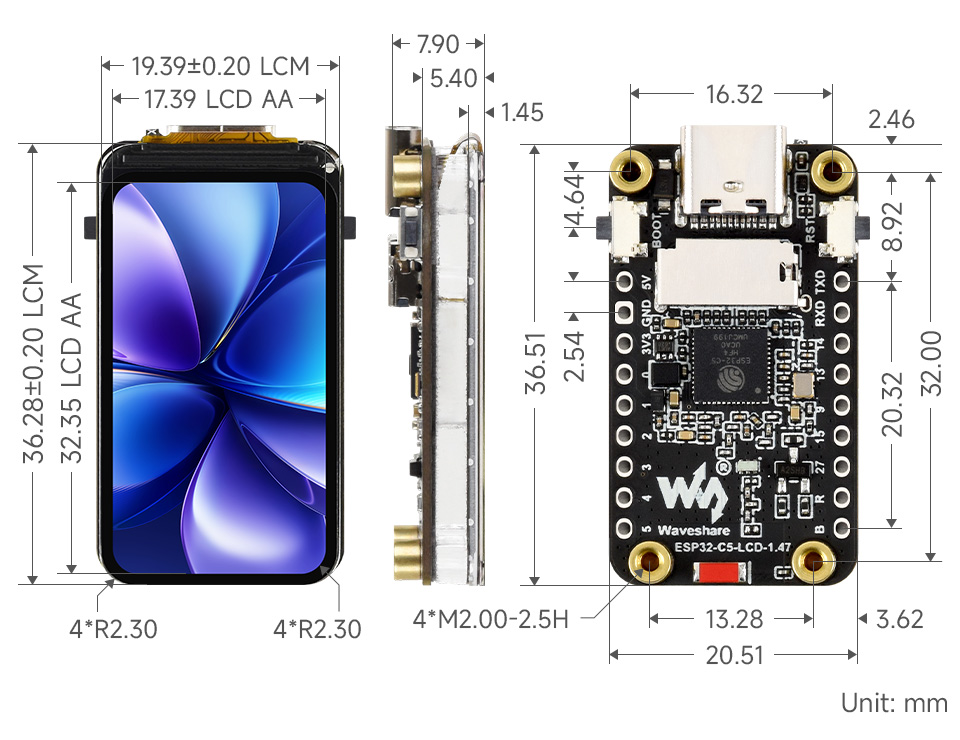

Dimensions
