Waveshare ESP32-C5 2.73inch LCD Display Development Board, 32-bit RISC-V Processor, 320 × 320 Resolution, 262K Color, Supports Dual-band 2.4GHz/5GHz Wi-Fi And Bluetooth 5 (LE) [Battery Not Included]

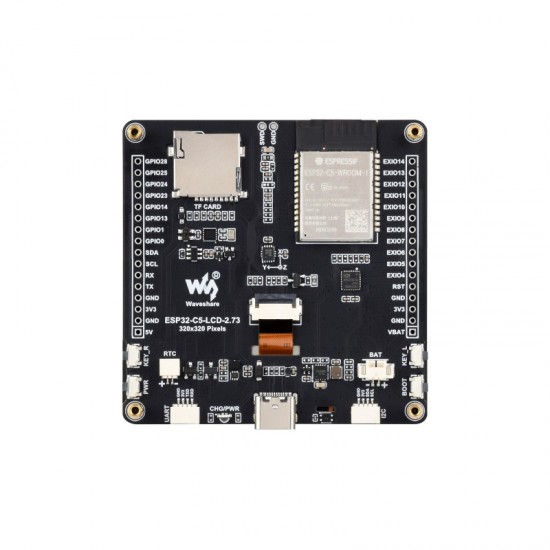

The ESP32-C5-LCD-2.73 is a low-cost, high-performance microcontroller development board designed by Waveshare. With a compact form factor, it integrates 2.73inch LCD display, three programmable buttons, TF card slot, Lithium Batt charging management chip, 6-axis IMU (3-axis accelerometer and 3-axis gyroscope), RTC chip, temperature & humidity sensor, and other peripherals. It is ideal for GUI display, button interaction, data logging, motion sensing, environmental monitoring, and Batt-powered applications, enabling rapid development and integration into end products.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with a high-performance ESP32-C5 32-bit RISC-V processor, up to 240MHz main frequency
  • Built-in 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, it meets the requirements of program execution, GUI applications, and data storage
  • Integrated 2.4GHz/5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance

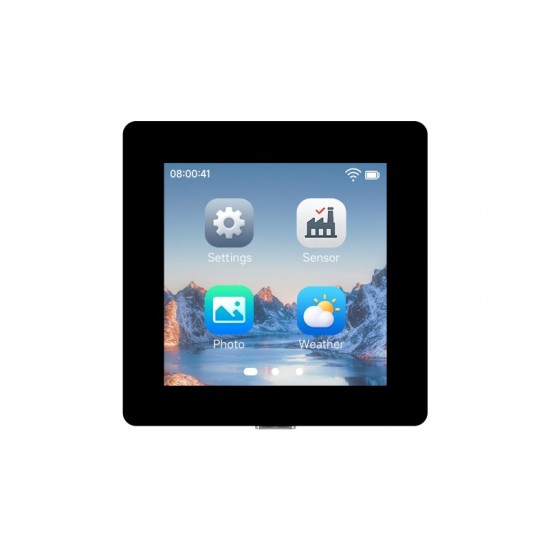

  • Onboard 2.73inch LCD display for GUI, status information, data curves, and other content display
  • Onboard three programmable buttons for menu navigation, parameter configuration, human-machine interaction, and more
  • Onboard TF card slot for external storage expansion, suitable for storing images, logs, configuration files, and collected data
  • Onboard Lithium Batt charging management chip for portable and Batt-powered supply applications
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion detection and interactive control
  • Onboard RTC chip for time recording, offline timekeeping, and other applications
  • Onboard temperature & humidity sensor for environmental data collection and monitoring
  • Features USB Type-C port for power supply, program downloading, and debugging
  • Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development
  • Adapting multiple GPIO and peripheral interfaces for connecting sensors, actuators, and other modules


Specifications

  • Display panel: LCD
  • Display Resolution: 320 × 320 pixels
  • Brightness: 620cd/m²
  • communication interface: SPI
  • Display Size: 2.73inch
  • Display Color: 262K
  • Contrast Ratio: 1200 : 1
  • Driver IC: ILI9488


Package Includes

  • ESP32-C5-LCD-2.73 host x1
  • SH1.0 4PIN cable ~150mm x2

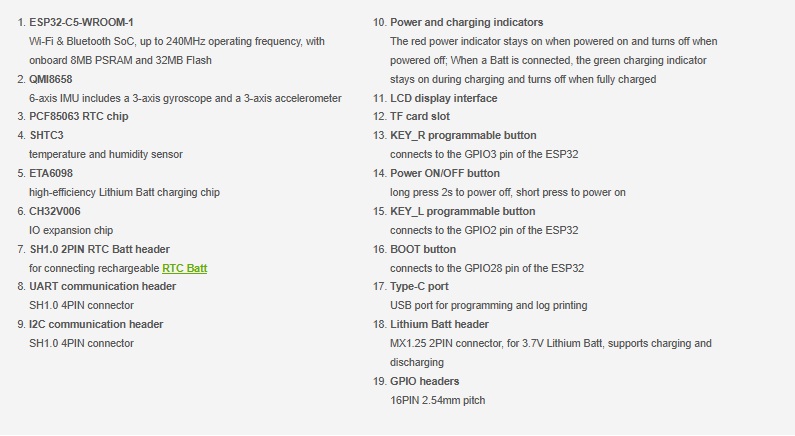

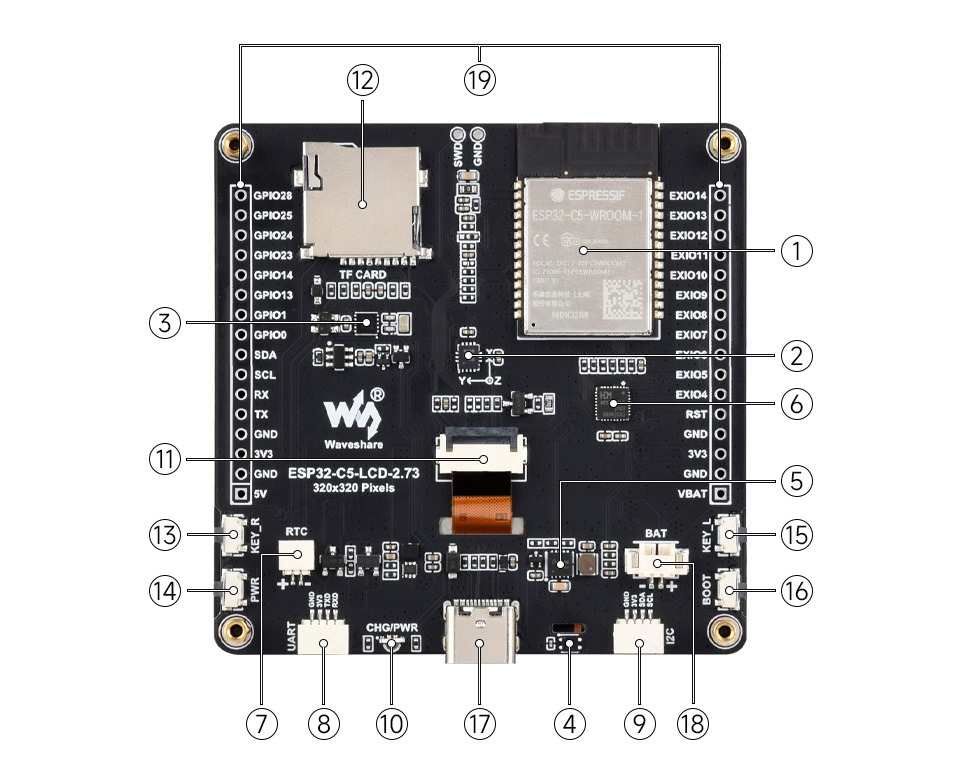

What's On Board

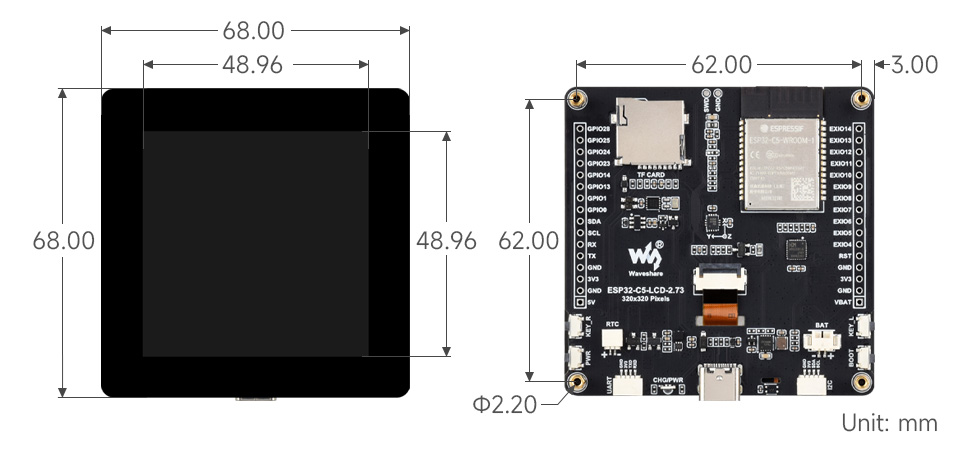

Dimensions
