Name: Elecrow CrowPanel -ESP32 Display-1.28inch 240*240 Round IPS Display Capacitive Touch SPI Screen
Brand: Elecrow
SKU: 07764
Price: 1899.00 INR
Availability: OutOfStock

Elecrow CrowPanel -ESP32 Display-1.28inch 240*240 Round IPS Display Capacitive Touch SPI Screen

Elecrow

Elecrow CrowPanel -ESP32 Display-1.28inch 240*240 Round IPS Display Capacitive Touch SPI Screen

Based on 0 reviews. - Write a review

₹1,899.00

₹1,609.32 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 16
B2B GST Credit Available

Price in reward points: 1609

Stock: 0 in Stock
SKU: 07764
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Elecrow CrowPanel -ESP32 Display-1.28inch 240*240 Round IPS Display Capacitive Touch SPI Screen

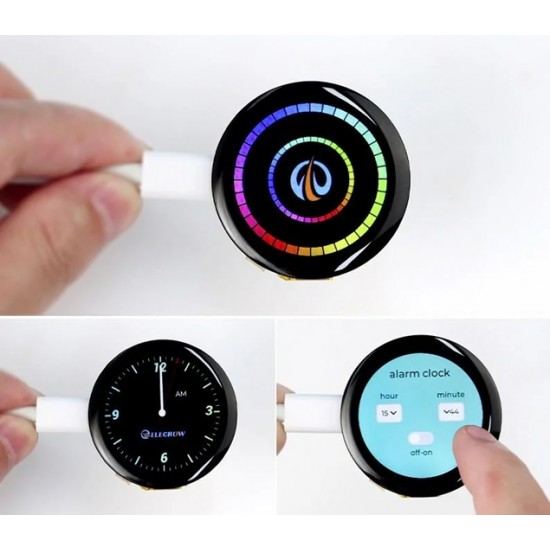

This 1.28-inch round screen has a resolution of 240*240, an IPS screen, and a 178° viewing angle, which allows you to enjoy more vivid and realistic images at any angle. It supports capacitive touch and is responsive; it has custom buttons, REST, and BOOST buttons, and the UART serial port can upgrade the firmware. It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library. It can design the UI interface by yourself, which is an ideal platform for DIY projects.

User Manual / Datasheet / Example Codes Etc.

Features

ESP32-C3 master control, equipped with a 32-bit dual-core chip, a highest clock frequency reaches 160 MHz.
IPS screen, 178° visual range, and more vivid images.
Capacitive touch, fast response.
With custom buttons and REST and BOOT buttons, the UART serial port supports power supply and firmware upgrades.
Supports multiple development environments, Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library.

Specifications

Main Chip: ESP32-C3
Processor: 32-bit RISC-V single-core processor, up to 160 MHz
Memory

384 KB ROM
400 KB SRAM (16 KB for cache)
8 KB SRAM in RTC

Size: 1.28 inch
Resolution: 240*240
Signal Interface: SPI
Touch Type: Capacitive Touch
Panel Type: TFT LCD, IPS Panel
Color Depth: 262K
Brightness: 350 cd/m²
Viewing Angle: 178°
Button: Rest Butto, Boot Button, Custom Button
Interface: Type-C Interface, Battery Interface
Encoder: With Button Function, Without Pin (Pin Size: 0.8mm*0.8mm)
Operation Power

Module: DC5V
Main Chip: 3.3V

Active Area: 32.51*32.51mm
Dimensions: 42*42*9.8mm
Net Weight: 15g

Package Includes

1x ESP32 Display-1.28 inch Round Display (With Battery)
1x USB-A to USB-C Cable
