Name: ESP32-S3 AI Smart Speaker Development Board, Onboard Dual Digital Microphone Array, Supports Noise Reduction And Echo Cancellation, Surround RGB Lighting, ESP32 Audio - With Battery
Brand: WaveShare Electronics
SKU: 32184
Price: 2360.00 INR
Availability: OutOfStock

ESP32-S3 AI Smart Speaker Development Board, Onboard Dual Digital Microphone Array, Supports Noise Reduction And Echo Cancellation, Surround RGB Lighting, ESP32 Audio - With Battery

WaveShare Electronics

ESP32-S3 AI Smart Speaker Development Board, Onboard Dual Digital Microphone Array, Supports Noise Reduction And Echo Cancellation, Surround RGB Lighting, ESP32 Audio - With Battery

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,360.00

₹2,000.00 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 16
B2B GST Credit Available

Price in reward points: 1610

Stock: 0 in Stock
SKU: 32184
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ESP32-S3 AI Smart Speaker Development Board, Onboard Dual Digital Microphone Array, Supports Noise Reduction And Echo Cancellation, Surround RGB Lighting, ESP32 Audio - With 3.7V MX1.25 Lithium Battery

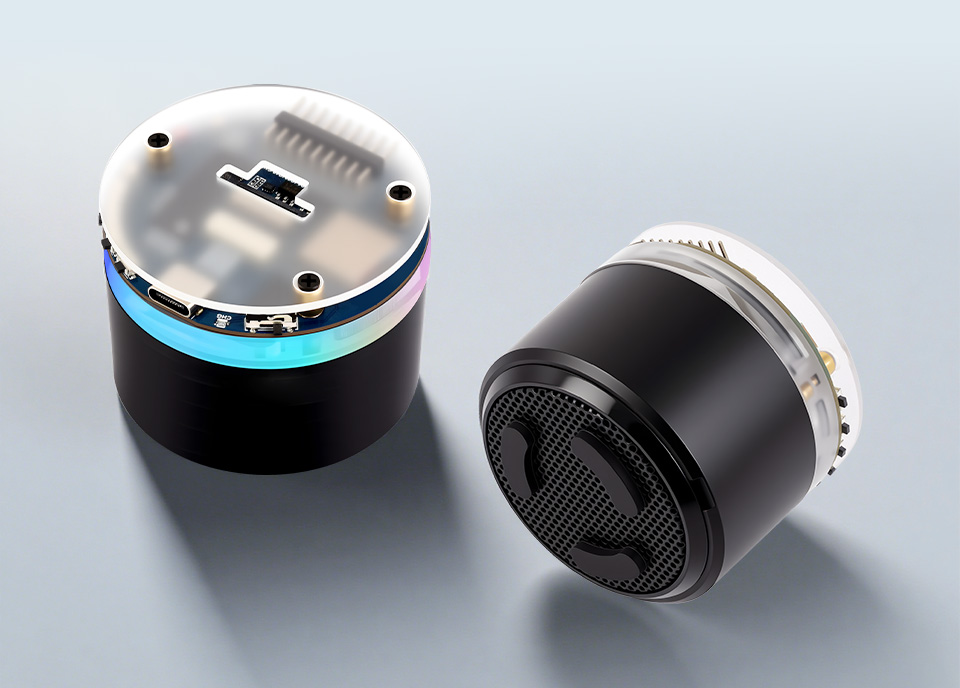

The ESP32-S3-AUDIO-Board is based on the ESP32-S3 with 2.4GHz Wi-Fi and Bluetooth 5 (LE) support, integrates high-capacity Flash and PSRAM, built-in dual microphones, speaker, surround RGB LEDs, onboard multiple interfaces. It enables the rapid development of smart devices such as AI speakers, voice interaction systems, HMI screens and camera applications.

User Manual / Datasheet / Example Codes Etc.

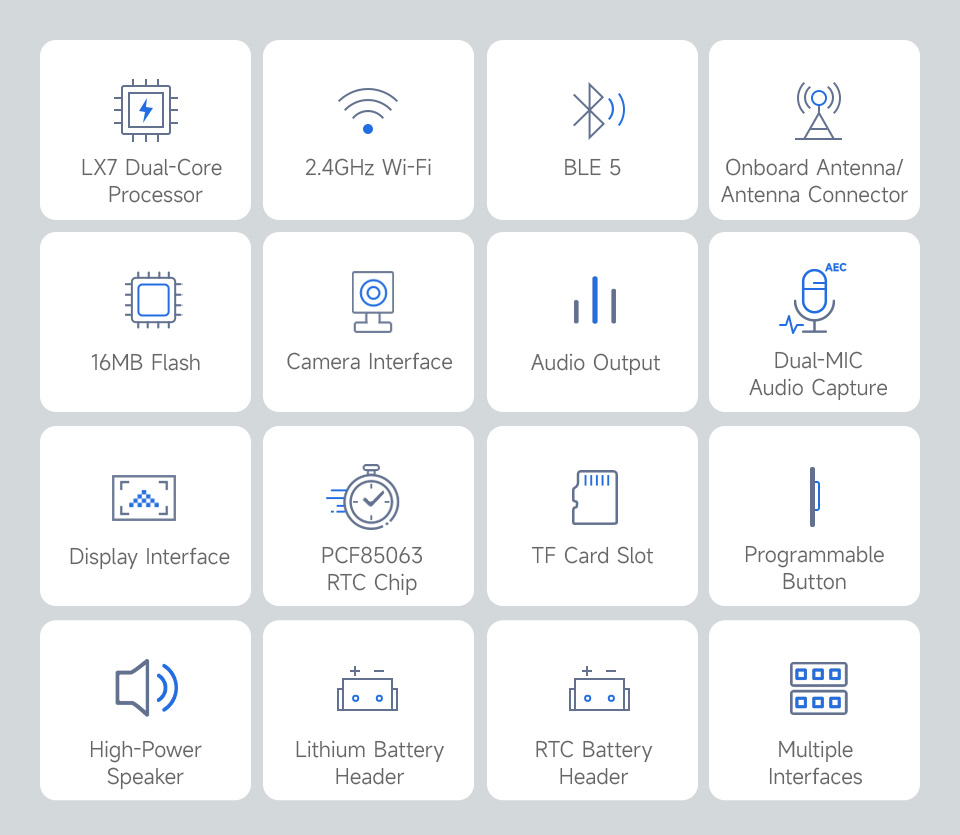

Features

High-performance MCU: Adopts ESP32-S3R8 module with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Wireless Connectivity: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Storage Resources: Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, and external 16MB Flash memory
Voice Interaction: Dual microphone array with noise reduction and echo cancellation, suitable for accurate speech recognition and near/far-field wake-up
Clock Management: Integrated PCF85063 RTC chip, supports power-off time retention for alarm, scheduled task, and wake-up functions
Colorful Lighting Effects: Onboard 7x surround RGB LEDs, programmable for a variety of dynamic effects
HMI Interfaces: Multiple reserved buttons and battery switch for customized function development
Expansion Interfaces:

SPI LCD display interface (FPC connector / pin header)
DVP camera interface (24pin connector)
USB, I2C, and some I/O pins (compatible with display interface I/O pins)

Multimedia Features: Onboard audio decoding chip, dual microphones and speaker header
Storage Expansion: Onboard TF card slot for storing audio files, etc.
Power Management: Built-in battery recharge management module, supports multiple power modes and low-power applications

Package Includes

ESP32-S3-AUDIO-Board x1
Lithium battery x1

Onboard Audio Input/Output

Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with the offline voice model we provided to realize device control via customizable shortcut commands

Interfaces Definition

What's On Board

Dimensions
