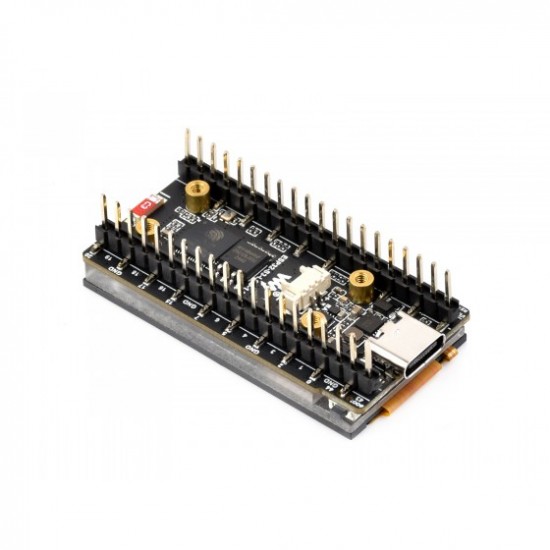

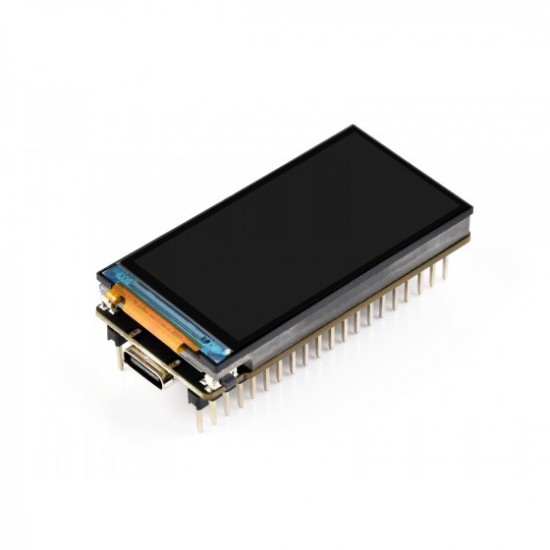

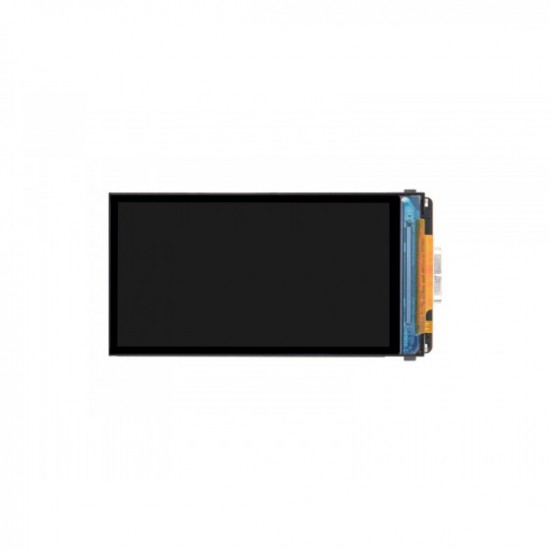

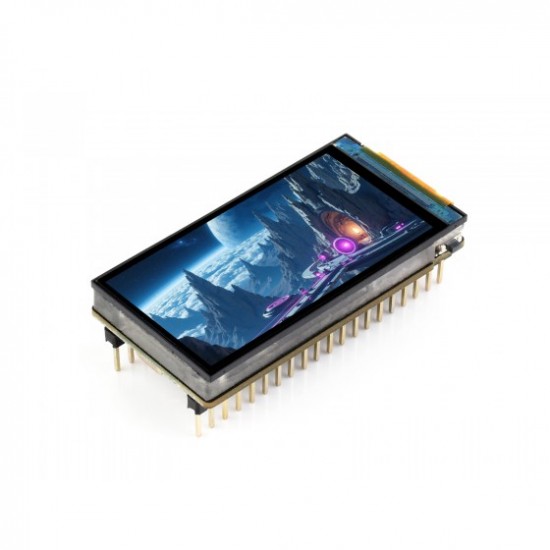

Name: ESP32-S3 1.9inch (No Touch) Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Supports 90° Hardware Rotation, ESP32 With Display
Brand: WaveShare Electronics
SKU: 30995
Price: 1638.00 INR
Availability: InStock

ESP32-S3 1.9inch (No Touch) Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Supports 90° Hardware Rotation, ESP32 With Display

WaveShare Electronics

ESP32-S3 1.9inch (No Touch) Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Supports 90° Hardware Rotation, ESP32 With Display

Based on 0 reviews. - Write a review

₹1,638.00

₹1,388.14 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 14
B2B GST Credit Available

Price in reward points: 1388

Stock: 4 in Stock
SKU: 30995
Delivery Time
Bulk & B2B RFQ

Add to Cart

Buy Now

Plan to Buy Later ? Add to Wish List

ESP32-S3 1.9inch Display Development Board, 170×320 Pixels, 262K Color, 32-bit LX7 Dual-core Processor, Supports 90° Hardware Rotation, ESP32 With Display, No Touch

This product adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 support, integrates 8MB Flash. Onboard 1.9inch LCD display which can smoothly run GUI programs such as LVGL. Onboard QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc. Compatible with Pico header, offering strong compatibility and expandability. It is suitable for the quick development of the HMI and other ESP32-S3 applications.

Features

Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna
Built-in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, integrates 8MB Flash
Onboard 1.9inch LCD display, 170 × 320 resolution, 262K color, delivering clear and vivid color image display
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
Onboard TF card slot for external TF card storage of pictures or files
Compatible with Pico header, onboard multiple peripheral interfaces, offering strong compatibility and expandability

Package Contents

ESP32-S3-LCD-1.9 x1

Resources

User Manual / Datasheet / Example Codes Etc.

Specifications

Display Panel	LCD	Display Size	1.9 inch
Resolution	170×320	Display Colors	262K
Brightness	500 cd/㎡	Contrast Ratio	900:1
Communication Interface	SPI	Driver IC	ST7789V2
Touch	Supported	Touch IC	CST816

Onboard Peripherals

ESP32-S3R8 dual-core processor, up to 240MHz operating frequency
W25Q128 16MB Flash
MX1.25 battery header MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
RESET button
USB Type-C port
for power input and data transmission
TF card slot (on the back side)
Supports TF card for extended storage
Charge indicator
Lithium battery charge indicator, lights up when charging, off when fully charged

BOOT button for downloading program or entering boot mode
WS2812 RGB LED (for non-touch version only)
for colorful lighting effects, on the back side of the PCB
QMI8658 sensor (on the back side)
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
IPEX1 connector (for touch version only)
Switching to use external antenna via resoldering an onboard resistor
Onboard ceramic antenna
Onboard antenna design for space saving and signal stability

Pinouts

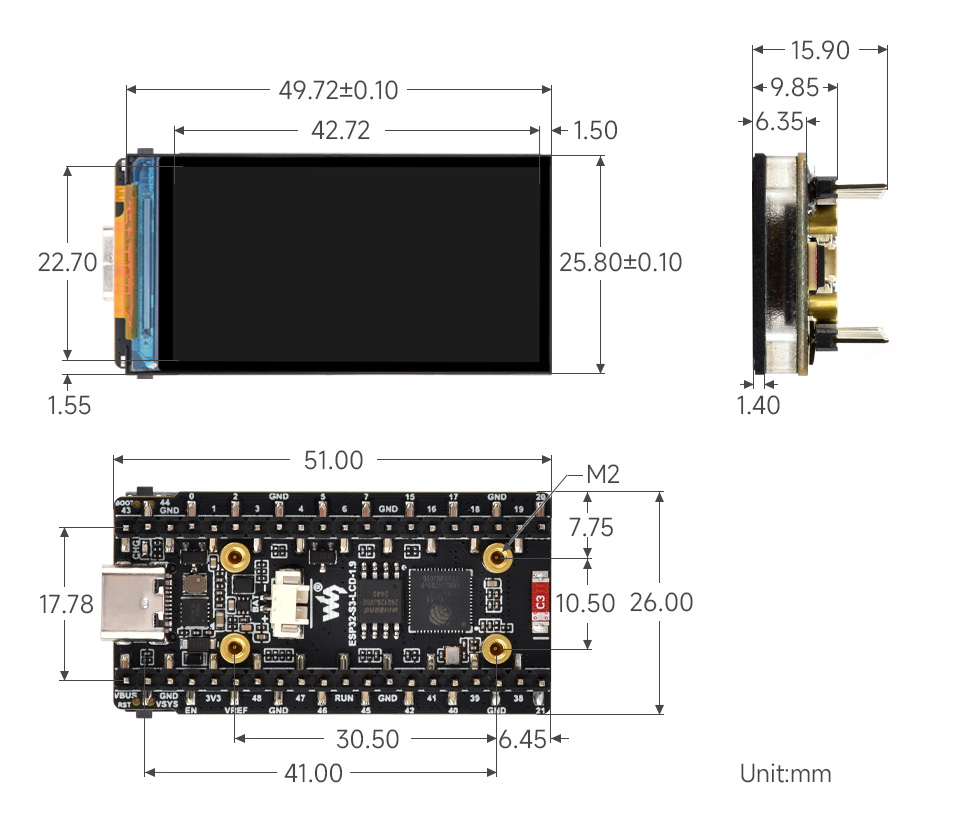

Dimensions
