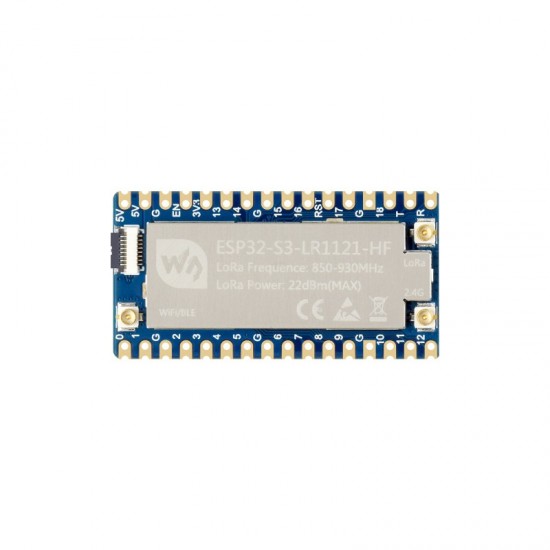

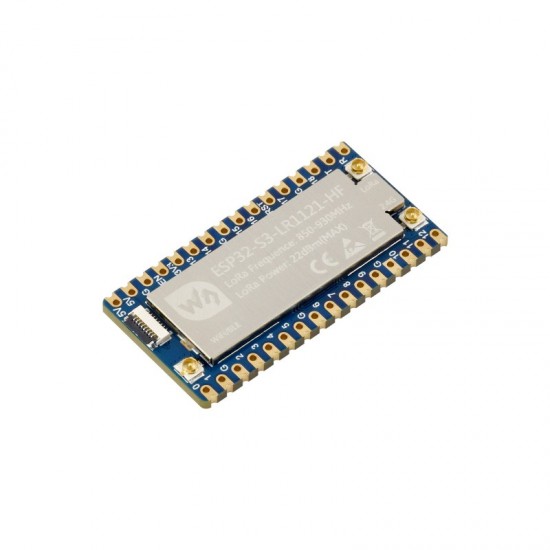

ESP32-S3 LoRa HF Development Board, 850 ~ 930MHz Frequency, Integrates LR1121 Third-generation RF Chip, Supports 2.4GHz LoRa Wireless Communication

The ESP32-S3 LoRa HF Development Board is a powerful and versatile wireless solution designed for long-range, low-power IoT applications. Operating in the 850–930MHz high-frequency band, this board integrates the advanced LR1121 third-generation RF chip, enabling reliable Sub-GHz and 2.4GHz LoRa® communication.

Powered by the ESP32-S3 dual-core processor, it offers robust performance along with built-in Wi-Fi and Bluetooth LE capabilities, making it ideal for smart devices, industrial monitoring, and wireless sensor networks. The LR1121 chip enhances connectivity by supporting multi-band communication, improved signal sensitivity, and efficient power consumption.


User Manual / Datasheet / Example Codes Etc.


Features

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) to meet diverse wireless needs
  • Built in 512KB Static RAM and 384KB ROM, with onboard 4MB Flash and 2MB PSRAM
  • Castellated module allows soldering direct to carrier boards
  • Onboard rich peripheral interfaces including 4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, and 2 × ADC, etc.
  • Based on the third-generation low-power LoRa transceiver LR1121
  • Supports Sub-GHz (150MHz ~ 960MHz), S-band (1.9GHz ~ 2.1GHz), and 2.4GHz ISM frequency bands
  • Connects to the cloud via LoRa or LoRaWAN protocol through a gateway, enabling low-power wide-area networking (LPWAN)
  • Supports LoRa, (G)FSK, and LR-FHSS modulation schemes, compatible with SX126X/SX127X series for easy product upgrades
  • Integrates AES-128 encryption engine to enhance data security
  • Onboard TCXO crystal oscillator ensures frequency stability under extreme temperature conditions
  • Suitable for IoT applications such as industrial telemetry, smart home, environmental monitoring, and remote data acquisition
  • Comes with online resources and manual (example in C) for easy development and rapid application


Specifications

  • Version: ESP32-S3-LR1121-LF
  • RF chip: LR1121
  • Frequency range
    • LF:  850 ~ 930MHz
    • 2000MHz ~ 2500MHz
  • emitting power
    • -9dBm ~ 22dBm at Sub-GHz band
    • -18dBm ~ 13dBm at ISM band
  • emitting current
    • 111.2mA at 22dBm
    • 49.6mA at 13dBm
  • Modulation: LoRa / (G)FSK / LR-FHSS
  • Connector: castellated edge / solder holes, pitch 2.54mm
  • Data rate
    • LoRa: 0.091Kbps ~ 62.5Kbps
    • (G)FSK: 0.6Kbps ~ 300Kbps
  • Typical Range
    • Sub-GHz band: 5KM
    • ISM band: 2KM
  • Spreadind factor: SF5 ~ SF12
  • Receiver sensitivity
    • -127dBm at Sub-GHz band, SF=7, CR4_5, BWL=125KHz
    • -111dBm at ISM band, SF=7, CR4_5, BWL=800KHz
  • Operating temperature: -40℃ ~ 85℃
  • Dimensions: 21.00 × 41.00 (mm)


Package Includes

  • ESP32-S3-LR1121-LF x1
  • IPEX 1 to SMA adapter cable x1
  • 2DB SMA antenna x1
  • 2.4G antenna x2


21 × multi-function GPIO pins

The ESP32 series allows flexible mapping of peripheral signals such as UART, SPI, I2C, and PWM to almost any GPIO pin via the GPIO matrix


Dimensions
