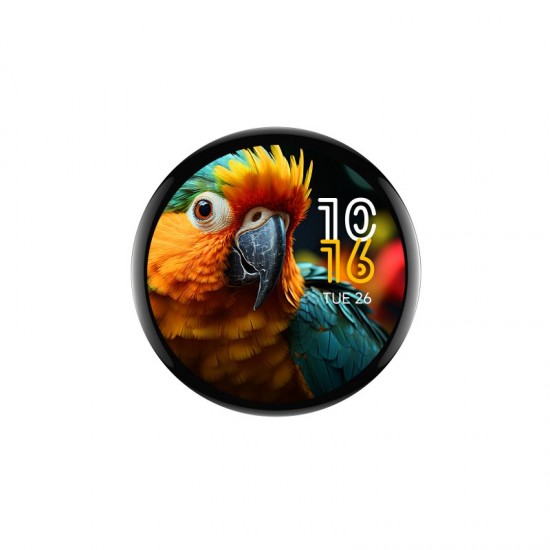

ESP32-S3 1.75inch AMOLED Round Touch Display Development Board, 32-bit LX7 Dual-core Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Digital Microphone Array, ESP32 With Display

The ESP32-S3-Touch-AMOLED-1.75 is a high-performance, highly integrated MCU board designed by Waveshare. It is compact in size, onboard 1.75inch AMOLED capacitive touch display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC chip, low power audio codec, echo cancellation circuit, and so on, which makes it easy for you to develop and integrate into the products quickly.

Features

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 1.75inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
• Built-in CO5300 display driver and CST9217 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
• Equipped with dual digital microphones array for audio algorithms such as noise reduction and echo cancellation, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
• Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supply
• Onboard PWR and BOOT programmable buttons for easy custom function development
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard 8PIN 2.54mm header adapting 3 × GPIO and 1 × UART, and reserved pads of I2C and 3 × expanded IO interfaces, for connecting peripherals and debugging
• Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
• Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
• Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
