Elecrow CrowPanel-ESP32 Terminal 3.5inch 320x480 SPI Capacitive Touch Display with OV2640 Camera

Elecrow CrowPanel-ESP32 Terminal 3.5inch 320x480 SPI Capacitive Touch Display with OV2640 Camera

This handheld ESP32 terminal is based on the ESP32 controller, equipped with a powerful ESP32-S3 chip, and supports 2.4GHz Wi-Fi and Bluetooth-compatible 5 (LE), providing more powerful computing and processing capabilities for IoT terminal applications. It is suitable for various scenarios, such as industrial IoT control terminals, smart agricultural terminals, personal smart home monitoring terminals, and personal DIY projects.

Thanks to the scalability of the ESP32-S3 module, it can lead to various interfaces. This ESP32 touchscreen not only has Crowtail's digital port, analog port, UART, and IIC interface, but also integrates a MEMS microphone, camera interface, and buzzer function. It supports ESP-IDF and Arduino IDE development and is compatible with Micropython/Arduino. It also supports LVGL, which is the most popular free and open-source embedded graphics library to create beautiful UIs for any MCU, MPU, and display type. We also support openHASP. With the 2M pixel camera, it can easily realize face/object/scene recognition and provide more creativity in cutting-edge projects such as speech recognition/voice control.

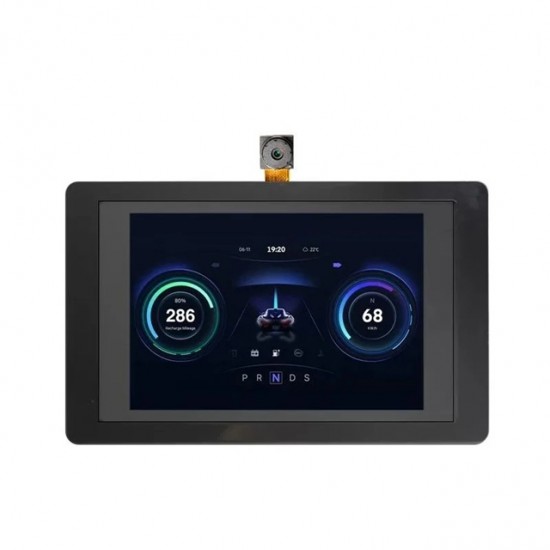

The equipped screen adopts a SPI serial screen with 320x480 resolution, and the size of 3.5 inches is the best choice as a handheld/pocket terminal. The frame rate of the screen is up to 20FPS, which is sufficient for most application scenarios. If you have higher requirements for the screen, you can try this RGB touch screen.

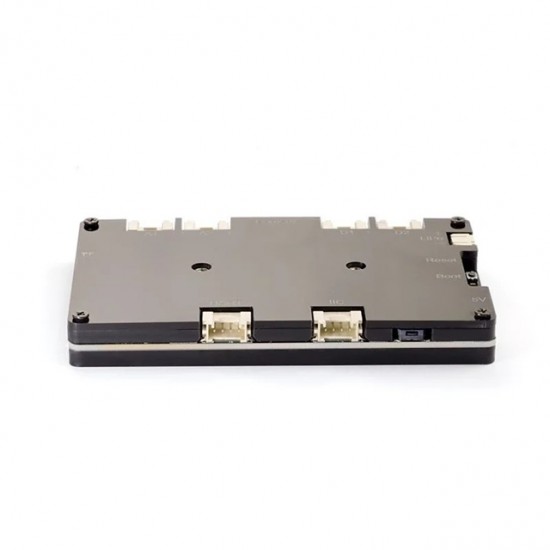

The whole terminal is surrounded by a perfect acrylic shell, which makes the whole product look more beautiful. At the same time, it can also be fixed in other ways. With two M3 screw mounting holes, you can mount it on the wall or PLC rail.

Its compatibility with the Crowtail system can give your project an easier implementation method and the convenience of one-stop shopping.

User Manual / Datasheet / Example Codes Etc.

Features

• Integrated ESP32-S3 module, which supports 2.4 GHz Wi-Fi and Bluetooth-compatible 5 (LE)
• 3.5 inch TFT 320*480 resolution touch LCD display with 2M Pixel OV2640 camera
• Support USB, UART, SPI, I2C, PWM, and I2S communication protocols
• Supports 1T1R mode, data rate up to 150 Mbps, Wireless Multimedia (WMM)
• Compatible with Arduino/LVGL/Esphome-homeassistant/PlatformIO/Micropython
• Supports hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)

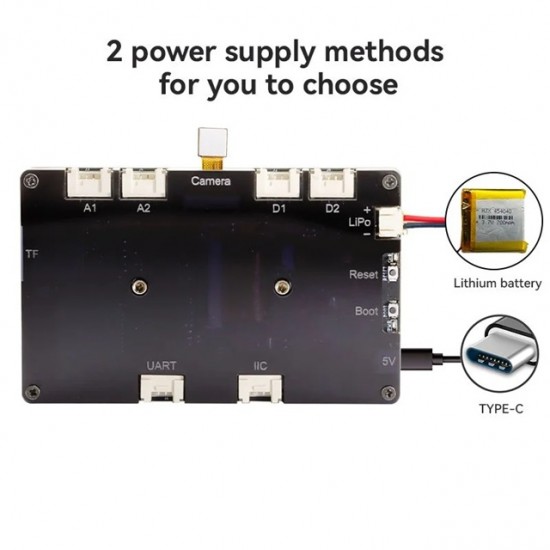

• Support TYPE-C USB power supply and polymer lithium battery power supply with 6 Crowtail interfaces (4P 2.0 connector), plug and play with various Crowtail sensors

Specifications

• Main Chip
• Core Processor: Xtensa® 32-bit LX7
• Memory: 16MB Flash 8MB PSRAM
• Maximum Speed: 240Mhz
• Wi-Fi: 802.11 a/b/g/n 1x1,2.4 GHz band supports 20 and 40 MHz bandwidth, Supports Station, SoftAP, and SoftAP + Station mixed modes.
• Bluetooth-compatible: BLE 5.0
• LCD Screen
• Resolution: 320*480
• Display Size: 3.5 inch
• Drive IC: ILI9488
• Touch: Capacitive Touch
• Interface: SPI Interface
• Other Modules
• Camera: OV2640, 2M Pixel
• Microphone: MEMS Microphone
• SD Card: Onboard SD Card Slot
• Interface
• 1x USB C
• 1x UART
• 1x I2C
• 2x Analog
• 2x Digital
• Button: RESET Button
• Press this button to reset the system.: BOOT Button
• Hold down the Boot button and press the EN button to initiate firmware download mode. Users can download firmware through the serial port.
• Operating Environment
• Operating Voltage: USB DC5V, lithium battery 3.7V
• Operating Current: Average current 83mA
• Operating Temperature: -10°C ~ 65°C
• LiPo Battery Interface: PH 2.0
• Active Area: 73.63(L)*49.79mm(W)
• Dimension Size: 106(L)x66mm(W)*13mm(H)

Package Includes

• 1x 3.5 inch ESP32 SPI Display with camera (included Acrylic Shell)
• 1x USB-C Cable

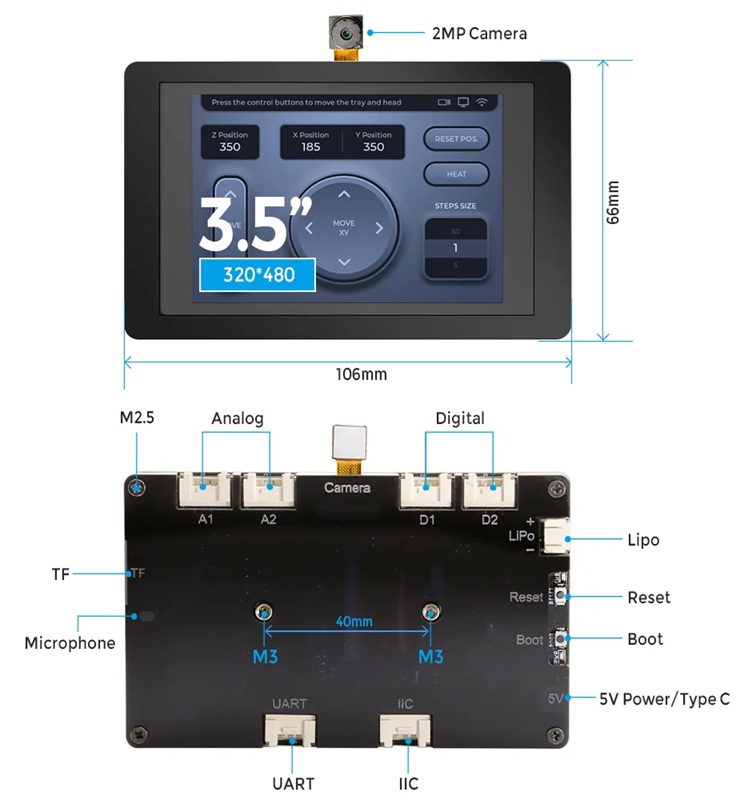

Hardware Overview
