G-NiceRF LoRa1276F30 868MHz SX1276 500mW Long Range LoRa Wireless LoRa Module
₹1,675.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 14
B2B GST Credit Available
Price in reward points: 1419
- Stock: 0 in Stock
- SKU: 08503
- Delivery Time
- Bulk & B2B RFQ

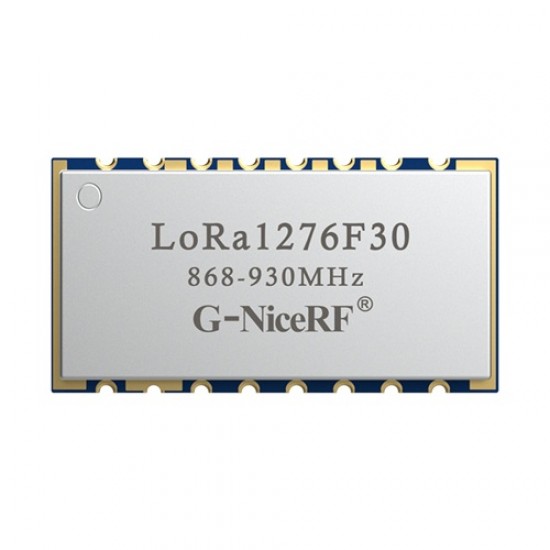

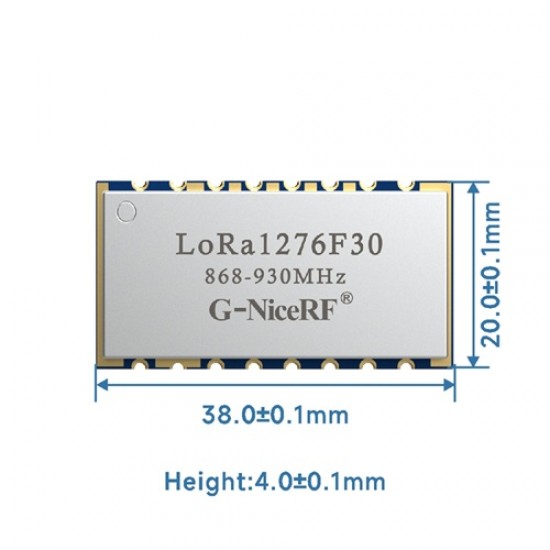

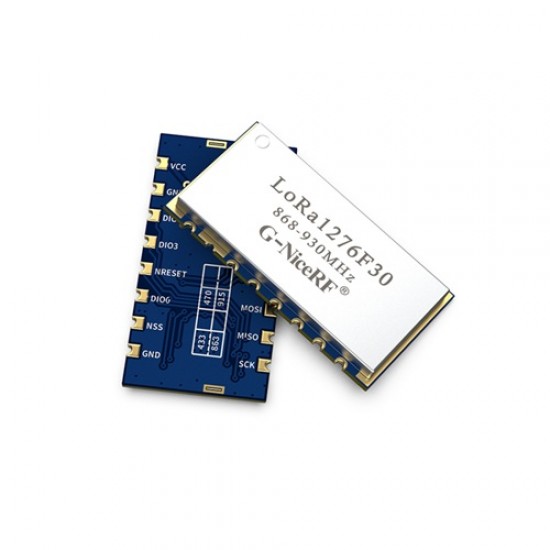

G-NiceRF LoRa1276F30 868MHz SX1276 500mW Long Range LoRa Wireless LoRa Module
LoRa1276F30 is a 500mW high power LoRa module, which integrates Semtech RF transceiver chip SX1276. It adopts LoRa Spread Spectrum modulation frequency hopping technique. The features of long distance and high sensitivity (-139 dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance.
The LoRa module LoRa1276F30 strictly uses lead-free process for production and testing, and meets RoHS and REACH standards.
Features
- Frequency Range: 868/915MHz
- Sensitivity up to -139 dBm
- Maximum output power: 27dBm
- 13mA@receiver mode
- Sleep current <10uA
- Data transfer rate：@FSK,1.2-300kbps @LoRa，0.018-37.5kbps
- LoRa ,MSK,GFSK Modulation mode
- 127 dB Dynamic Range RSSI
- Packet engine up to 256 bytes with FiFo and CRC
- Hopping frequency
- Operating Temperature Range：-40 ~ + 85 °C
- Built-in temperature sensor and low battery indicator
- 3.0-6.5 V Power supply
- Excellent blocking immunity
Specifications

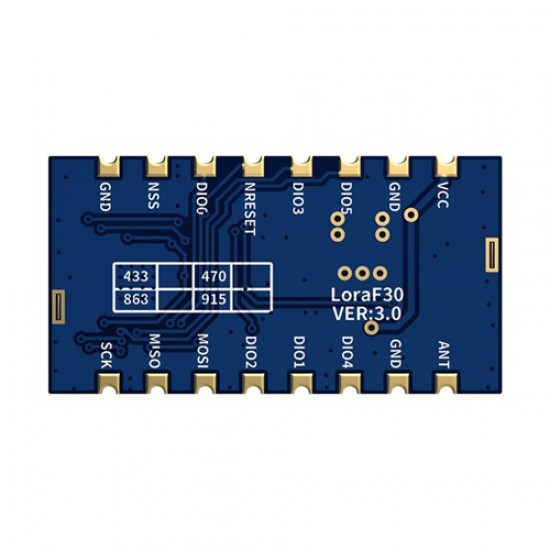

- Interface: SPI
- Chip: SX1276
- Frequency: 868MHz,915MHz
- Modulation; LoRa
- Output Power: 500mW
Applications
- Remote control
- Remote meter reading
- Home security alarm and remote keyless entry
- Industrial control
- Home automation remote sensing
- Individual data records
- Toys control
- Sensor network
- Tire pressure monitoring
- Health monitoring
- Wireless PC peripherals
- Tag reading and writing
Package Includes
- 1x LoRa1276F30 868MHz SX1276 500mW Long Range LoRa Wireless LoRa Module
