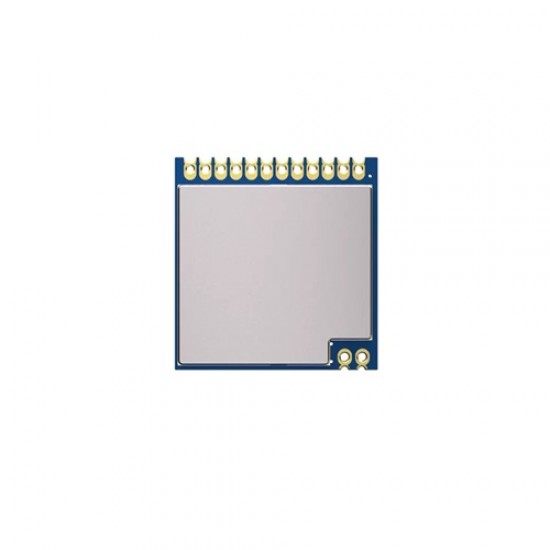

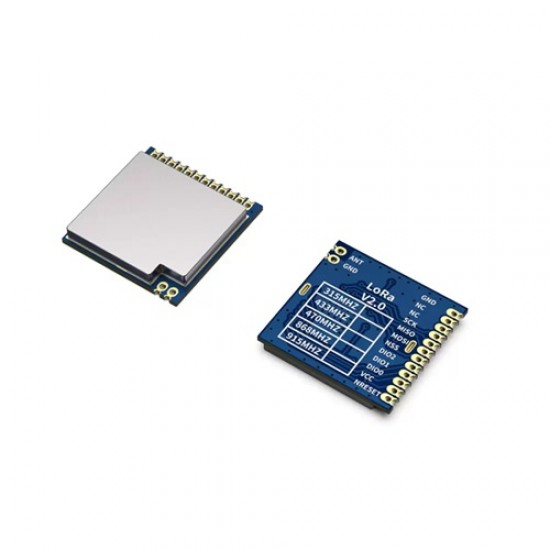

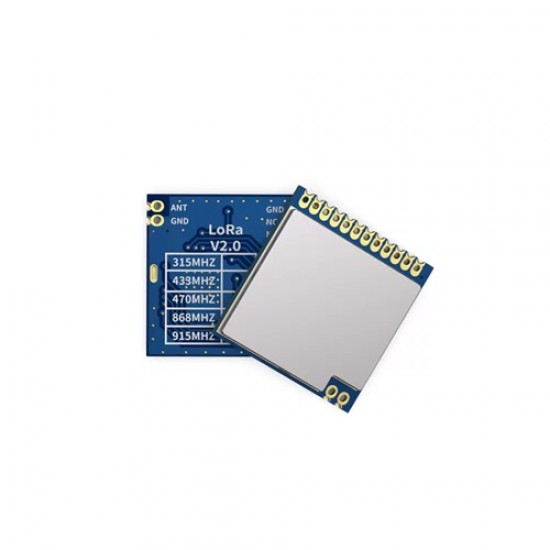

G-NiceRF LoRa1278 433MHz SX1278 Long Range LoRa Wireless Module With ESD Protection
LoRa1278 integrates Semtech RF transceiver chip SX1278, which adopts LoRa Spread Spectrum modulation frequency hopping technique. Its communication distance and receiving sensitivity are much better than the current FSK and GFSK modulation. Multi-signal won't affect each other even in crowd frequency environment; it comes with strong anti-interference performance. This wireless module antenna switch is integrated and controlled by the chip. Its compact size is matched with an output power of 100mw. It can be widely used in wireless meter reading, remote industrial control and other industries.
LoRa1278 comply with lead-free craft in production and testing and meets RoHS and Reach standards.
Features
- Frequency Range：433/490MHz（Customizable137-520 MHz）
- Sensitivity up to -139dBm @Lora
- Maximum output power：20 dBm
- Low receiving current：3 mA
- Sleep current< 1.5uA
- Data transfer rate：@FSK,1.2-300 Kbps
- @Lora, 0.018-37.5 Kbps
- Lora、FSK、GFSK Modulation mode
- Built-in ESD Protection
- 127dB Dynamic RangeRSSI
- 256 bytes FiFo&CRC
- Frequency hopping function
- Built-in temperature sensor and low battery indicator
- Operating Temperature Range：-40 ~ +85 °C
Specifications
- Interface: SPI
- Chip: SX1278
- Frequency: 433MHz,470MHz
- Modulation: LoRa
- Output Power: 100mW
Applications
- Remote meter reading
- Industrial control
- Home automation remote sensing
- Toys control
- Sensor network
- Tire pressure monitoring
- Health monitoring
- Wireless PC peripherals
Package Includes
- 1x LoRa1278 433MHz SX1278 Long Range LoRa Wireless Module With ESD Protection
