3MP GMSL2 Camera Module, Automotive-Grade Image Sensor, Built-in ISP, AA Lens, IP67 Protection

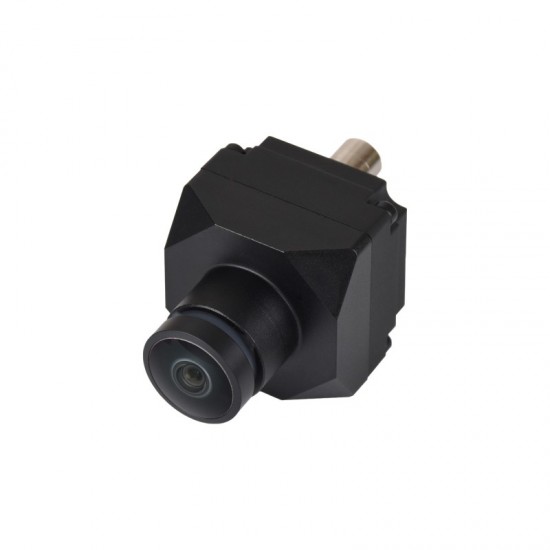

The GMSL-3MP-Camera-A camera module adopts a 3MP automotive-grade CMOS image sensor and integrates the MAXIM MAX96717G GMSL serializer. It includes a professionally calibrated image signal processor (ISP), delivering clear and stable image quality. The entire unit features an IP67-rated case and comes with an AA lens, and each unit is precisely focused and glue-secured before shipment, making it well-suited for automotive and other demanding applications.


Specifications

    • Sensor
      • Model: 3MP RGGB
      • Resolution: 1920 × 1536
      • CMOS Size: 1/2.44inch
      • Pixel Size: 3.0 × 3.0 (um)
    • Camera
      • FoV: 120°(H) × 92.6°(V)
      • Aperture: 1.6
      • Focal Length: 3.02mm
    • ISP: Built-in
    • Frame Rate: 1920 × 1536 at 30fps
    • High Dynamic Range: Supported
    • Dynamic Range: 120dB
    • Output Format: YUV422 at 8bit
    • Serializer
      • Model: MAXIM MAX96717G
      • I2C Address: 0x80 (8-bit address)
    • Camera Interface: Fakra Z-Coded connector
    • Operating Voltage: 9 ~ 12V PoC
    • Operating current: < 340mA at 12V
    • Operating Temperature: -40°C ~ 85°C
    • Protection Grade: IP67

    Package Includes

      • GMSL-3MP-Camera-A x1
      • Fakra-Dual-Female-Cable-174-2M x1

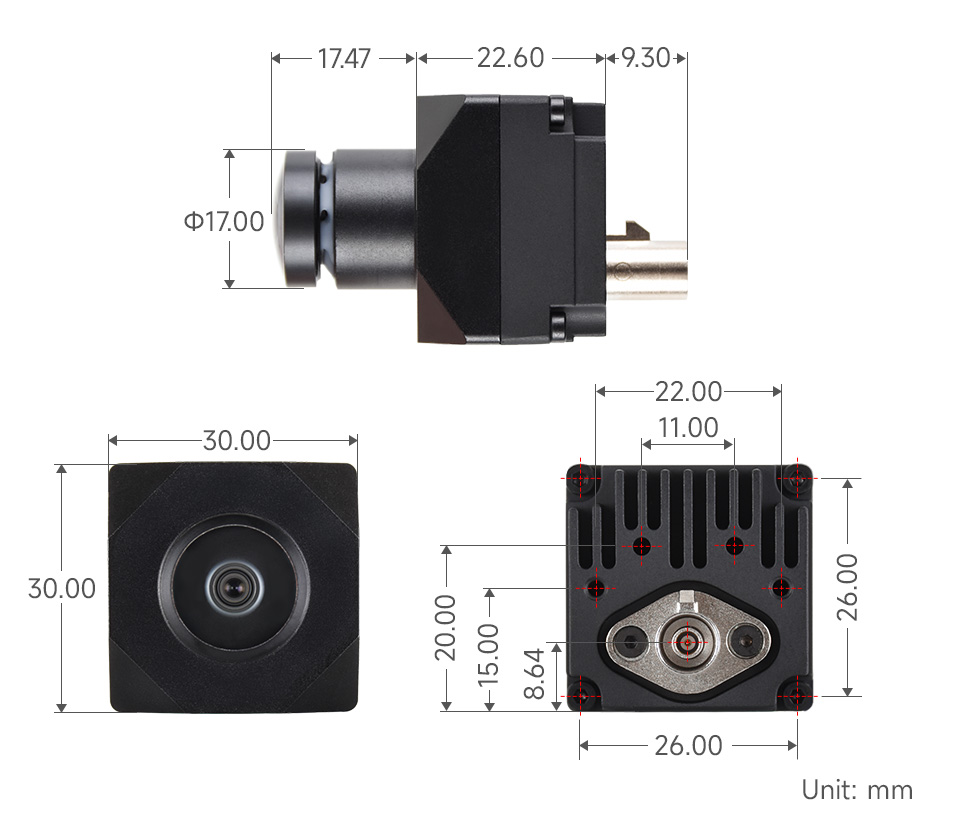

      Dimensions
