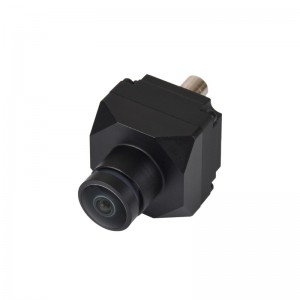

ISX031 3MP GMSL Camera Module, IP67 Protection Degree, More Durable

The ISX031C-GMSL-Camera-H100 camera module adopts ISX031C CMOS image sensor with built-in Image Signal Processor (ISP) and Maxim GMSL2 serializer (MAX96717F), compliance with Automotive-grade performance and features high-quality image effect after professional image tuning; The module is also equipped with an automotive-grade Active Alignment (AA) lens, and can achieve the IP67 protection rating.

User Manual / Datasheet / Example Codes Etc.

Specifications

SENSOR

Model: 2.95MP ISX031 RGGB
Resolution: 1920 × 1536
CMOS size: 1/2.42 inch
Pixel size: 3.0um × 3.0um

Camera

Field Of View: 100°(H) × 78°(V)
Focal length: 3.55mm
Aperture (F): 1.6
Distortion: -58%

ISP: Built-in
FRAME RATE: 1920 × 1536@30fps
HDR (HIGH DYNAMIC RANGE): Support
LFM (LED FLICKER MITIGATION: Support
OUTPUT FORMAT: YUV422@8bit
SERIALIZER: MAXIM MAX96717F
CONNECTOR: GMSL2 (Amphenol Fakra Z Buckle connector)
OPERATING VOLTAGE: 9 ~ 16V PoC
OPERATING CURRENT: ⁢200mA@12VDC
OPERATING TEMPERATURE: -20°C ~ 65°C
PROTECTION DEGREE: IP67

Package Includes

Application Example

Dimensions
