ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards

ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
New
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards
WaveShare Electronics
ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​9,589.00
₹​8,126.27 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 81
B2B GST Credit Available
Price in reward points: 8126
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

ISX031 3MP MIPI Camera Module, ISX031 Sensor, Built-in ISP, 123° Wide Angle, Fixed Focus, Compatible With Raspberry Pi Series And Mainstream Jetson Boards

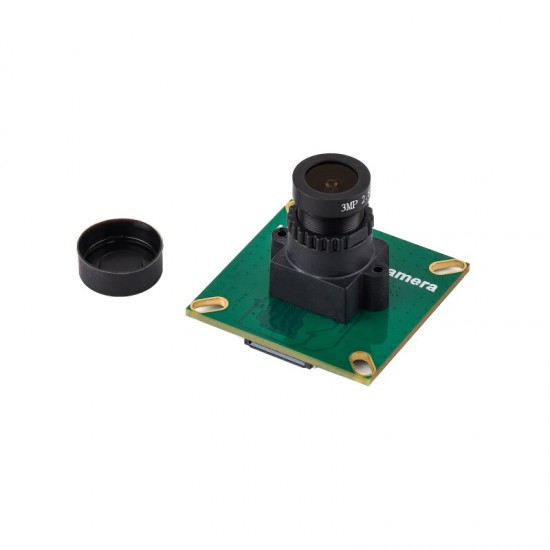

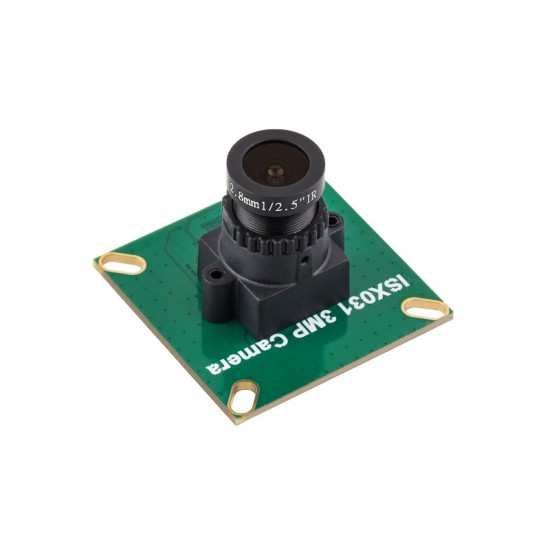

The ISX031 3MP MIPI Camera Module is a compact, high-performance camera solution designed for embedded vision, robotics, AI applications, and industrial imaging. Built around the Sony ISX031 3MP image sensor, the module features a built-in ISP (Image Signal Processor) for optimized image processing and delivers clear, detailed images with reliable color reproduction.

With a 123° wide-angle field of view, the camera captures a broader scene, making it suitable for robotics, surveillance, smart devices, machine vision, and autonomous systems. Its fixed-focus design provides consistent imaging without the complexity of autofocus mechanisms, making it ideal for applications requiring stable and reliable operation.


User Manual / Datasheet / Example Codes Etc.


Features

  • ISX031 3MP image sensor for high-quality imaging
  • Built-in ISP for efficient image processing
  • 123° wide-angle FOV for broad scene coverage
  • Fixed-focus lens for stable and consistent imaging
  • MIPI interface for high-speed data transmission

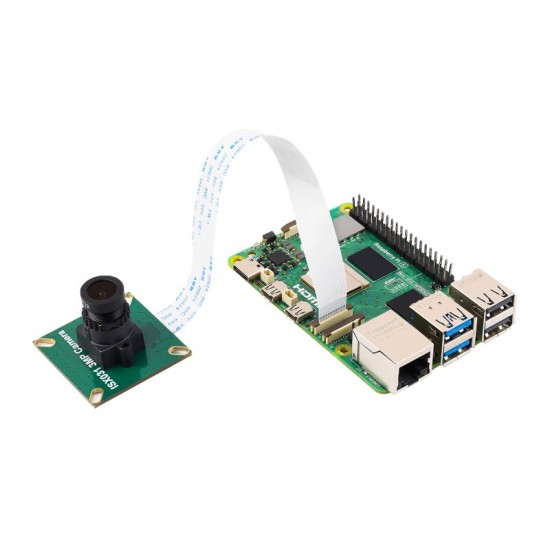

  • Compatible with Raspberry Pi series
  • Supports mainstream NVIDIA Jetson boards
  • Compact design for embedded vision applications
  • Suitable for robotics, AI vision, surveillance, IoT, and machine vision projects


Specifications

  • Sensor: ISX031
  • Camera Type: Color
  • Diagonal Size: 7.38 mm
  • Aperture: F2.0
  • Shutter Type: Rolling Shutter
  • Field of View (D × H × V): 123° × 98° × 75°
  • CMOS Size: 1/2.42 inch
  • Effective Pixels: Approx. 3MP (1920 × 1536)
  • Pixel Size: 3.0 µm × 3.0 µm
  • Focal Length: 2.8mm
  • IR Filter: Built-in
  • Focusing: Fixed Focus
  • Applications: Suitable for AI applications like facial recognition, road mark recognition, license plate number recognition, and so on.


Package Includes

  • ISX031 3MP Camera × 1
  • FFC 22PIN cable (opposite-side) ~200mm × 1

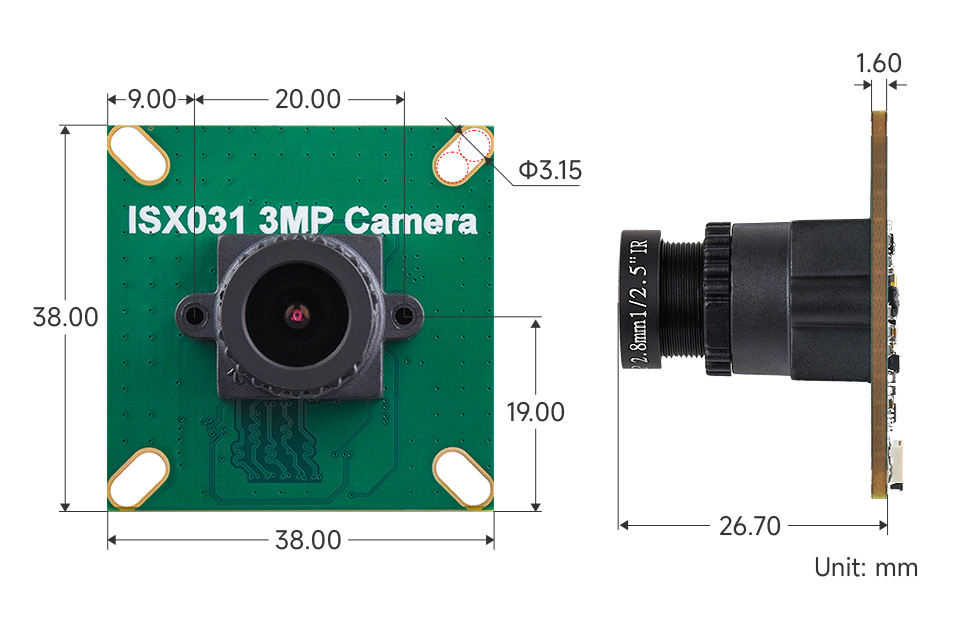

Dimensions
