4-Ch GMSL Camera Adapter Board, Equipped With MAX9296 Deserializer, High-Speed And Low-Latency Serial Transmission, Compatible With Raspberry Pi 5

    GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

    The GMSL-Module-Board-4CH-A is a GMSL camera adapter that allows up to 4-ch GMSL cameras to be connected to the Raspberry Pi 5 board. Compatible with both GMSL1 and GMSL2 protocol interfaces, adopts MAX9296 chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.


      User Manual / Datasheet / Example Codes Etc.


        Features

        • Supports simultaneous access to 4-ch GMSL cameras
        • Supports video input of up to 2 × 8MP (3840 × 2160) or 4 × 3MP (1920 × 1536)
        • Adopts MAX9296 serializer solution
        • Supports camera synchronization via GPIO trigger signals
        • Supports Raspberry Pi 5 host board


          Specifications

            • Deserializer: MAXIM(ADI) MAX9296
            • Host Support: Raspberry Pi 5
            • Serializer Model Support: MAX9295, MAX96717, MAX96705, etc.
            • Input: GMSL 1/2 (FAKRA Z connector × 4)
            • Output: MIPI CSI (22PIN CSI interface × 2)
            • GMSL Camera Support: ISX031, etc.
            • Power Supply: 12V/1A (5.5mm × 2.1mm)
            • Operating temperature: -20°C ~ 65°C


                Package Includes

                • GMSL-Module-Board-4CH-A x1
                • 22PIN FPC cable x2
                • 12V 2A power supply x

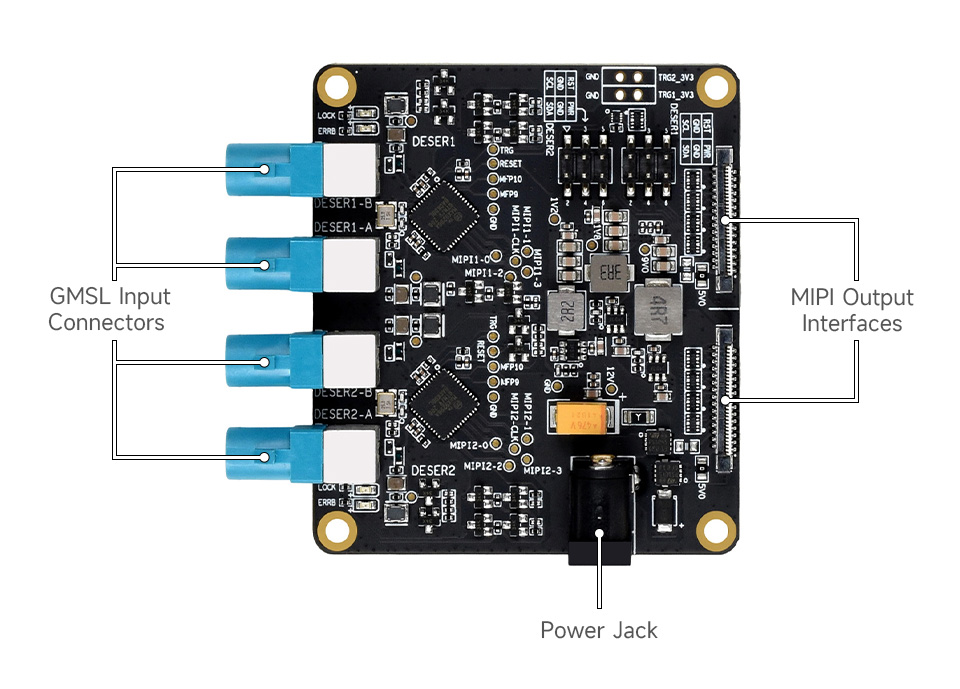

                  What’s On Board

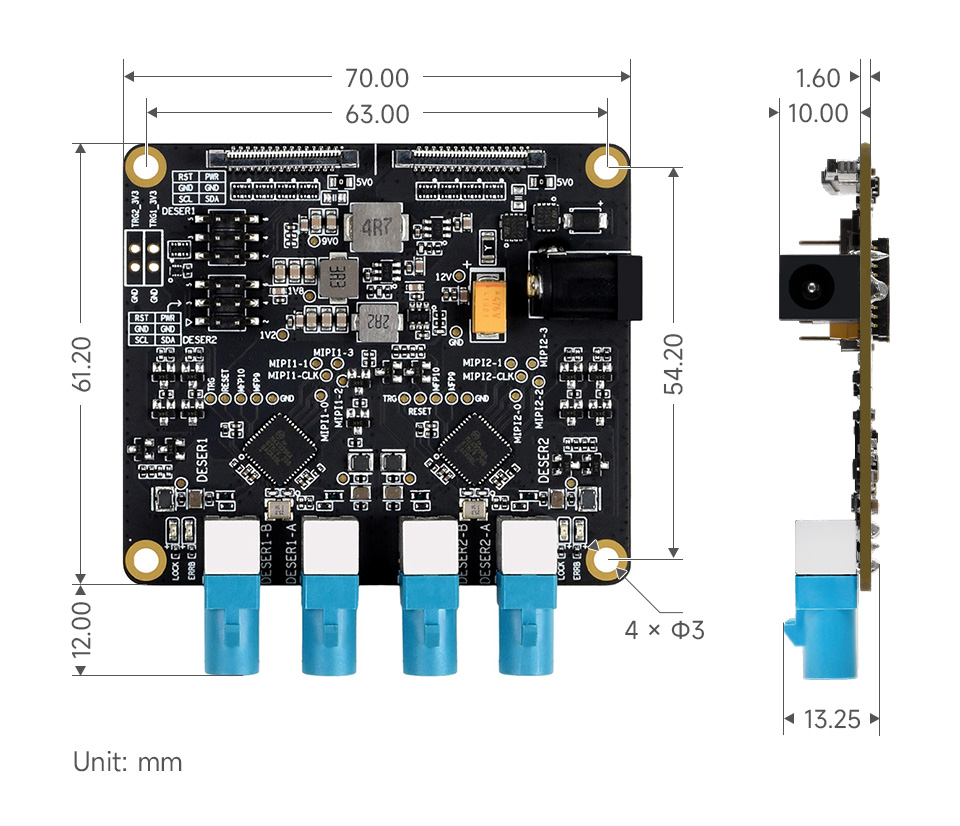

                  Dimensions
