Elecrow ThinkNode M6 Outdoor Solar Power for Meshtastic, Powered By nRF52840 Supports GPS-868 MHz

Elecrow ThinkNode M6 Outdoor Solar Power for Meshtastic, Powered By nRF52840 Supports GPS-915 MHz

The ThinkNode M6 Outdoor Solar Power is a high-performance Meshtastic IoT device designed for harsh outdoor environments and industrial scenarios.

It features the nRFLR1262 LoRa transceiver module and the nRF52840 core processor, supporting Bluetooth and LoRa dual-mode connectivity to ensure stable signal coverage. Equipped with a 6W solar charger and two 18650 batteries, it offers all-weather operation. Its IP65 waterproof housing allows operation in extreme environments ranging from -20°C to 60°C. It offers flexible mounting options, including wall mounting, brackets, pole mounting, and U-shaped clamps.

ThinkNode M6 comes with dual SP11 waterproof aviation connectors and supports long-range communication, precise positioning, and low-power operation. It can be used out-of-the-box, and rapid deployment, ideal for Meshtastic network expansion, remote monitoring, outdoor emergency response, and off-grid communications, especially in remote areas with limited outdoor network access.

User Manual / Datasheet / Example Codes Etc.

Features

• All-Weather Power System
• Integrated 6W high-efficiency silicon solar panels and MPPT smart charging maximize energy harvesting efficiency.
• Combined with a large-capacity lithium battery and ultra-low power consumption, it maintains stable operation for extended periods.
• High-Performance Hardware Configuration
• A built-in 64 MHz Arm Cortex-M4 processor with a DSP instruction set enables smooth execution of complex algorithms.
• Dual-mode communication chip for wireless connectivity
• Bluetooth 5.4 (BLE) enables fast near-field configuration and low-power connectivity. The LoRa SX1262 chip supports the full 150-960 MHz frequency band.
• Flexible Expansion
• Dual SP11 waterproof aviation interfaces support IIC/UART, enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.
• Local Data Processing
• Edge computing capabilities support local data pre-processing (such as filtering, compression, and protocol conversion), reducing cloud reliance and improving response speed and privacy.
• Simple Deployment and Compatibility
• Pre-installed with Meshtastic firmware and support Meshtastic App, compatible with Meshtastic ad hoc networks, for out-of-the-box use.
• High-Precision Positioning
• The L76K GPS module supports real-time, accurate positioning and location information sharing.
• IP65 Protection
• The integrated sealing structure supports an IP65 protection level and can be used in environments ranging from -20°C to 60°C.
• Multiple mounting options
• Supports wall mounting, bracket mounting, pole mounting, and U-shaped clamp mounting.
• Multi-scenario application coverage
• It can be used in wide-area IoT applications( remote monitoring, environmental monitoring, and asset tracking), and also supports ad hoc networks, making it suitable for distributed deployment in areas without network coverage.

Specifications

• CPU/SoC: 32-bit Arm® Cortex™-M4 CPU at 64 MHz with FPU (Floating Point Unit)
• System Memory: 256 KB RAM
• Storage: 1 MB Flash memory, 16M Flash
• Development language: C/C++、Python、JavaScript, etc.
• Development Environment: nRF5 SDK、Keil、Segger Embedded Studio (SES)、Visual Studio Code (VS Code),etc.
• Firmware: Supports the Meshtastic protocol and comes pre-flashed with firmware
• Configuration interface: Official APP
• LoRa Transceiver: The Semtech SX1262 sub-GHz wireless transceiver provides low-power, long-distance transmission, covering a frequency range of 150-960MHz. SPI communication is also available.
• Wireless Communication
• Bluetooth: Bluetooth Low Energy and Bluetooth 5.4
• LoRa: SX1262 LoRa Transceiver EU 868MHz（External antenna）
• Hardware
• USB Interface: Type-C, External, for power supply and burning
• Sensor Interface 1: For UART sensor communication, External, SP11 interface
• Sensor Interface 2: For IIC sensor communication, External, SP11 interface
• LoRa Antenna Interface: External, RP-SMA Interface
• GPS Antenna Interface: External, RP-SMA Interface
• Button: Function Button, Reset Button
• LED Indicator: Power supply, GPS/LoRa indication
• RTC: Yes, support interrupt/wake-up
• Battery
• Type: 2x 18650 lithium-ion batteries, Panasonic
• Capacity: 7000mAh
• Voltage: 3.7V~4.2V
• Protection: Explosion-proof design, all-steel housing, and battery safety valve
• Power
• Mainboard input: 5V/1A, Type-C port
• Solar Panel Output: 6W, rated power output: Power consumption (LoRa)
• Power consumption (OFF): 21uA: Power consumption (transmitting and receiving): 192mA with GPS on, 147mA with GPS off
• Buttons: On/Off
• Other
• Installation method: Wall mount, bracket, through rod, U-shaped clamp
• Environmental level: IP65
• Operating Temperature: -20~60°C
• Storage Temperature: -30~70 °C
• Relative humidity: 10% to 90% RH (Relative Humidity) (non-condensing)

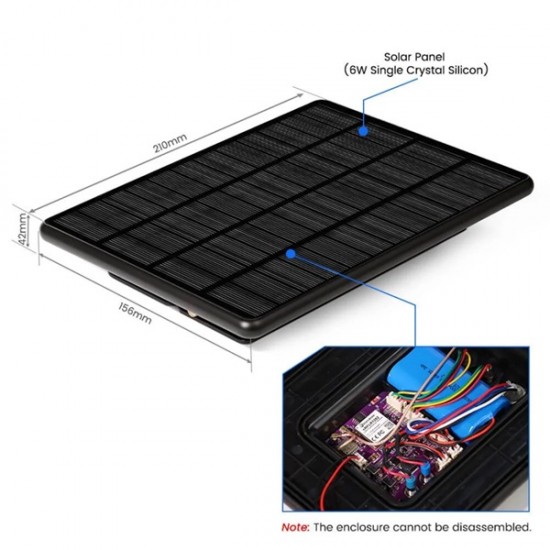

• Size: 210*156*42mm (excluding antenna and bracket)
• Enclosure: Plastic
• Net weight: 530g

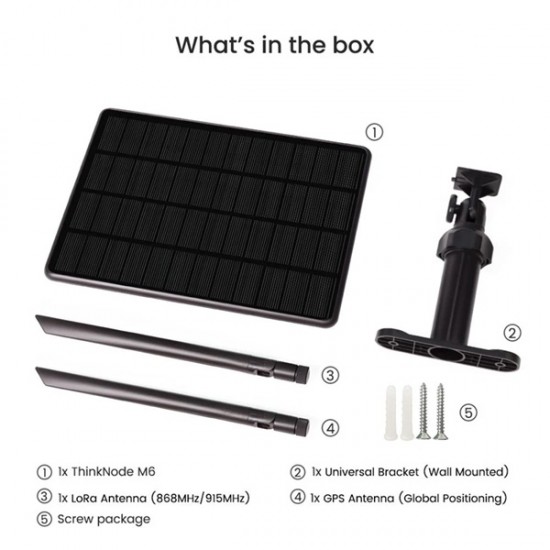

Package Includes

• 1x ThinkNode M6- Outdoor Solar Power
• 1x LoRa Antenna
• 1x GPS Antenna

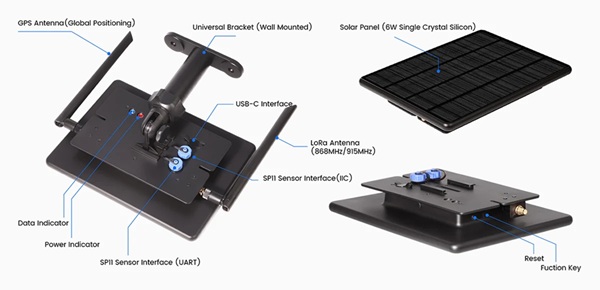

Hardware Overview
