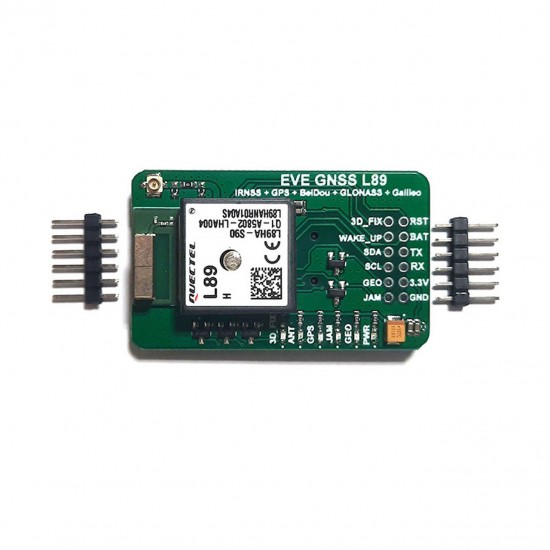

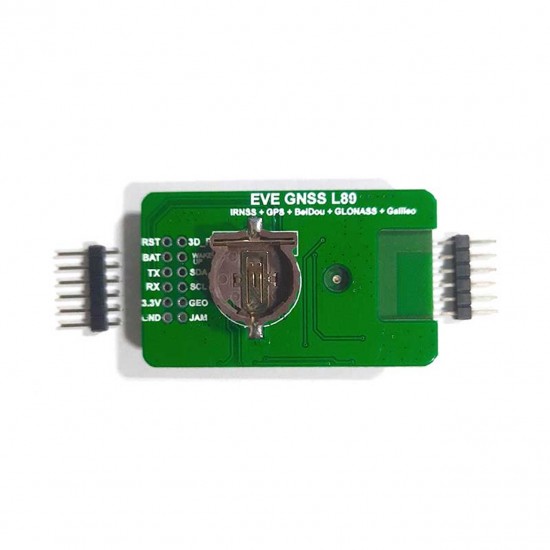

The L89HA Breakout Multi-GNSS IRNSS-enabled by 7Semi is an advanced navigation solution that seamlessly integrates Quectel’s GNSS module with dual embedded antennas, allowing simultaneous operation on L1 and L5 bands. This board is powered by a 3.3V supply and establishes communication with the target MCU through an I2C / UART interface. Additionally, it includes a BAT connection pin for backup power supply. The breakout, equipped to acquire and track signals from GPS, IRNSS, GLONASS, BeiDou, Galileo, and QZSS, significantly reduces time-to-first-fix, ensuring precise navigation.
The L89HA Breakout stands out as a top-tier multi-GNSS engine supporting GPS, IRNSS, GLONASS, BeiDou, Galileo, and QZSS satellite systems. Engineered for accuracy and reliability, this compact GNSS module caters to diverse applications such as navigation, tracking, timing, and geofencing.
A notable feature of the L89HA Breakout is its 3.3V power supply, simplifying integration into various systems and devices. Offering both I2C and UART interfaces, it ensures adaptability with a broad spectrum of microcontrollers and processors.
Enhancing design simplicity and reducing system size, the breakout incorporates embedded patch and chip antennas. This feature makes it particularly suitable for integration into compact and mobile devices like smartphones, wearables, drones, and IoT devices.
The L89HA Breakout excels in sensitivity and accuracy, owing to its advanced RF design and signal processing algorithms. It supports concurrent reception of up to three GNSS constellations, guaranteeing precise positioning even in challenging environments, including urban canyons and areas under tree canopies.
A versatile and potent multi-GNSS engine, the L89HA Breakout delivers high accuracy, reliability, and flexibility. Its 3.3V power supply, I2C / UART interface, and embedded antennas make it an optimal choice for diverse navigation, tracking, and timing applications.
