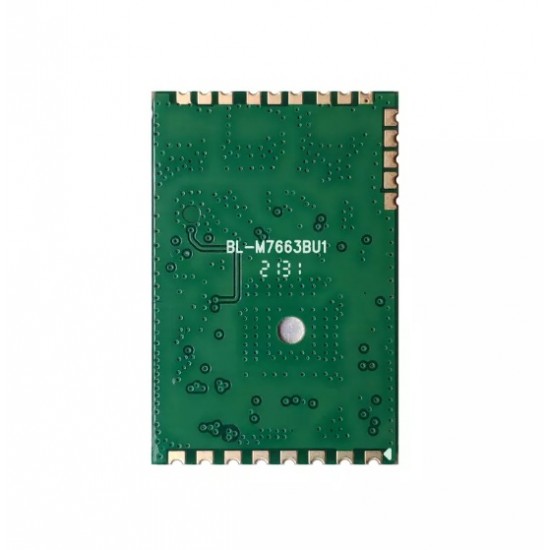

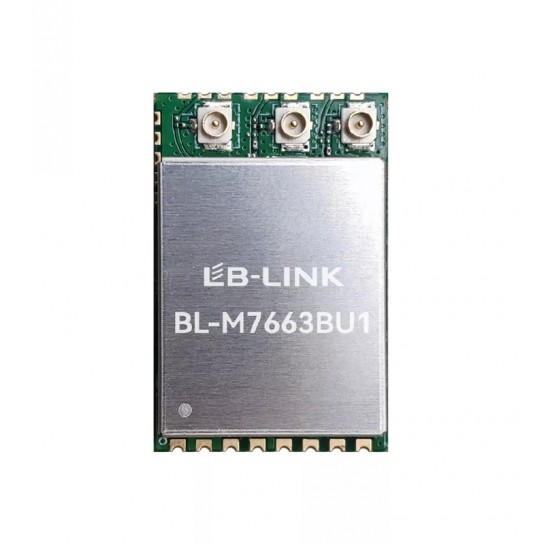

LB-Link BL-M7663BU1 (MediaTek MT7663) Industrial-grade Linux-compatible Wi-Fi Bluetooth Module

BL-M7663BU1 is a highly integrated Dual-band WLAN + Bluetooth-compatible v5.1 combo module. It integrates a 2T2R Dual-band WLAN subsystem and a Bluetooth-compatible v5.1 wireless subsystem.

This module complies with the IEEE 802.11a/b/g/n/ac standard and delivers a maximum PHY rate of up to 867 Mbps. It supports BR/EDR and BLE dual modes, providing high-standard feature-rich wireless connectivity, as well as reliable, cost-effective data throughput over an extended transmission distance.

Datasheet

Features

Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
Host Interface is USB2.0
IEEE Standards: IEEE 802.11a/b/g/n/ac
Wireless PHY rate can reach up to 867Mbps
Supports Bluetooth 5.1 system
Connect to external antenna through IPEX connectors
Power Supply: DC 3.3V±0.2V power supply

Specifications

Module Name: BL-M7663BU1
Chipset: MT7663BUN
WLAN Standard: IEEE 802.11a/b/g/n/ac
BT Specification: Bluetooth Core Specification v5.1
Host Interface: USB2.0 for WLAN&BT
Antenna: Connect to the external antenna through IPEX connectors (Three antennas)
Dimension: 27.0*17.7*3.0mm (L*W*H)
Power Supply: DC 3.3V±0.2V @ 1000 mA (Max)
Operation Temperature: -20℃ to +70℃
Operation Humidity: 10% to 95% RH (Non-Condensing)

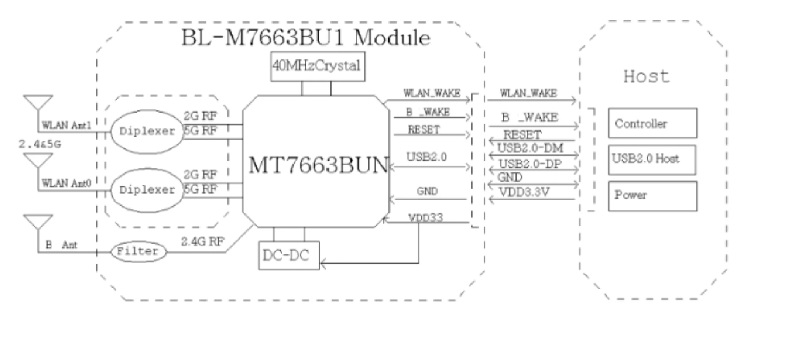

Block Diagram

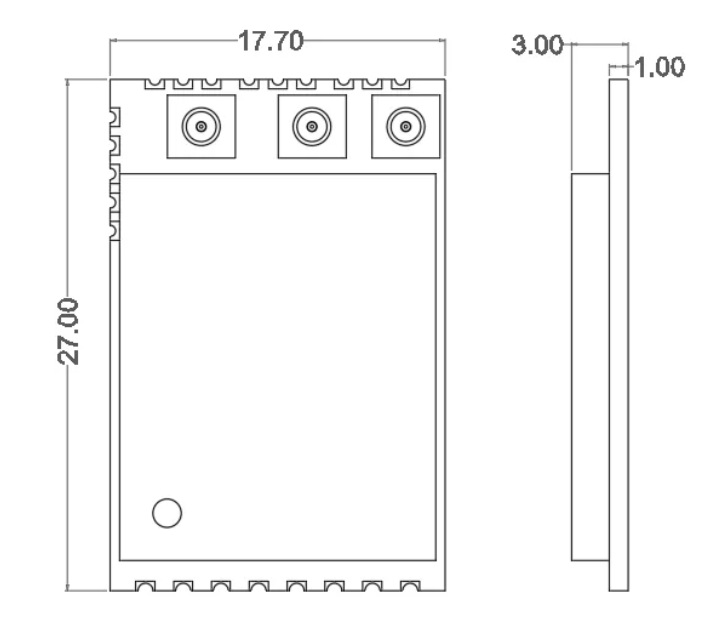

Dimensions
