Name: LB-Link BL-M8811CU2 Dual Band 2.4/5GHz WiFi 6 & Bluetooth 5.2 Module
Brand: LB-LINK
SKU: 07769
Price: 599.00 INR
Availability: OutOfStock

LB-Link BL-M8811CU2 Dual Band 2.4/5GHz WiFi 6 & Bluetooth 5.2 Module

LB-LINK

LB-Link BL-M8811CU2 Dual Band 2.4/5GHz WiFi 6 & Bluetooth 5.2 Module

Based on 0 reviews. - Write a review

₹599.00

₹507.63 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 5
B2B GST Credit Available

Price in reward points: 507

Stock: 0 in Stock
SKU: 07769
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

LB-Link BL-M8811CU2 Dual Band 2.4/5GHz WiFi 6 & Bluetooth 5.2 Module

BL-M8811CU2 is a highly integrated dual-band WLAN module base on RTL8811CU, which combines WLAN MAC, 1T1R Baseband and Radio in single chip. It compatible IEEE 802.11a/b/g/n/ac standard and supports Maximum PHY rate up to 433Mbps. The module provides excellent WLAN performance and lower cost ideal for wireless network applications such as Smart TV, OTT boxes, IP cameras, LED projectors.

Datasheet

Features

Operating Frequencies: 2.4~2.4835GHz or 5.15~5.85GHz
Host Interface is USB2.0
IEEE standard: IEEE 802.11a/b/g/n/ac
Wireless PHY rate up to 433Mbps
Connect to external antenna through half hole
DC 3.3V±0.2V main power supply

Specifications

Module Name: BL-M8811CU2
Chipset: RTL8811CU-CG
WLAN Standard: IEEE 802.11 a/b/g/n/ac
Host Interface: USB2.0
Antenna: Connect to the external antenna through half hole pad
Dimension: 12.9*12.2*1.7mm (L*W*H）
Power Supply: DC 3.3V±0.2V @ 500 mA (Max)
Operation Temperature: -20℃ to +70℃
Operation Humidity: 10% to 95% RH (Non-Condensing)

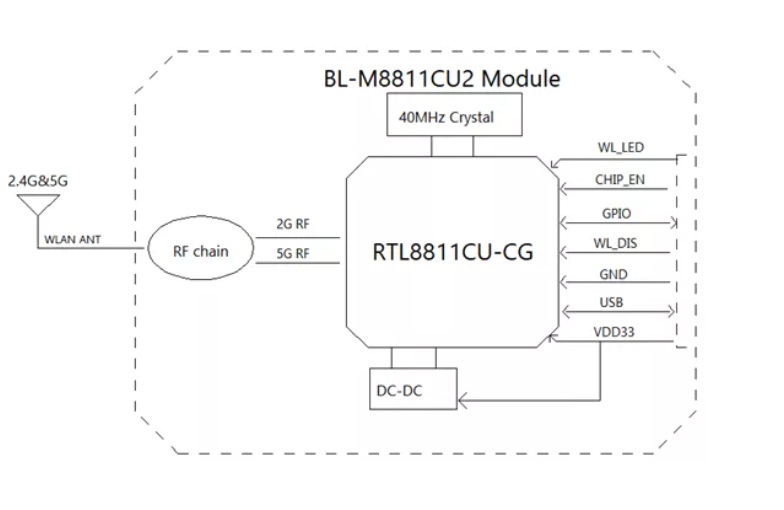

Block Diagram

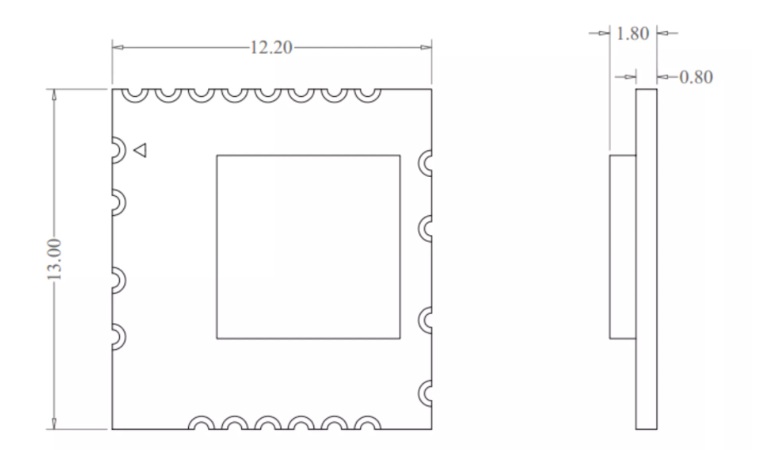

Dimension
