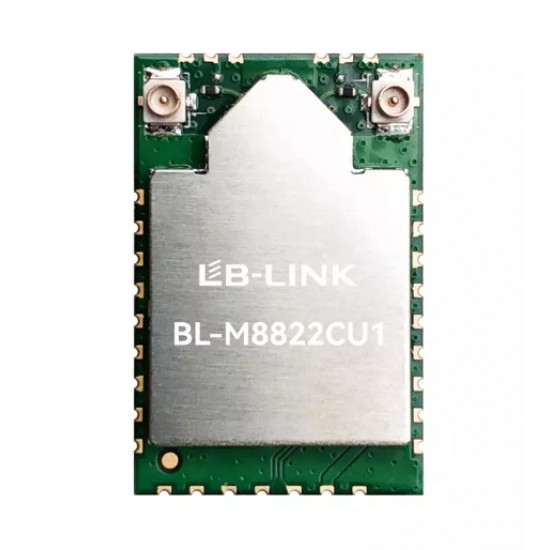

LB-Link M8822CU1 Dual Band 2.4/5GHz WiFi 5 + Bluetooth 5.0 Module

BL-M8822CU1 is a highly integrated Dual-band WLAN + Bluetooth v5.0 Combo module. It combines a 2T2R Dual-band WLAN subsystem and a Bluetooth v5.0 subsystem. This module compatible with IEEE 802.11a/b/g/n/ac standard and provides the maximum PHY rate up to 867Mbps, it supports BT / BLE dual mode, offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective throughput from an extended distance.

Datasheet

Features

Operating Frequency: 2.4~2.4835GHz or 5.15~5.85GHz
Support Dual-band 2T2R mode with 20/40/80Mhz bandwidth
Wireless PHY rate can reach up to 867Mbps
Support BT Classic / BT Low Energy dual mode
Support Bluetooth v5.0 system
Connect to external antennas through Half hole pads

Specifications

Module Name: BL-M8822CU1
Chipset: RTL8822CU-CG
WLAN Standards: IEEE802.11a/b/g/n/ac
Bluetooth Standards: Bluetooth Core Specification v5.0
Host Interface: USB2.0 interface for WLAN & Bluetooth
Antenna: Connect to external antennas through Half hole pads
Dimension: 27.0*17.8*3.0mm (L*W*H)
Power Supply: DC 3.3V±0.2V@ 800 mA( Max)
Operation Temperature: -20℃ to +70℃
Operation Humidity: 10% to 95% RH (Non-Condensing)

Block Diagram

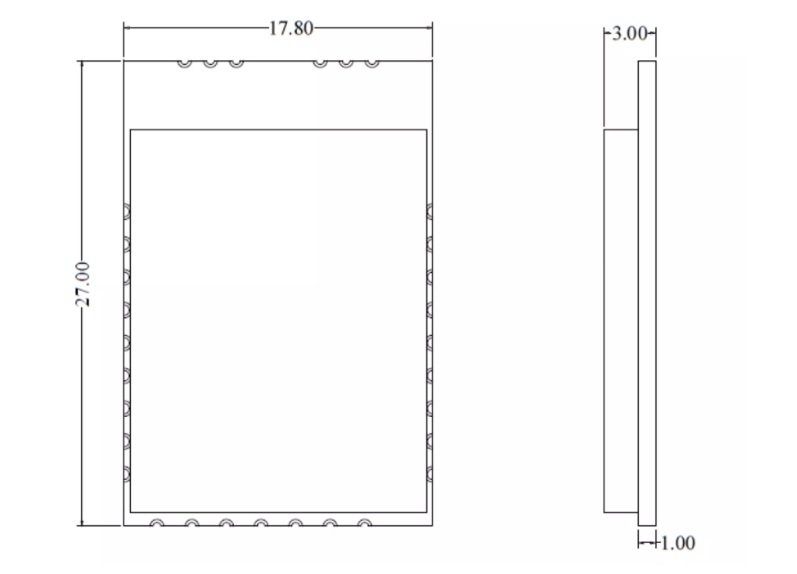

Dimension
