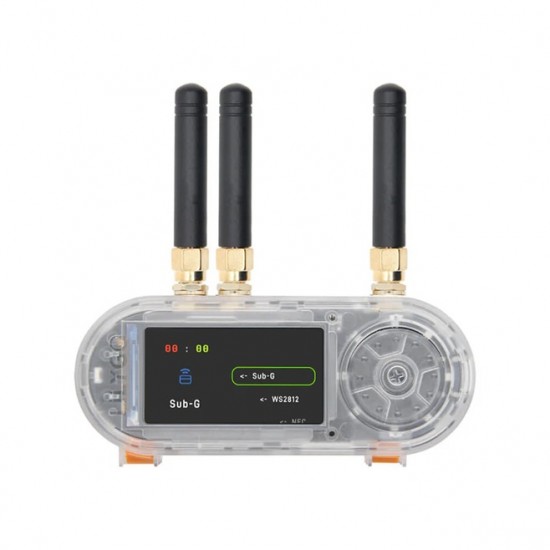

LILLYGO T-Embed CC1101 Plus ESP32-S3 + nRF24L01 + PN532 NFC/RFID Wireless Transceiver Module With 1.9inch IPS LCD Display (With External Antenna's)

(K268-01)

The LILLYGO T-Embed CC1101 Plus is a powerful multi-functional wireless development module built around the ESP32-S3 processor, combining long-range communication, NFC/RFID functionality, and multiple wireless transceivers into a compact handheld-style device. Featuring a vibrant 1.9-inch IPS LCD display and external antennas for enhanced signal performance, this module is ideal for IoT development, wireless testing, smart automation, embedded projects, RFID applications, and advanced communication experiments. It integrates CC1101 sub-GHz communication, nRF24L01 2.4GHz wireless capability, and PN532 NFC/RFID support, making it a versatile all-in-one solution for developers, makers, and security researchers.

Powered by the high-performance ESP32-S3 dual-core processor, the module supports Wi-Fi and Bluetooth connectivity while providing sufficient processing power for real-time wireless communication tasks and graphical user interfaces. The external antenna design improves transmission range and signal stability, while the integrated IPS display delivers clear visuals for data monitoring, menus, and project interaction. The compact and portable form factor makes it suitable for portable wireless tools, IoT gateways, RFID readers, smart control systems, and experimental radio communication projects.


User Manual / Datasheet / Example Codes Etc.


Features

  • ESP32-S3 dual-core wireless microcontroller
  • Integrated CC1101 sub-GHz wireless transceiver
  • Built-in nRF24L01 2.4GHz communication module
  • PN532 NFC/RFID reader and writer support
  • 1.9-inch IPS LCD color display
  • External antennas for improved wireless range
  • Supports Wi-Fi and Bluetooth connectivity
  • Compact handheld-style development platform
  • Suitable for IoT, RFID, wireless communication, and automation projects
  • USB interface for programming and power supply
  • Open-source compatible development environment
  • Ideal for Arduino, ESP-IDF, and embedded system development


Specifications

  • MCU: ESP32-S3 Dual-core LX7 microprocessor
  • Flash: 16MB
  • Programming Platform: Arduino-ide,  ESP-IDF
  • RSRAM: 8MB
  • Onboard functions: Reset + Boot Button , IR Transmit & Receive
  • Bat voltage detection: IO04
  • Wireless: Wi-Fi 802.11 b/g/n & BLE 5
  • Support: Worldwide 2.4GHz ISM band operation
  •  1.9 inch ST7789V IPS color TFT LCD
    • Interface: SPI
    • Drive Chip: ST7789V
    • Resolution: 170(H)RGB x 320(V)

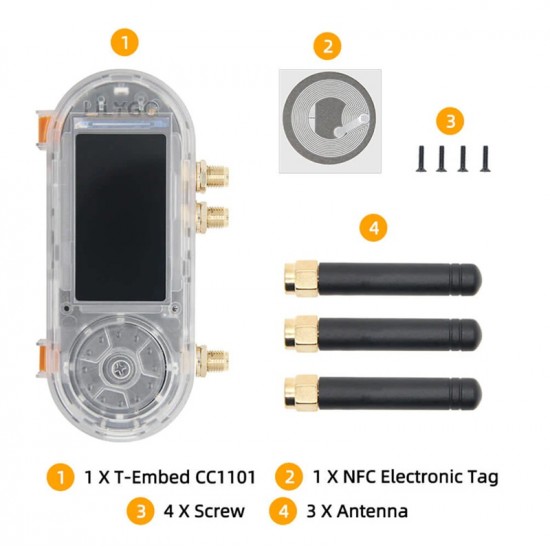

Package Includes

  • 1x LILLYGO T-Embed CC1101 Plus
  • 3x External Antenna's

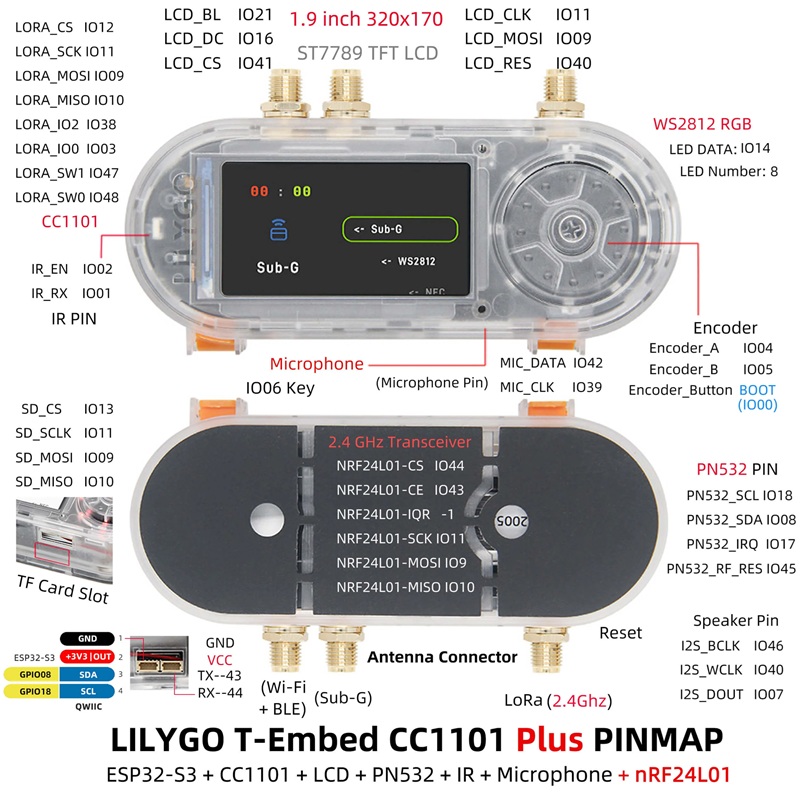

Pin Diagram


Dimensions
