Name: LILYGO T-Beam BPF ESP32-S3 + SX1278 144-148 MHz LoRa Based Wireless Wi-Fi Bluetooth Development Board With 0.96 inch OLED Display (Q438)
Brand: TTGO
SKU: 07396
Price: 8170.00 INR
Availability: OutOfStock

LILYGO T-Beam BPF ESP32-S3 + SX1278 144-148 MHz LoRa Based Wireless Wi-Fi Bluetooth Development Board With 0.96 inch OLED Display (Q438)

TTGO

LILYGO T-Beam BPF ESP32-S3 + SX1278 144-148 MHz LoRa Based Wireless Wi-Fi Bluetooth Development Board With 0.96 inch OLED Display (Q438)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹8,170.00

₹6,923.73 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 69
B2B GST Credit Available

Price in reward points: 6924

Stock: 0 in Stock
SKU: 07396
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

LILYGO T-Beam BPF ESP32-S3 + SX1278 144-148 MHz LoRa Based Wireless Wi-Fi Bluetooth Development Board With 0.96 inch OLED Display (Q438)

The LILYGO T-Beam BPF is a versatile wireless development board designed for long-range communication and IoT applications. Powered by the ESP32-S3 dual-core processor, it integrates Wi-Fi, Bluetooth 5.0 LE, and an SX1278 LoRa transceiver with a built-in band-pass filter (BPF) optimized for the 144–148 MHz frequency band.

Equipped with 16MB Flash and 8MB PSRAM, this board supports complex applications and efficient data handling. The 0.96-inch OLED display (SSD1306, 128×64) provides real-time status monitoring without external hardware, while the onboard AXP2101 power management unit ensures stable performance with USB input or an 18650 lithium battery.

With multiple GPIOs, UART, SPI, I2C interfaces, and optional GPS support, the T-Beam BPF is well-suited for remote telemetry, amateur radio projects, environmental monitoring, and experimental mesh networking. Its compact design, battery support, and wide connectivity make it an excellent choice for portable IoT solutions requiring long-range, low-frequency LoRa communication.

User Manual / Datasheet / Example Codes Etc.

Specifications

MCU: ESP32-53FN8 Dual-core LX7 microprocessor
Development: Arduino, PlatformIO-IDE (Vs code)
Flash: 16MB
PSRAM: 8MB
PMU: AXP2101
Wireless: 2.4HGz Wi-Fi+ Bluetooth 5 (LE)
Onboard functions: Boot (IO00)+ Reset+ Power +IO03
0.96 inch SSD1306 OLED:

Resolution: 128 x 64
Interface: I2C

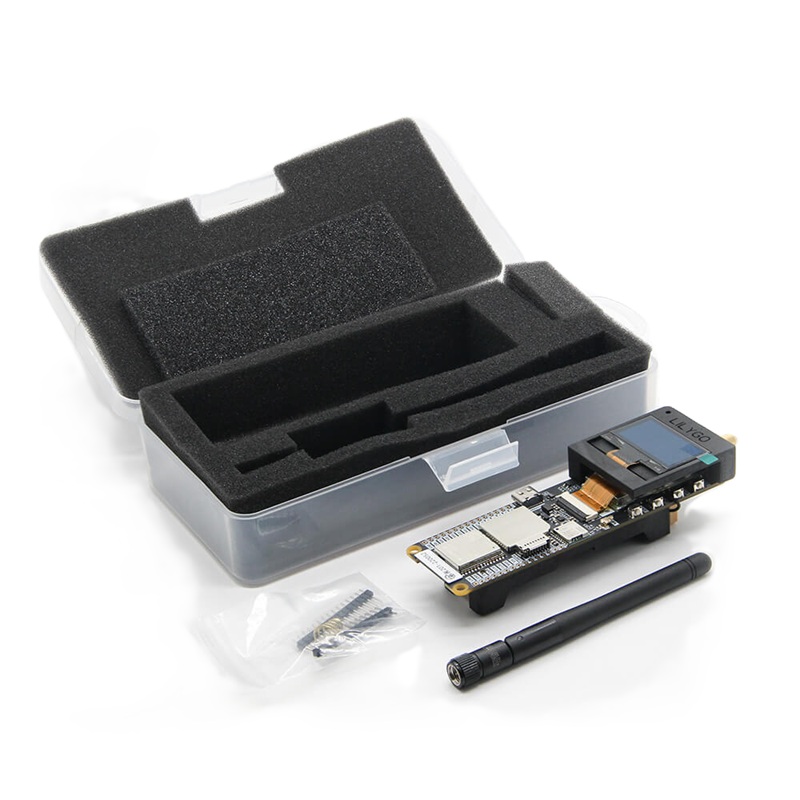

Package Includes

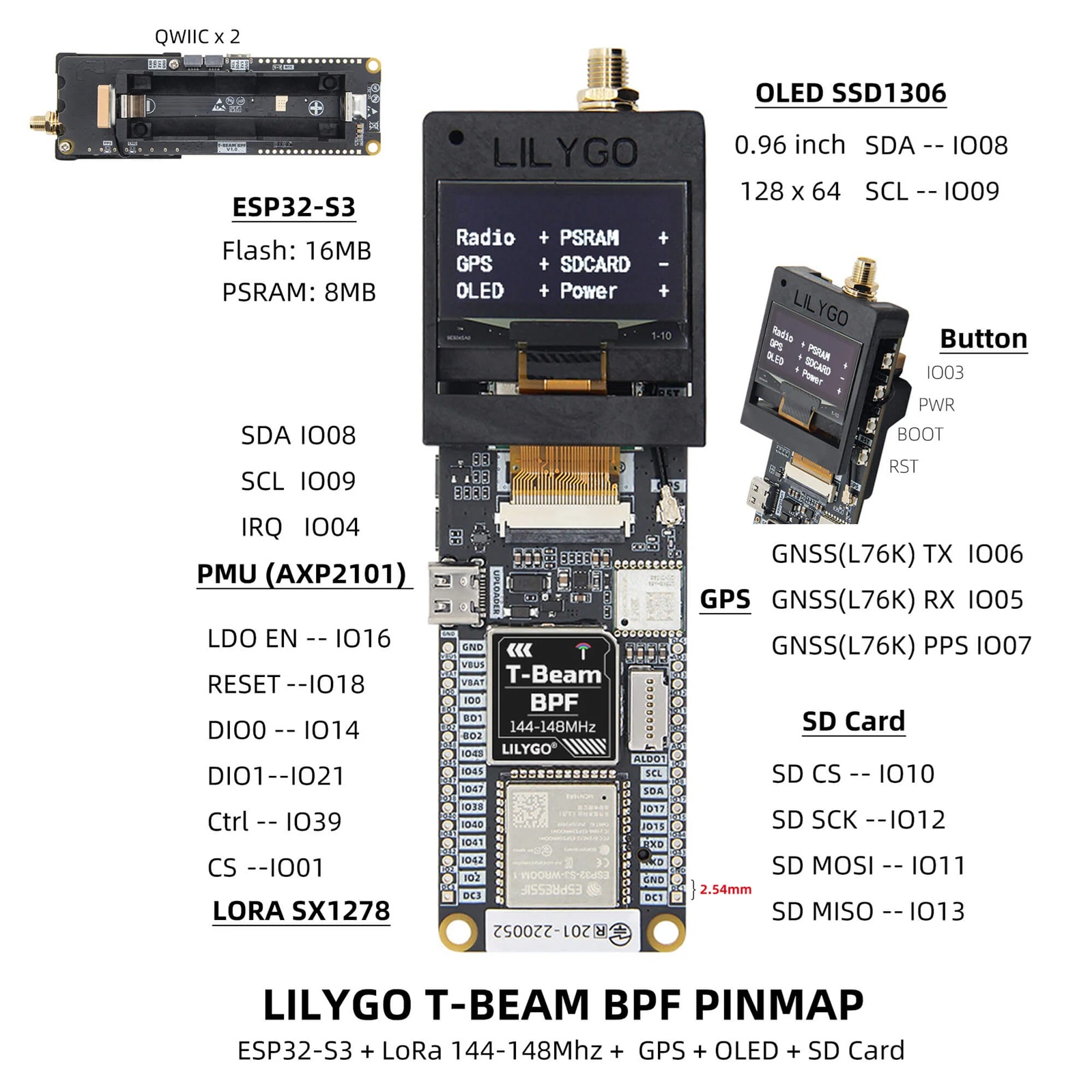

Pin Daigram
