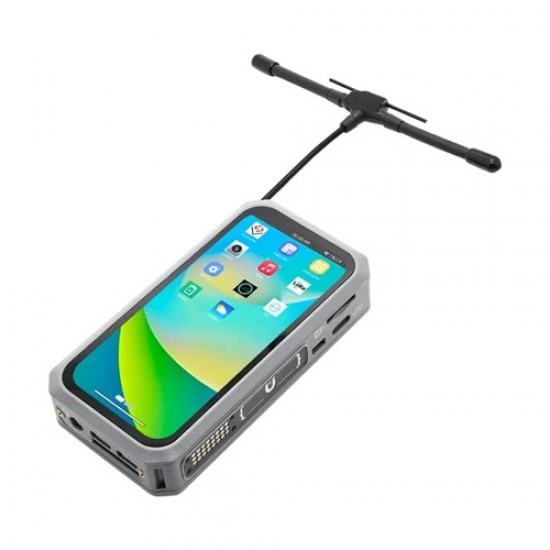

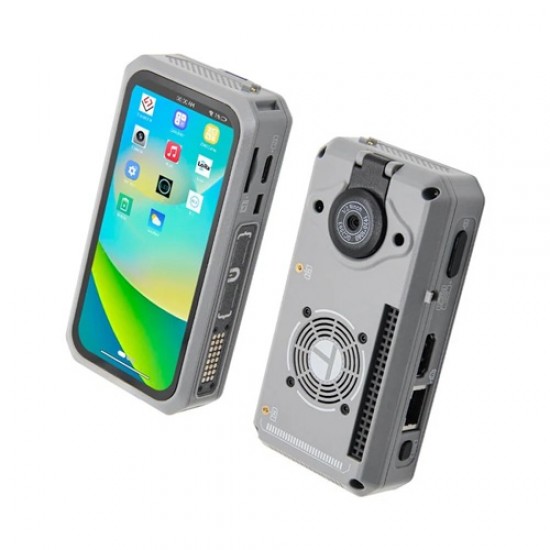

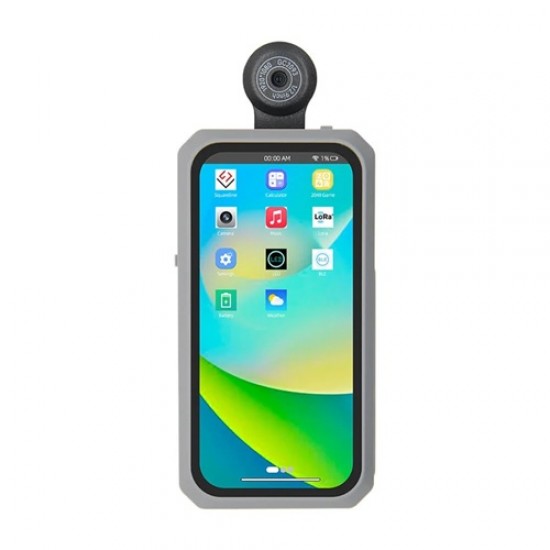

The LILYGO T-Display K230 AI Development Board Kit [K256-03] is a powerful and versatile AI development platform designed for edge AI, computer vision, IoT, and embedded applications. It combines a K230 AI processor, 8GB LPDDR4 RAM, a vibrant 4.1-inch AMOLED display, integrated keyboard, LoRa connectivity, and a 2MP 1080P camera in a compact development kit.

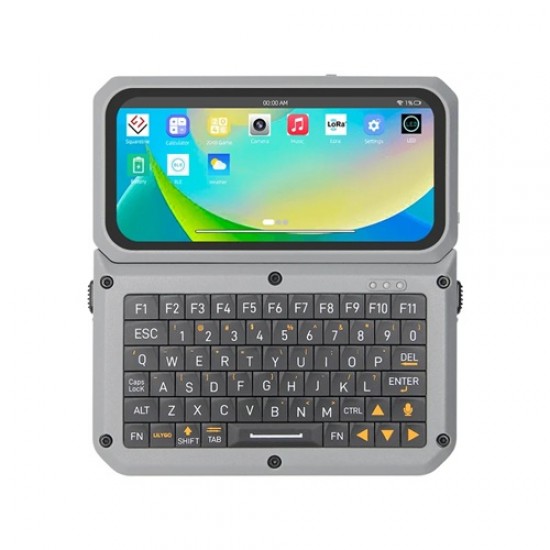

The 4.1-inch AMOLED display provides sharp, vivid visuals and an excellent interface for interactive AI applications, monitoring systems, portable terminals, and smart-device projects. The integrated keyboard makes the kit convenient for standalone operation, data entry, testing, and development without requiring an external input device.

User Manual / Datasheet / Example Codes Etc.

Features

• LILYGO T-Display K230 AI Development Board Kit [K256-03]
• 4.1-inch AMOLED display for vivid and high-quality visuals
• Integrated keyboard for convenient standalone interaction
• K230 AI processor for edge AI and embedded applications
• 8GB LPDDR4 RAM for demanding AI and multitasking workloads
• 2MP camera with up to 1080P video capability
• SX1262 LoRa transceiver with 868MHz operating band
• Suitable for AI vision, IoT, LoRa communication, smart terminals, and embedded development
• Compact all-in-one design for rapid prototyping and portable projects

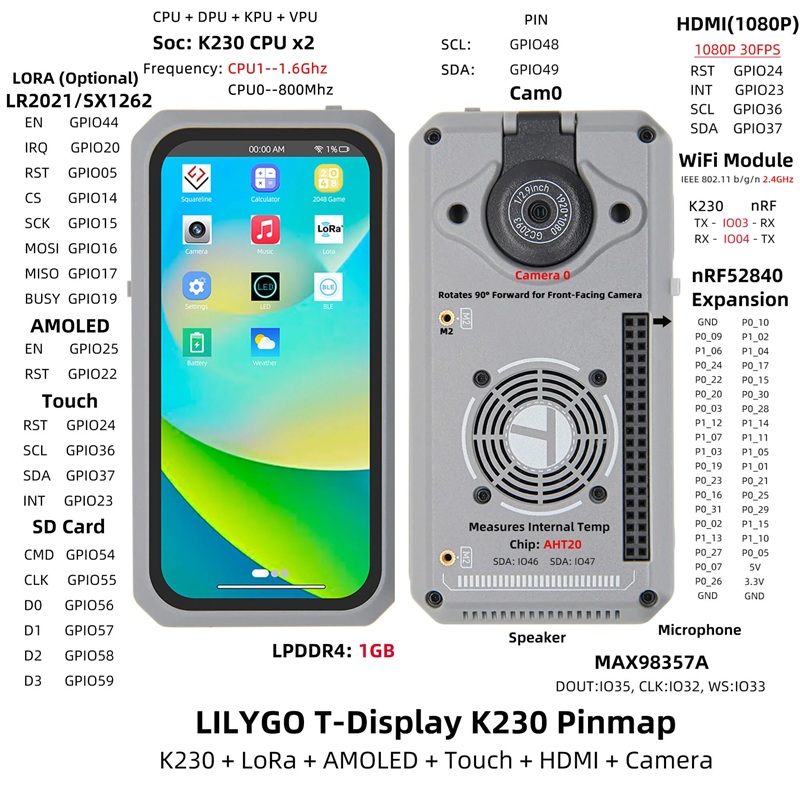

Specifications

• SoC: Two 64-bit RISC-V CPU + KPU + DPU + GPU + VPU
• Working Frequency: CPU1: 1.6GHz, CPU0: 800MHz
• AI & Graphics: KPU Supports General AI Computing Framework, AI 2D engine, 2.5D GPU, 3D DPU + H.264 + H.265
• Display: 4.1 inch AMOLED, Driver: RM69A10, Resolution: RGB 568 x 1232
• LoRa Transceiver: Module: SX1262, Bands: 868, 915, 923MHz
• Camera: 2MP 1080P, Module: GC2093
• RAM: 32 LPDDR4, Capacity: 8Gb
• Wi-Fi Module: 2.4G, Name: RTL8189, IEEE 802.11 b/g/n 2.4GHz
• Ethernet Module: Name: RC01812, Connector: RJ45
• Dimensions: 104 x 51 x 15.5mm
• USB Charging: 5V 500mA

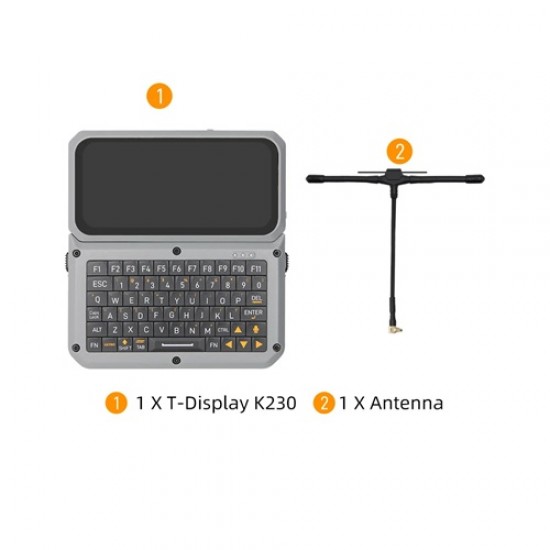

Package Includes

• 1x LILYGO T-Display K230 AI Development Board Kit with 4.1 inch AMOLE Display & Keyboard - SX1262 868MHz LoRa Band - 8GB LPDDR4 RAM - 2MP 1080P Camera [K256-03]
