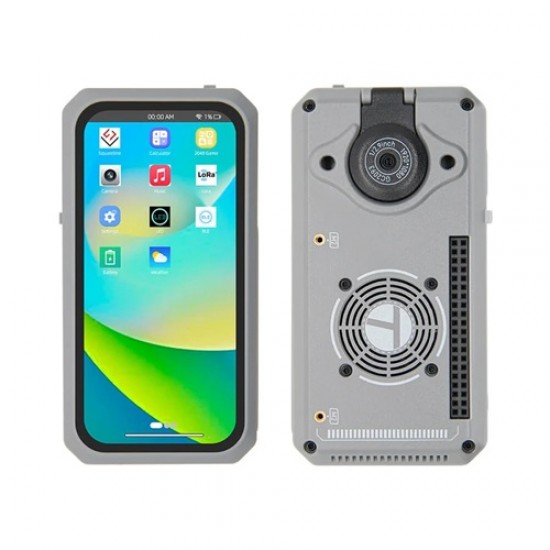

LILYGO T-Display K230 AI Development Core Board with 4.1 inch AMOLED Display - LR2021 868MHz LoRa Band - 8GB LPDDR4 RAM - 2MP 1080P Camera [K277]

LILYGO T-Display K230 AI Development Core Board with 4.1 inch AMOLED Display - LR2021 868MHz LoRa Band - 8GB LPDDR4 RAM - 2MP 1080P Camera [K277]

The LILYGO T-Display K230 AI Development Core Board [K277] is a powerful and compact AI development platform designed for edge AI, IoT, wireless communication, multimedia applications, and embedded system development. It combines a 4.1-inch AMOLED display, 8GB LPDDR4 RAM, 2MP 1080P camera, and LR2021 868MHz LoRa wireless communication in a portable development board.

Powered by the K230 AI processor platform, the board provides the computing capability required for AI and edge-computing projects while offering a high-quality AMOLED display for clear and vivid visual output. The 8GB LPDDR4 memory provides sufficient capacity for demanding applications, multitasking, and AI-related workloads.

User Manual / Datasheet / Example Codes Etc.

Note: This is the core board version (K277) and does not include the keyboard.

Features

• K230 AI Development Platform for edge AI and embedded applications
• 4.1-inch AMOLED Display for vivid and high-contrast visual output
• 8GB LPDDR4 RAM for smooth multitasking and demanding applications
• 2MP Camera with 1080P Video for computer vision and image-processing projects
• LR2021 868MHz LoRa Band for long-range wireless communication
• Compact and portable design suitable for embedded and IoT projects
• Ideal for AI, IoT, computer vision, wireless communication, and multimedia development

Specifications

• SoC: Two 64-bit RISC-V CPU + KPU + DPU + GPU + VPU
• Working Frequency: CPU1: 1.6GHz, CPU0: 800MHz
• AI & Graphics: KPU Supports General AI Computing Framework, AI 2D engine, 2.5D GPU, 3D DPU + H.264 + H.265
• Display: 4.1 inch AMOLED, Driver: RM69A10, Resolution: RGB 568 x 1232
• LoRa Transceiver: Module: SX1262, Bands: 868, 915, 923MHz
• Camera: 2MP 1080P, Module: GC2093
• RAM: 32 LPDDR4, Capacity: 8Gb
• Wi-Fi Module: 2.4G, Name: RTL8189, IEEE 802.11 b/g/n 2.4GHz
• Ethernet Module: Name: RC01812, Connector: RJ45
• Dimensions: 104 x 51 x 15.5mm
• USB Charging: 5V 500mA

Package Includes

• 1x LILYGO T-Display K230 AI Development Core Board with 4.1 inch AMOLED Display - LR2021 868MHz LoRa Band - 8GB LPDDR4 RAM - 2MP 1080P Camera [K277]
