Name: LILYGO T-Sim Shield SX1262 868Mhz LoRa Development Board with RS485 and Multiple Ports (H783)
Brand: TTGO
SKU: 07675
Price: 4330.00 INR
Availability: OutOfStock

LILYGO T-Sim Shield SX1262 868Mhz LoRa Development Board with RS485 and Multiple Ports (H783)

TTGO

LILYGO T-Sim Shield SX1262 868Mhz LoRa Development Board with RS485 and Multiple Ports (H783)

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹4,330.00

₹3,669.49 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 37
B2B GST Credit Available

Price in reward points: 3669

Stock: 0 in Stock
SKU: 07675
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

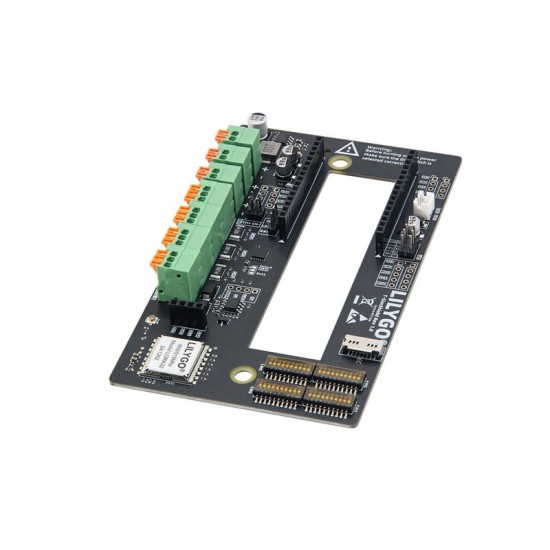

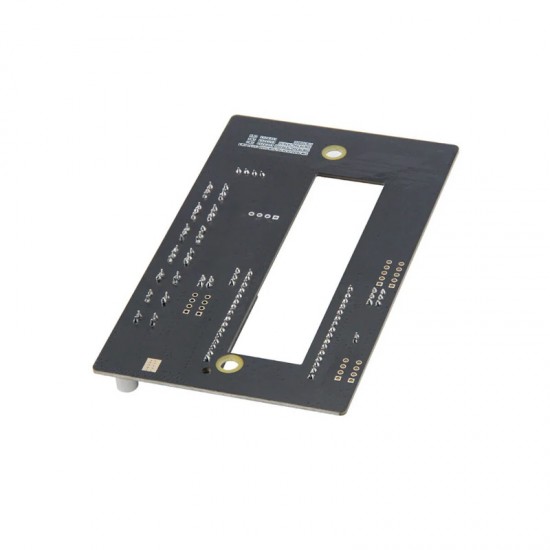

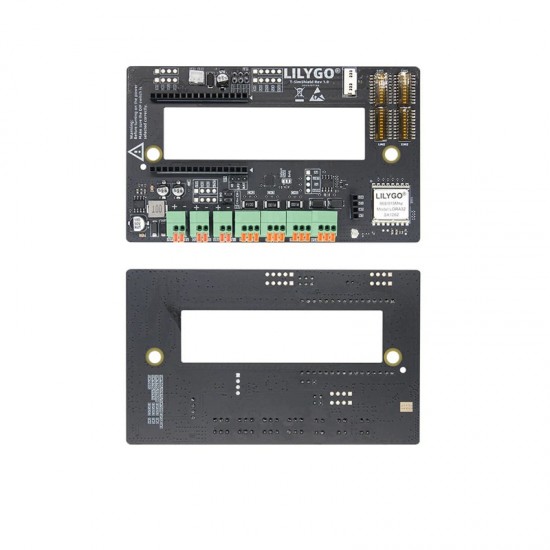

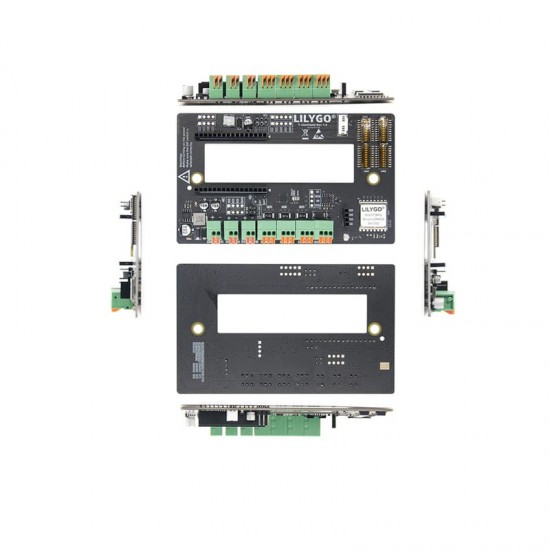

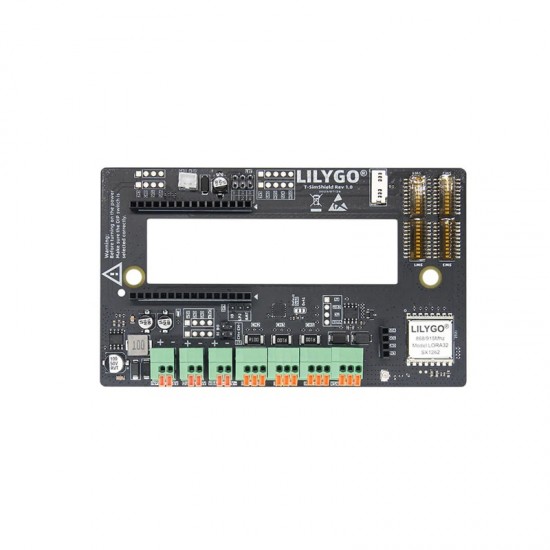

LILYGO T-Sim Shield SX1262 868Mhz LoRa Development Board with RS485 and Multiple Ports (H783)

The LILYGO T-Sim Shield SX1262 is a versatile IoT expansion board designed to enable long-range wireless communication using LoRa technology. Powered by the Semtech SX1262 LoRa transceiver operating at 868MHz, this development board is ideal for low-power, long-distance data transmission applications such as smart agriculture, industrial monitoring, asset tracking, and remote sensing.

Equipped with RS485 industrial communication support and multiple interface ports, the T-Sim Shield provides seamless connectivity for integrating sensors, controllers, and other peripherals. Its robust design makes it suitable for both prototyping and real-world deployments in demanding environments.

User Manual / Datasheet / Example Codes Etc.

Features

SX1262 LoRa Module: Reliable long-range communication at 868MHz with low power consumption
RS485 Interface: Industrial-grade communication for stable data transfer in harsh environments
Multi-Port Expansion: Supports UART, GPIO, and other interfaces for flexible integration
SIM Support (T-Sim Series): Enables cellular connectivity options for hybrid IoT solutions
High Compatibility: Designed to work with ESP32 and other development boards
Low Power Design: Suitable for battery-powered and remote applications
Compact & Durable: Ideal for embedded and industrial IoT projects

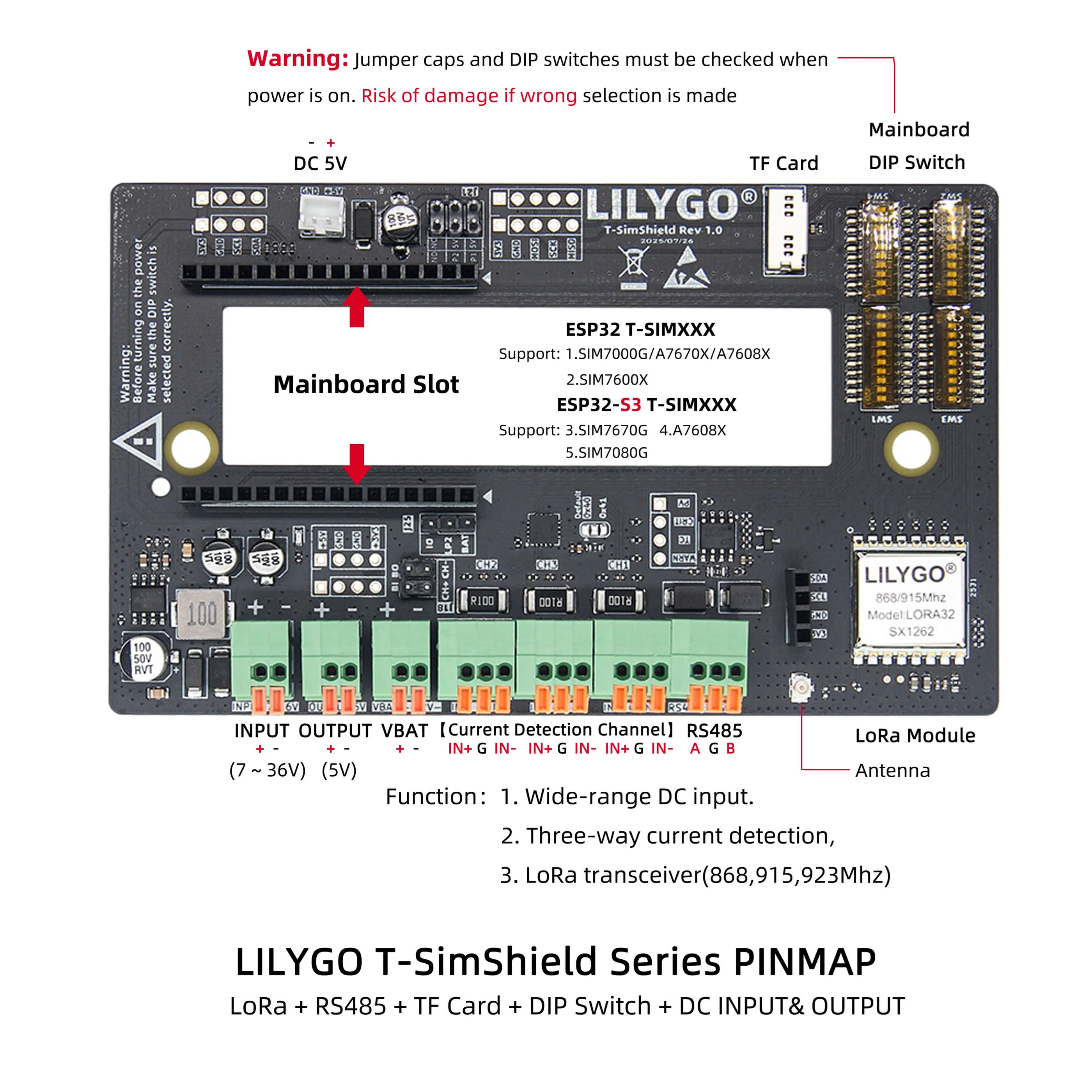

Specifications

LoRa Chipset: SX1262 (Semtech)
Frequency Band: 868 MHz
Communication Interfaces: RS485, UART, GPIO
Power Supply: 3.3V / 5V compatible (depending on host board)
Antenna Support: External LoRa antenna interface
Operating Temperature: Suitable for industrial environments
Form Factor: Shield/Expansion board
