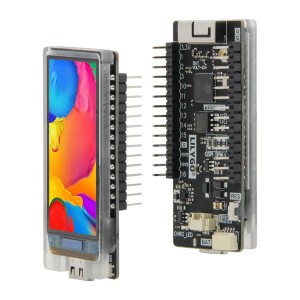

LILYGO T-Display S3 AMOLED Touch With 1.91inch AMOLED Screen Display Module - Solder Version (H705)

LILYGO T-Display S3 AMOLED Touch With 1.91inch AMOLED Screen Display Module - Solder Version (H705)

The LILYGO T-Display S3 AMOLED Touch with 1.91-inch AMOLED Screen Display Module is a state-of-the-art display solution designed to elevate visual experiences in embedded systems and IoT projects. Featuring a vibrant 1.91-inch AMOLED screen and responsive touch functionality, this module is ideal for applications requiring high-quality graphics and interactive displays.

This T-Display S3 AMOLED display comes with Touch function & soldered pin headers.

User Manual / Datasheet / Example Codes Etc.

Specifications

• MCU : ESP32-S3R8 Dual-core LX7 microprocessor
• Wireless Connectivity : 2.4 GHz Wi-Fi & Bluetooth5 (LE)
• Development : Arduino, PlatformIO-IDE, Micropython
• Touch Function
• Flash  : 6MB
• PSRAM : 8MB
• Bat Voltage Detection : IO04
• Onboard functions : Boot (IO00) + Reset + IO21 Button
• Resolution : 240 X RGB X 536(H)
• Interface : QSPI
• Active Area : 19.8*44.22mm
• Driver IC : RM67162
• Viewing Angle : IPS Full View Angle

1.91 inch RM67162 IPS AMOLED

• Resolution : 240 X RGB X 536(H)
• Interface : QSPI
• Active Area : 19.8*44.22mm
• Driver IC : RM67162
• Viewing Angle : IPS Full View Angle

Pin Daigram
