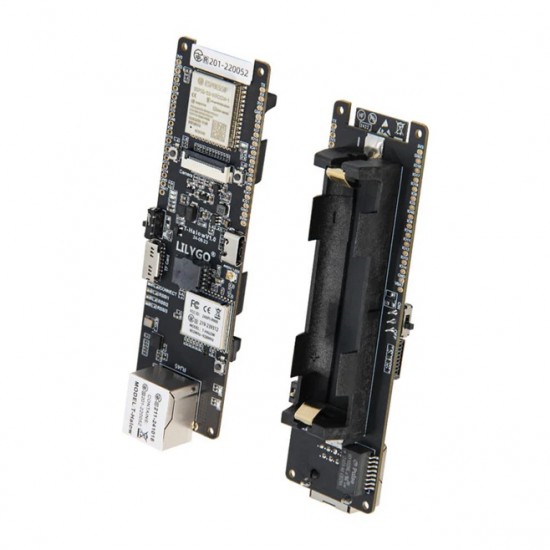

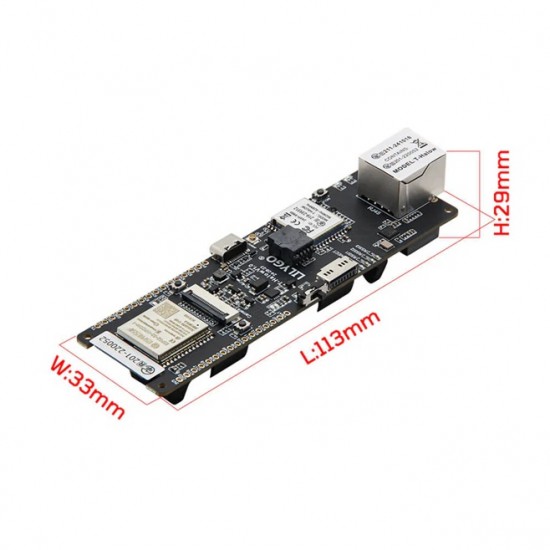

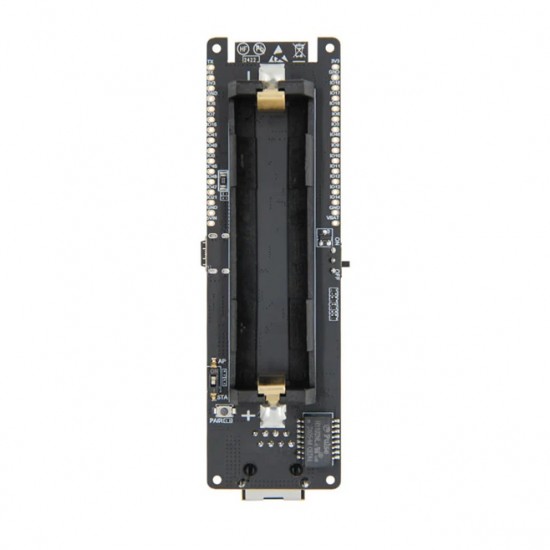

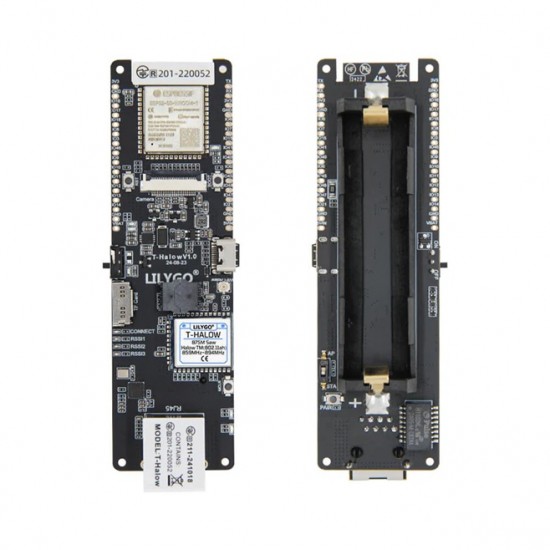

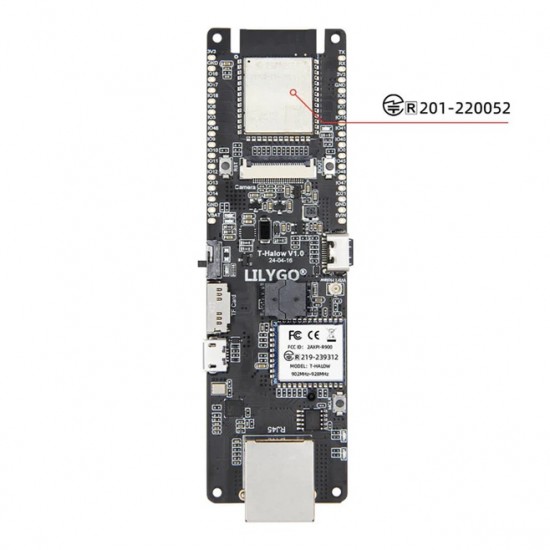

LILYGO T-Halow V1.0 ESP32-S3 + 868MHz LoRa + RJ45 Port Wireless Development Board (H766)
The LILYGO T-Halow V1.0 ESP32-S3 + 868MHz LoRa + RJ45 Port Wireless Development Board (H766) is a high-performance long-range wireless development board designed for IoT, industrial monitoring, remote sensing, and smart communication applications. Powered by the ESP32-S3 dual-core processor, this board combines Wi-Fi HaLow (802.11ah), traditional 2.4GHz Wi-Fi, Bluetooth 5 LE, and Ethernet connectivity in a compact platform for advanced embedded projects.
It features the ESP32-S3 MCU with 16MB Flash and 8MB PSRAM, providing ample memory and processing capability for AIoT, edge computing, and multimedia applications. The onboard Wi-Fi HaLow module operates in the sub-GHz band (868MHz variant), delivering significantly longer communication range and better wall penetration compared to standard Wi-Fi networks.
User Manual / Datasheet / Example Codes Etc.
Features
- ESP32-S3 dual-core LX7 processor up to 240MHz
- 16MB Flash + 8MB PSRAM
- 868MHz Wi-Fi HaLow (802.11ah) long-range wireless communication
- 2.4GHz Wi-Fi and Bluetooth 5 LE support
- RJ45 Ethernet port for wired networking
- Camera interface support for OV2640 / OV5640 modules
- TF card slot for data storage
- USB Type-C programming and power interface
- External antenna support for extended wireless coverage
- Compatible with Arduino IDE, PlatformIO, and ESP-IDF
- Suitable for smart agriculture, industrial IoT, surveillance, telemetry, and remote sensing applications
Specifications
- MCU: ESP32-S3
- Flash: 16MB
- PSRAM: 8MB
- Wireless protocol: 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
- Programming Platform: Arduino-IDE, VS Code, ESP-IDF
- Onboard functions: TF-Card, BOOT + Reset, 18650

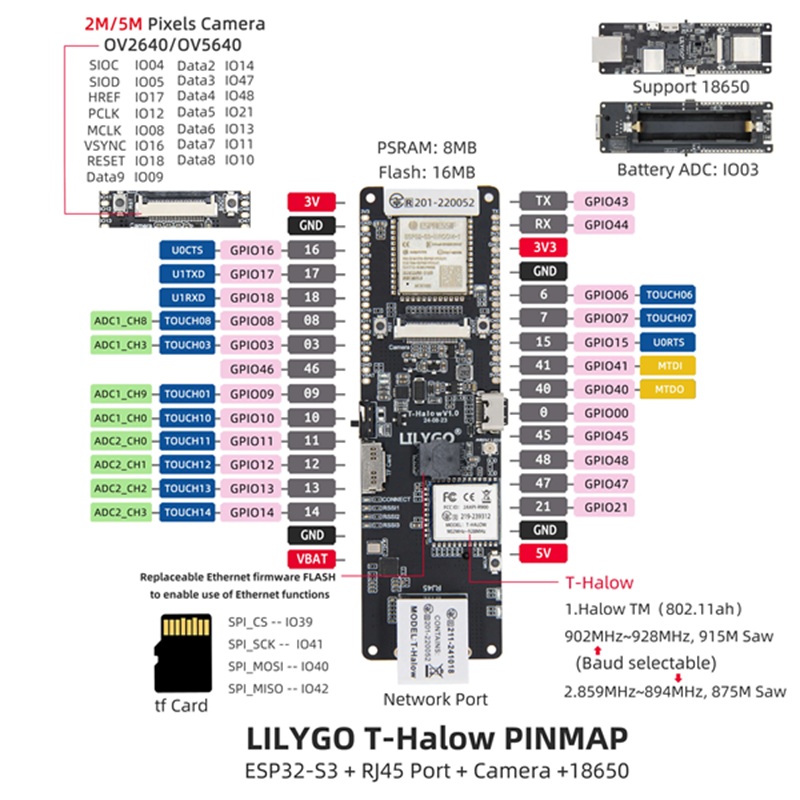

Pin Diagram
