LILYGO T3 TCXO ESP32 + 868MHz LoRa Wireless Wi-Fi Bluetooth Development Board with 0.96 inch OLED LCD (Q442)


The LILYGO T3 TCXO ESP32 + 868MHz LoRa Wireless Wi-Fi Bluetooth Development Board with 0.96-inch OLED LCD is a compact and versatile IoT development platform designed for long-range wireless communication and smart embedded applications. Powered by the ESP32 dual-core processor, this board integrates Wi-Fi and Bluetooth connectivity along with a high-performance 868MHz LoRa module, enabling reliable, low-power data transmission over extended distances.

Equipped with a built-in TCXO (Temperature Compensated Crystal Oscillator), the board ensures enhanced frequency stability for LoRa communication, making it ideal for precision IoT deployments such as smart agriculture, remote monitoring, and industrial automation. The onboard 0.96-inch OLED display provides clear real-time data visualization, simplifying debugging and user interaction without the need for external screens.

The development board supports multiple communication interfaces and offers excellent compatibility with popular development environments like Arduino IDE and ESP-IDF. Its compact design, low power consumption, and robust wireless capabilities make it a perfect choice for developers building LoRa-based IoT networks, sensor nodes, and wireless control systems.


User Manual / Datasheet / Example Codes Etc.


Specifications

  • MCU: ESP32
  • Flash: 4MB
  • Wireless protocol: Wi-Fi + Bluetooth V4.2+ BLE
  • Onboard functions: Reset + Boot Button, Support TF Card
  • Support: USB/3.7V Lipo battery power supply, battery switch


0.96 inch SSD1306 Driver I2C OLED

  • Resolution: 128x64
  • I2C interface: SDA--IO21 SCL--IO22

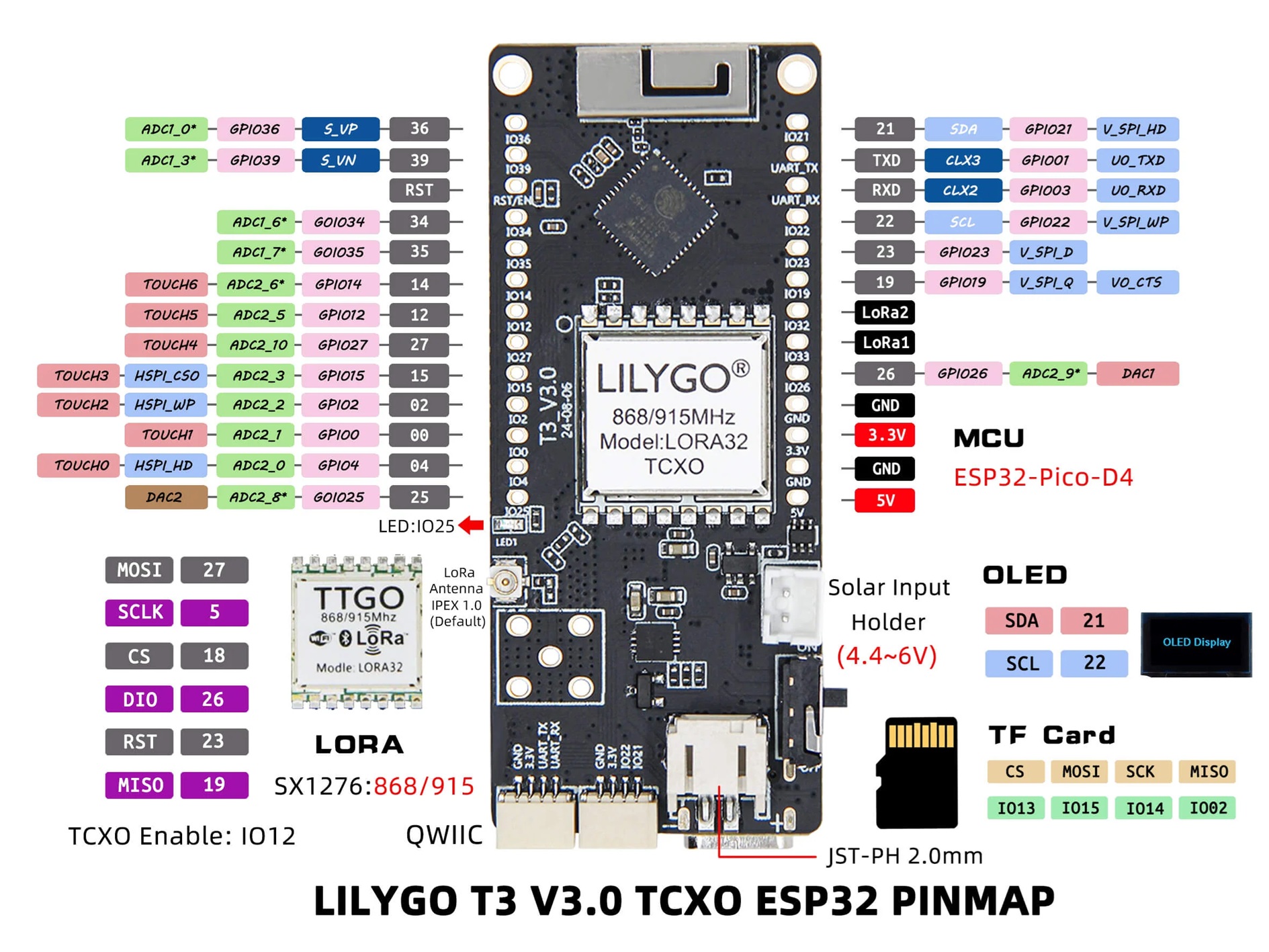

Pin Diagram

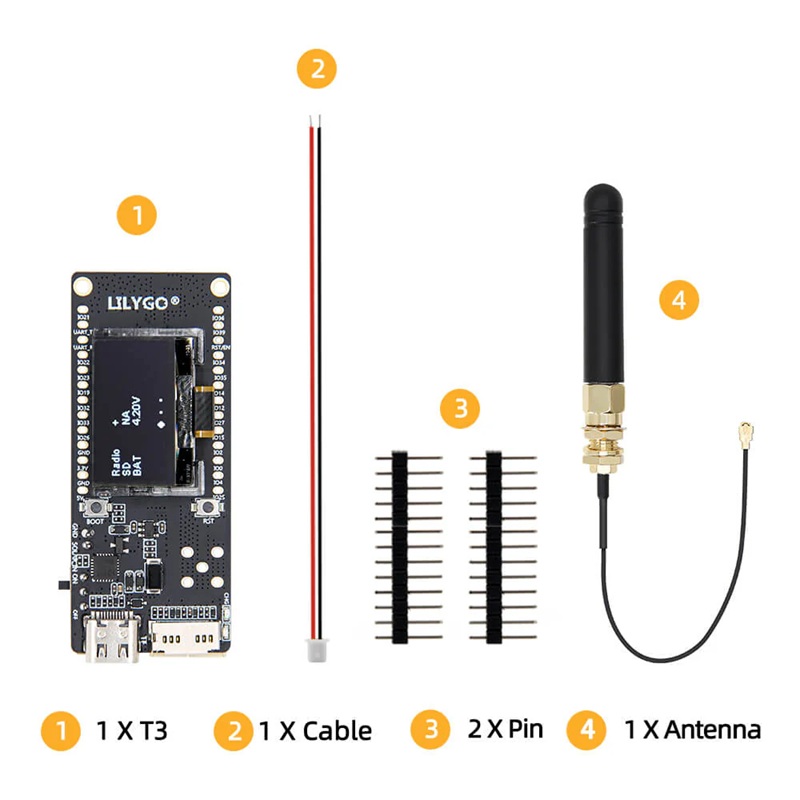

Package Includes
