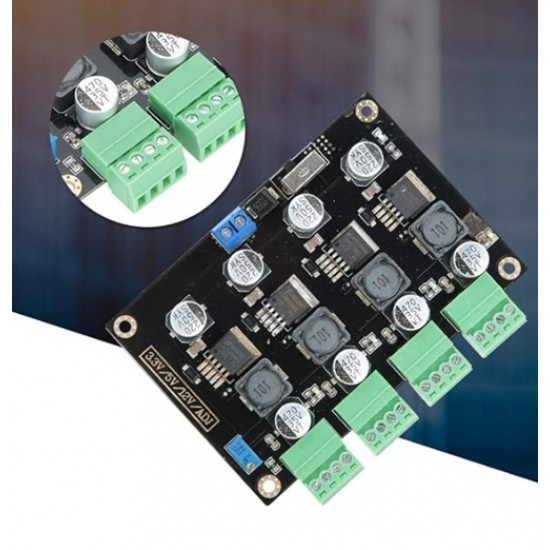

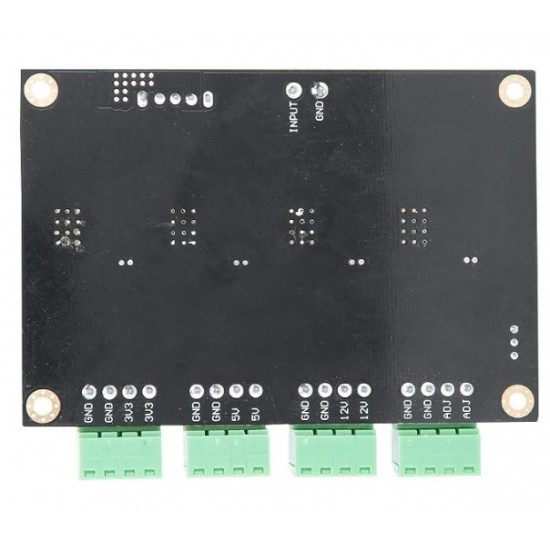

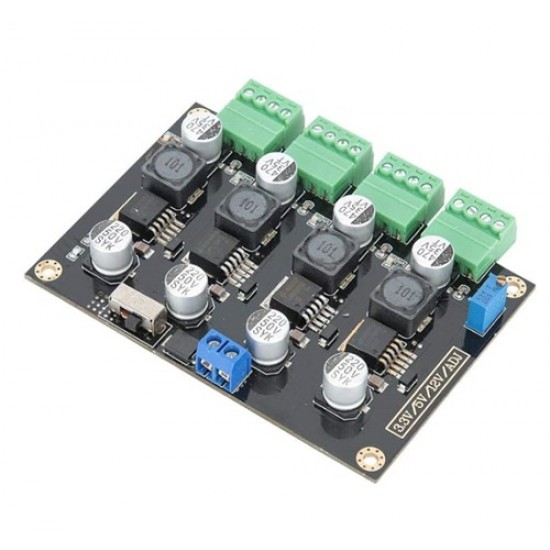

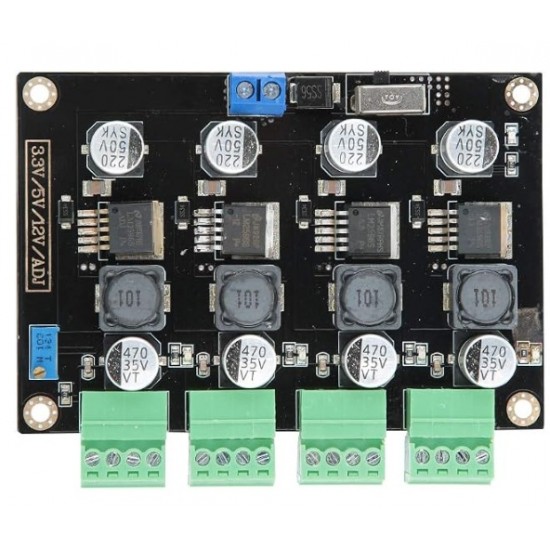

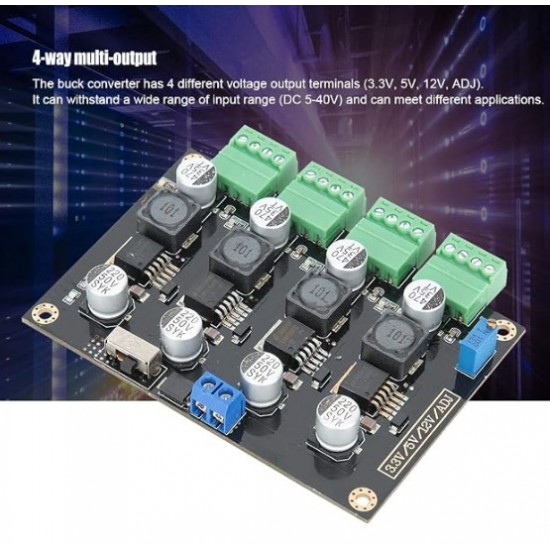

LM2596 Multi-Channel Switching Power Supply Module – 4-Output 3.3V/5V/12V/Adjustable DC-DC Buck Converter
The LM2596 Multi-Channel Switching Power Supply Module is a compact and efficient DC-DC step-down (buck) converter designed to provide four independent output voltages simultaneously from a single DC input. Based on four LM2596 switching regulator ICs, it delivers fixed 3.3V, 5V, 12V, and one adjustable output, making it ideal for powering multiple electronic devices, development boards, sensors, motors, and industrial control systems from a single power source.
With high conversion efficiency, low heat generation, and stable voltage regulation, this module is perfect for Arduino, Raspberry Pi, ESP32, STM32, robotics, IoT projects, communication equipment, LED lighting, and laboratory power distribution. The compact PCB design includes reverse polarity protection, status LEDs, and dedicated output terminals for convenient wiring and reliable operation.
Features
- Four independent output channels on a single module
- Fixed outputs: 3.3V, 5V, and 12V
- One adjustable output (approximately 1.25V to Input − 1.5V)
- Based on four LM2596 high-efficiency buck converter ICs
- Up to 3A maximum per output channel
- High conversion efficiency (typically up to 85–90%)
- Low ripple and stable output voltage
- Reverse polarity protection
- Power indicator LED
- Compact PCB with mounting holes
- Ideal for powering multiple voltage rails simultaneously
Specifications
- Module Type: DC-DC Buck (Step-Down) Converter
- Controller IC: LM2596
- Input Voltage: 13V–32V DC
- Fixed Outputs: 3.3V/5V/12V
- Adjustable Output: Approximately 1.25V to (Input − 1.5V)
- Maximum Output Current: 3A per channel
- Combined Output Current: Up to 5A total
- Switching Frequency: 150kHz
- Conversion Efficiency: Up to 85–90%
- Protection: Reverse polarity, thermal shutdown, current limiting (LM2596 IC)
- Applications: Arduino, ESP32, Raspberry Pi, STM32, robotics, IoT, LED lighting, industrial automation, communication equipment, laboratory power supplies, embedded systems.
