Luckfox Aura 4GB Ram + No eMMC High-Performance Linux Development Board, Rockchip RV1126B Quad-Core 1.6GHz Processor, 3 TOPS Computing Power, 4K Encoding And Decoding, Luckfox-Aura-04000

The Luckfox Aura is a high-performance Linux development board designed for AI, multimedia, and embedded edge-computing applications. Powered by the Rockchip RV1126B quad-core processor running at up to 1.6GHz, this board delivers exceptional performance combined with 3 TOPS AI computing power, making it ideal for intelligent vision, automation, and smart device development.

Equipped with 4GB RAM and no onboard eMMC, the Luckfox Aura offers flexible storage expansion via external memory solutions, allowing developers to tailor storage capacity based on application needs. The board supports 4K video encoding and decoding, enabling high-quality video processing for surveillance systems, AI cameras, and multimedia applications.

Running a full Linux operating system, the Luckfox Aura provides a rich software ecosystem for rapid development and deployment. With its compact form factor and powerful processing capabilities, it is well-suited for edge AI, smart cameras, industrial automation, robotics, and IoT gateways.

User Manual / Datasheet / Example Codes Etc.

Specifiatons

Model: Luckfox-Aura-04000
SOC: RV1126B
Processor: Quad-core Arm [email protected]
NPU: 3 TOPS，supports int4、int8、int16 and FP16
Video CODEC: Supports H264/H265 video encoding/decoding
ISP: Maximum 12M@30fps input
Memory: 4GB LPDDR4X RAM
Wireless Connectivity: 2.4GHz/5GHz WiFi6 & Bluetooth 5.4/BLE
Storage: No eMMC available on this variant
POE Port: IEEE 802.3af PoE
Ethernet: 10/100/1000 M Ethernet controller and embedded PHY
Camera Interface: 2 x MIPI CSI 4-lane
Audio: 1 x Onboard microphone & 1 x 3.5mm audio jack (headphone/microphone combo)
USB: 1 x USB3.0 OTG Type-C & 4 x USB HOST 2.0 (HUB expansion)
RTC: 1 x RTC Port（SH1.0-2P）
Storage Expansion: 1 x MicroSD slot
System: Buildroot、Debian13
Power Input: 5V DC
GPIO: 40PIN header (compatible with some Raspberry Pi HATs)

Package Includes

Luckfox-Aura-04000 x1
SH1.0 3PIN cable ~100mm x2
IPEX 4 to SMA cable x2
6DB antenna x2
USB Type-A to Type-C cable ~1m x1

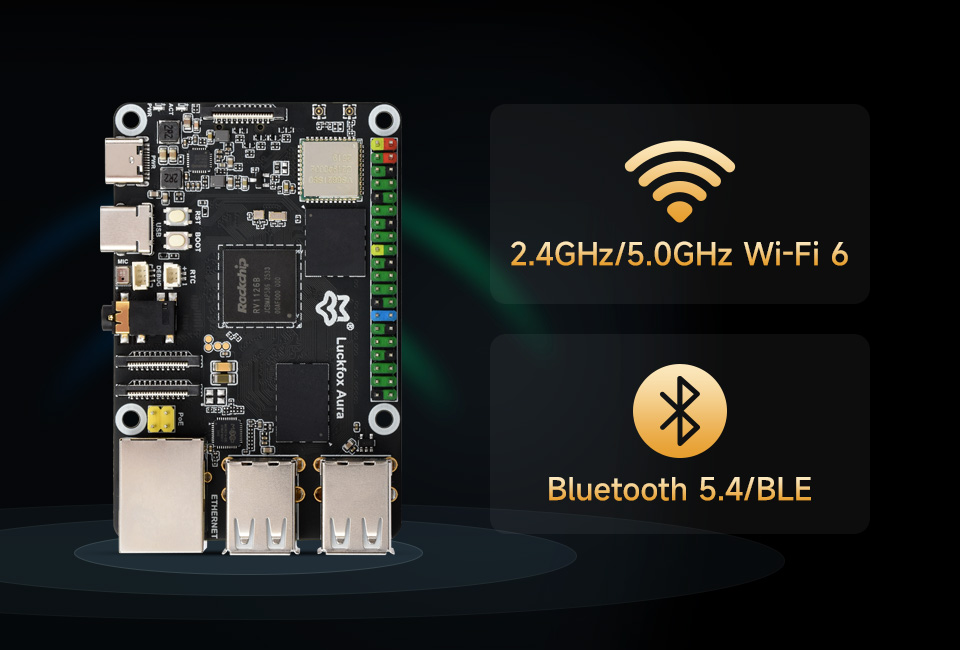

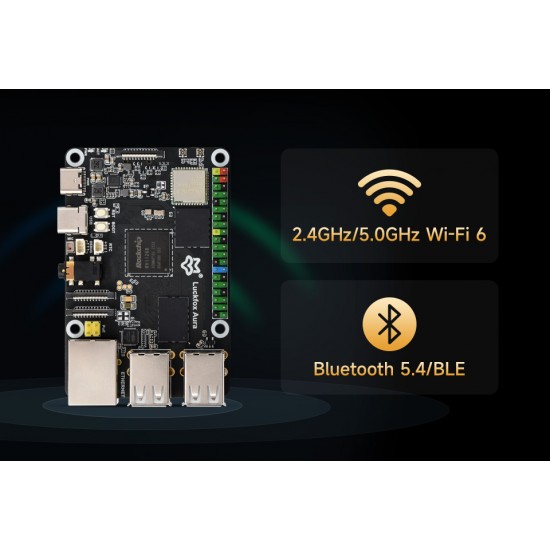

Wi-Fi 6 and Bluetooth module

Onboard 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.4/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

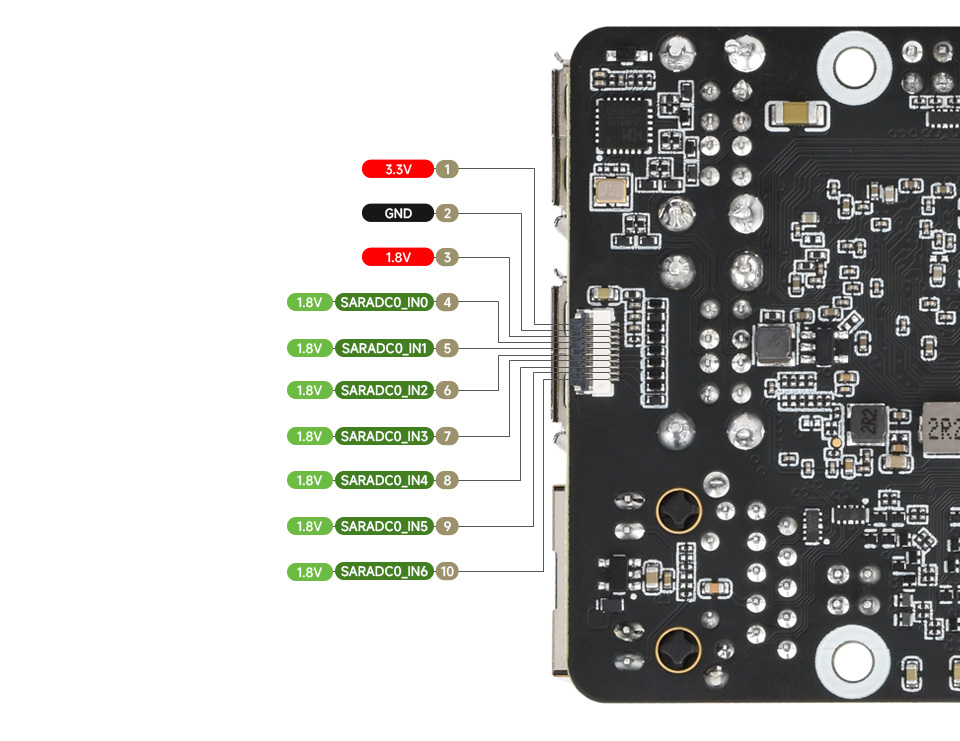

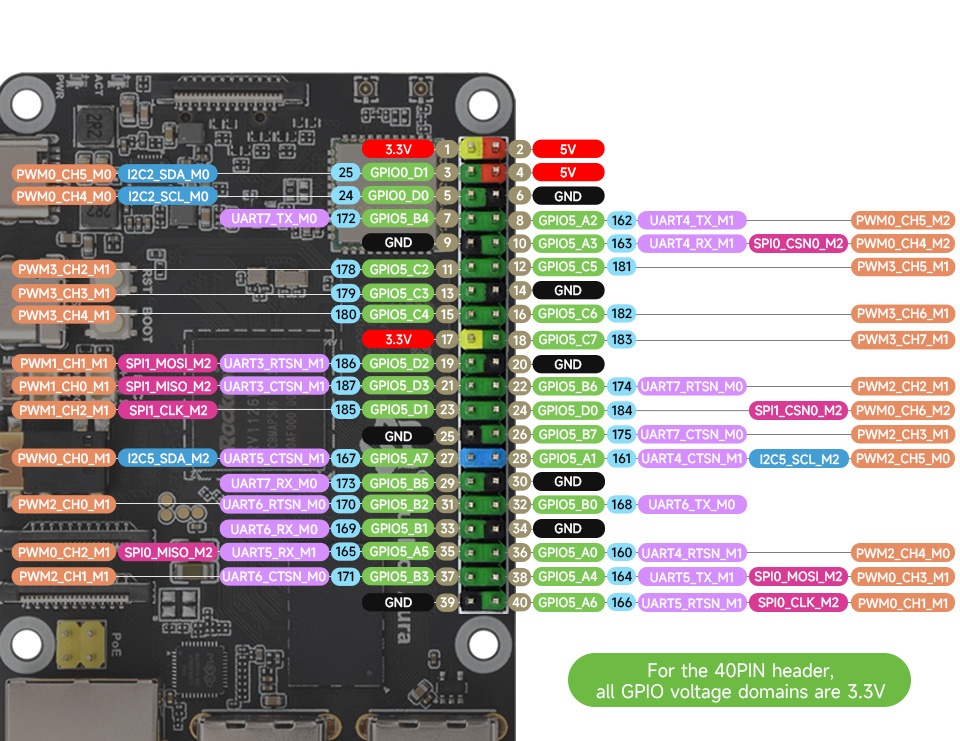

Pin definition

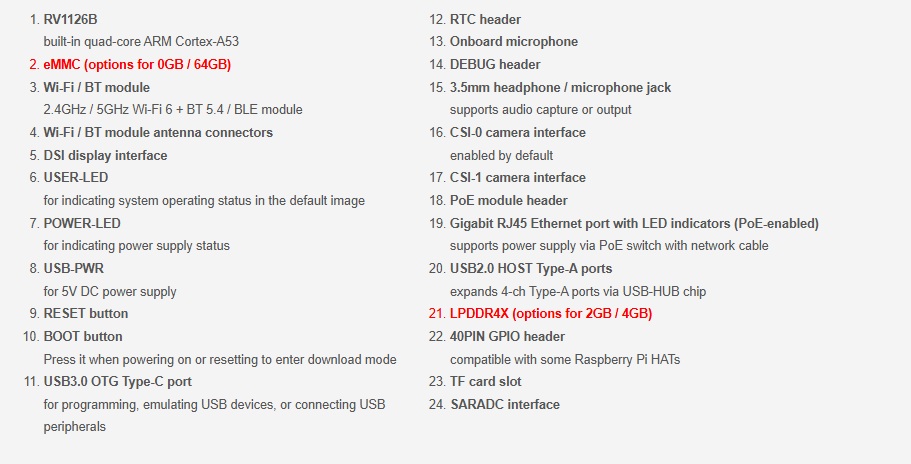

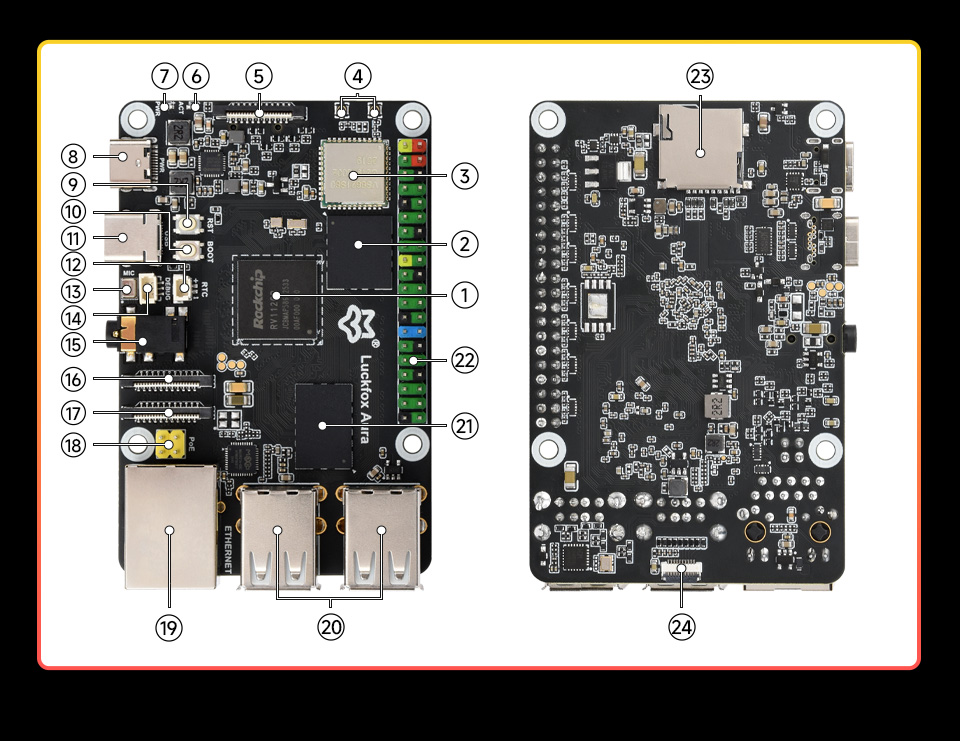

What's On Board

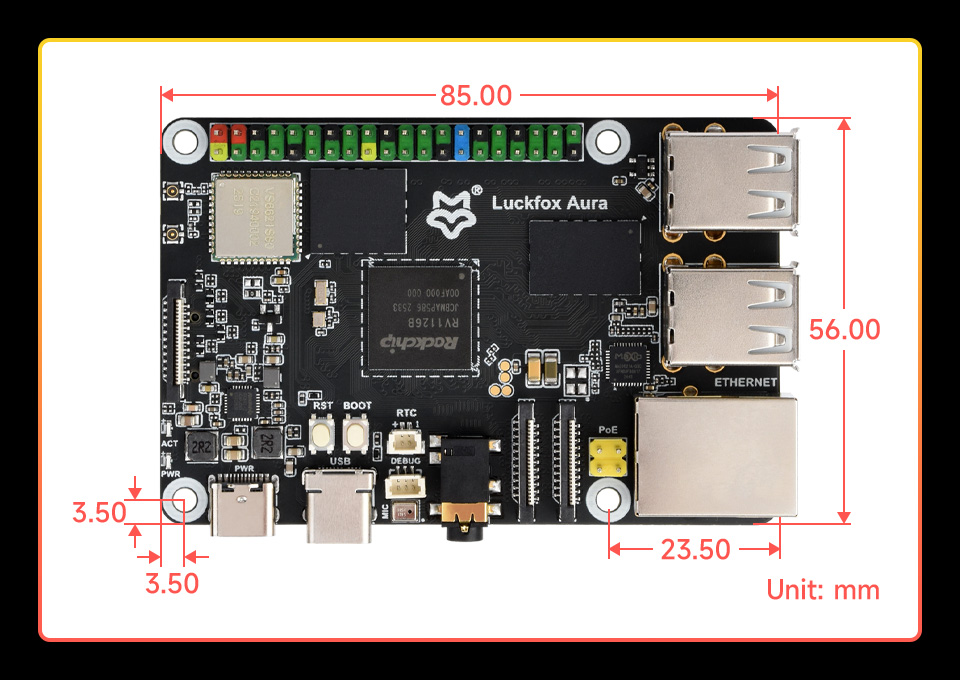

Dimensions
