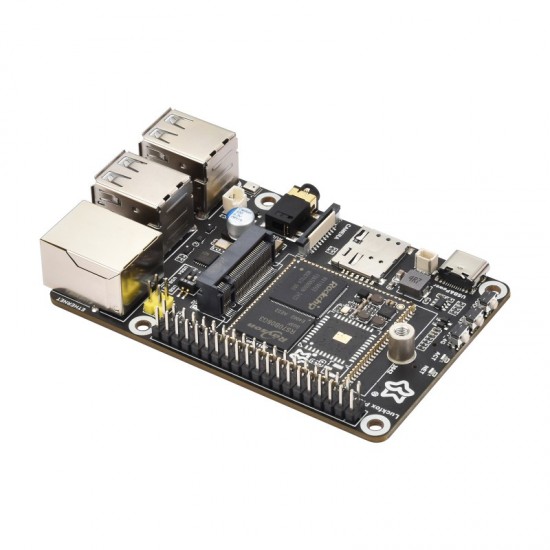

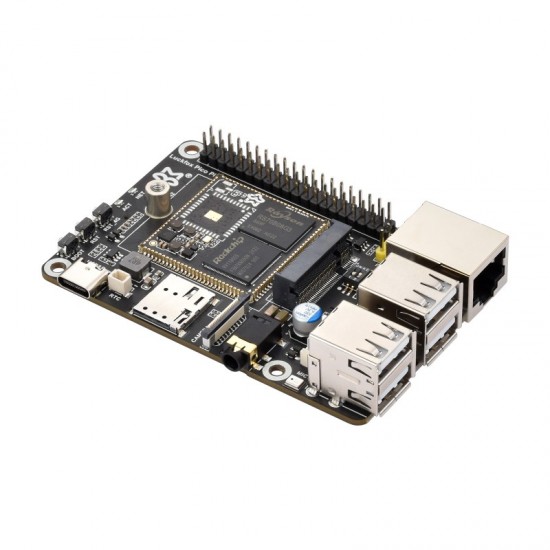

Luckfox Pico Pi A 256MB Ram + 8GB eMMC No Wireless Linux Micro Development Board - Based On Luckfox RV1106G3

Luckfox Pico Pi A 256MB Ram + 8GB eMMC No Wireless Linux Micro Development Board - Based On RV1106G3 - Supports Intelligent Encoding, Built-in Self-developed Third-generation ISP3.2 [ SIM7600G-H-M.2 4G module Not Included]

The Luckfox Pico Pi is a cost-effective Linux micro development board, based on the Luckfox Core1106 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, 12C, USB, and an M.2 slot for 4G module, etc., which is ideal for a wide range of embedded applications.

Note: This version does not include wireless connectivity (Wi-Fi and Bluetooth are not supported on this version)

User Manual / Datasheet / Example Codes Etc.

Specifications

• Model: Luckfox Pico Pi A
• Processor: RV1106G3
• NPU: 1TOPS
• Memory: 256MB DDR3L
• eMMC: 8GB
• VEPU: Supports H264/H265 video encoding
• ISP: Maximum 5M @30fps input
• Wi-Fi+Bluetooth: Not available on this version
• POE Port: IEEE 802.3af PoE
• Ethernet: 10/100M Ethernet controller and embedded PHY
• Camera Interface: 1 x MIPI CSI 2-lane
• Audio:
• 1 x Surface-mount microphone
• 1 x Microphone expansion port (MX1.25mm-2P)
• 1 x 3.5mm audio output

• USB:
• 1 x USB Device
• 4 x USB HOST 2.0 (HUB expansion)

• RTC: 1 x RTC Port（SH1.0-2P）
• Storage Expansion: 1 x MicroSD slot (storage-only, no system boot support)
• Mobile Connectivity:

• 1 x Nano SIM slot
• 1 x 4G module M.2 slot (supports SIM7600G-H-M.2 4G module)

• GPIO: Based on Raspberry Pi 40Pinout

Package Includes

• Luckfox Pico Pi A x1
• 4G Module mounting screw x1

Pin definition

What's On Board

Dimensions
