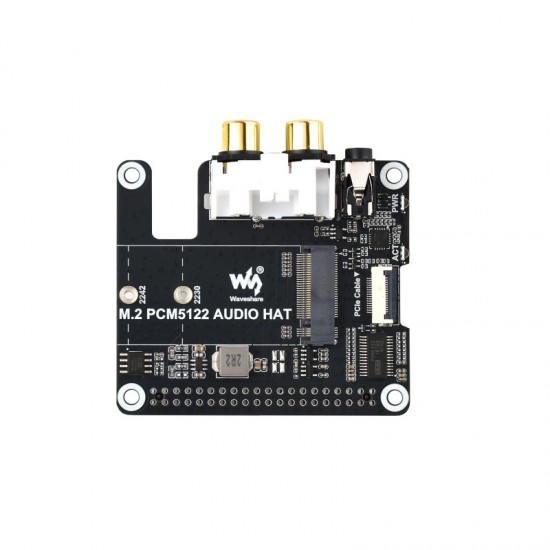

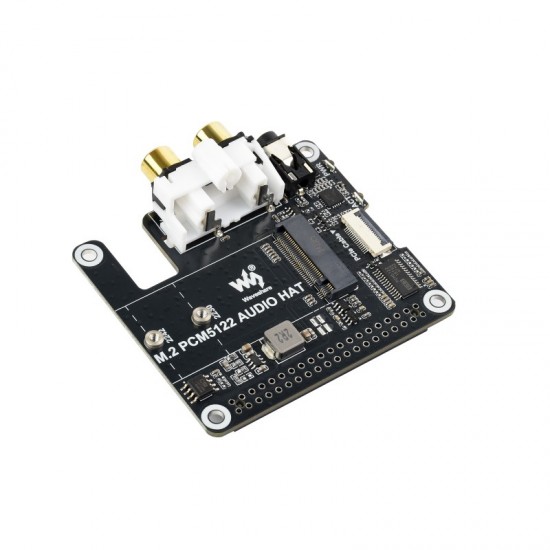

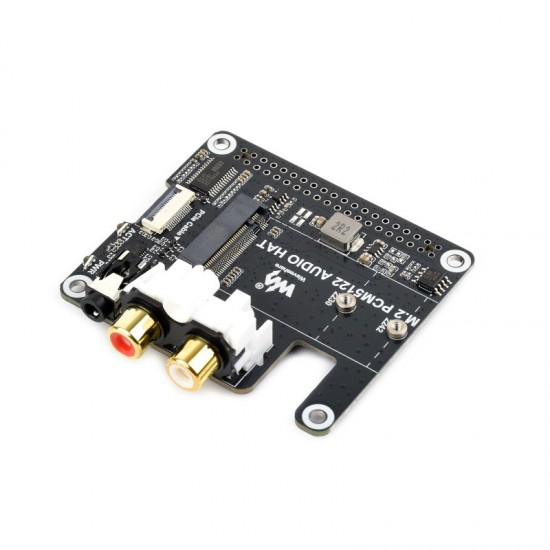

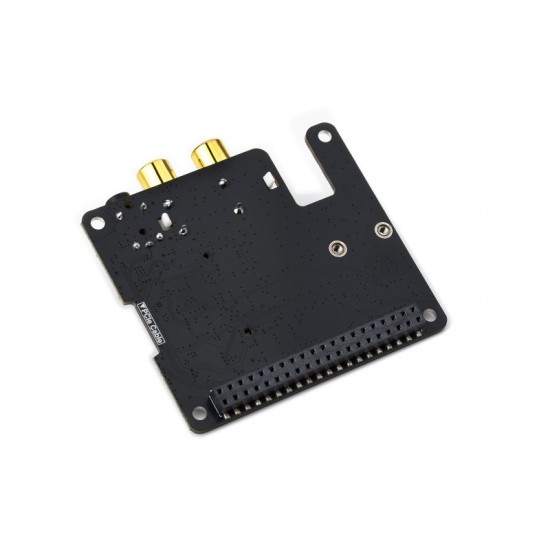

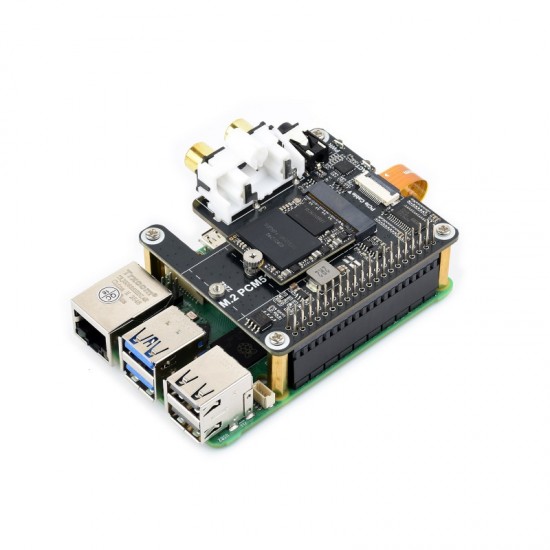

PCIe To M.2 HAT With I2S Audio Extension For Raspberry Pi, Supports NVMe Protocol Solid State Drive, Onboard 3.5mm Headphone Jack And RCA Connector, Driver-free

Upgrade your Raspberry Pi with this versatile PCIe to M.2 HAT, designed to expand both storage and audio capabilities in a compact form factor. Supporting NVMe protocol solid-state drives, this HAT enables high-speed data transfer and reliable storage performance, making it ideal for data-intensive applications such as media servers, edge computing, and IoT projects.

In addition to storage expansion, the board features an integrated I2S audio extension, delivering high-quality digital audio output. With an onboard 3.5mm headphone jack and RCA connectors, it provides flexible audio connectivity options for headphones, speakers, or external audio systems.

The HAT is driver-free, ensuring a seamless plug-and-play experience with compatible Raspberry Pi boards. Its efficient design allows easy installation while maintaining stable performance for both storage and audio functions.

User Manual / Datasheet / Example Codes Etc.

Features

Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
Built-in RCA connector for use with speaker and other devices in a variety of scenarios
Supports sampling frequency up to 384KHz
Supports up to 32-bit resolution audio data
Supports 2230 / 2242 size M.2 Solid State Drive or M.2 M KEY AI module
Supports M.2 M KEY with up to 8 Gbps data rate

Specifications

Product Type: PCIe to M.2 HAT with I2S Audio Expansion
Compatibility: Raspberry Pi boards with PCIe interface support (e.g., Raspberry Pi 5 / CM4 with carrier board)
Storage Interface: M.2 M-Key slot
Supported SSD Type: NVMe protocol solid state drives
PCIe Interface: PCIe Gen2 (via Raspberry Pi PCIe interface)
Audio Interface: I2S digital audio
Audio Output Ports:
3.5mm headphone jack
RCA (Left & Right channel) connectors
Audio Codec: Onboard I2S audio codec (hardware-based decoding)
Driver Support: Driver-free (plug and play on supported OS)
Power Supply: Powered via Raspberry Pi HAT interface
Mounting: Standard Raspberry Pi HAT form factor with mounting holes
Operating System Support: Raspberry Pi OS and other compatible Linux distributions
Use Cases: Media center, NAS, audio playback system, edge computing, IoT applications

Package Includes

M.2 PCM5122 AUDIO HAT x1
2*20pin header 2.54 mm pitch x1
16P-Cable-40mm x1
Screws pack x1

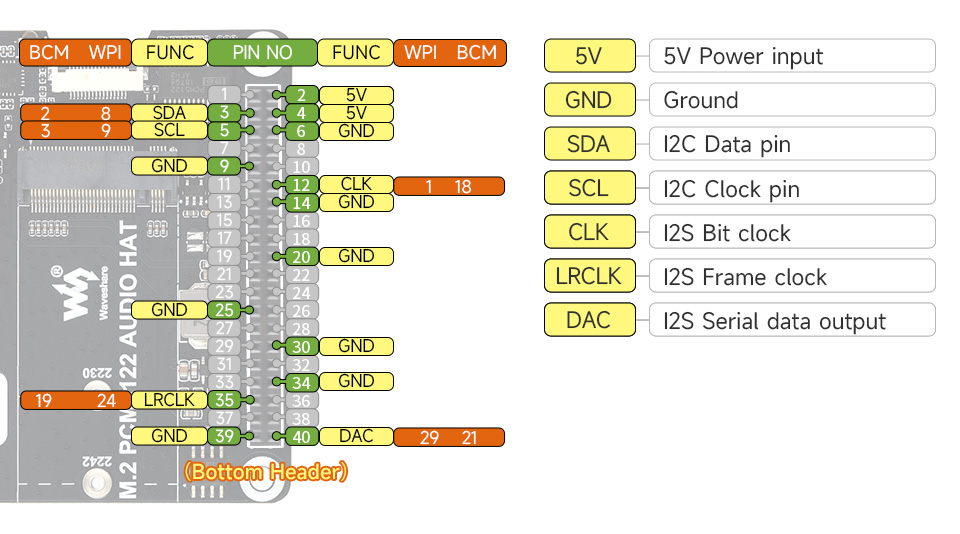

Pin Definition

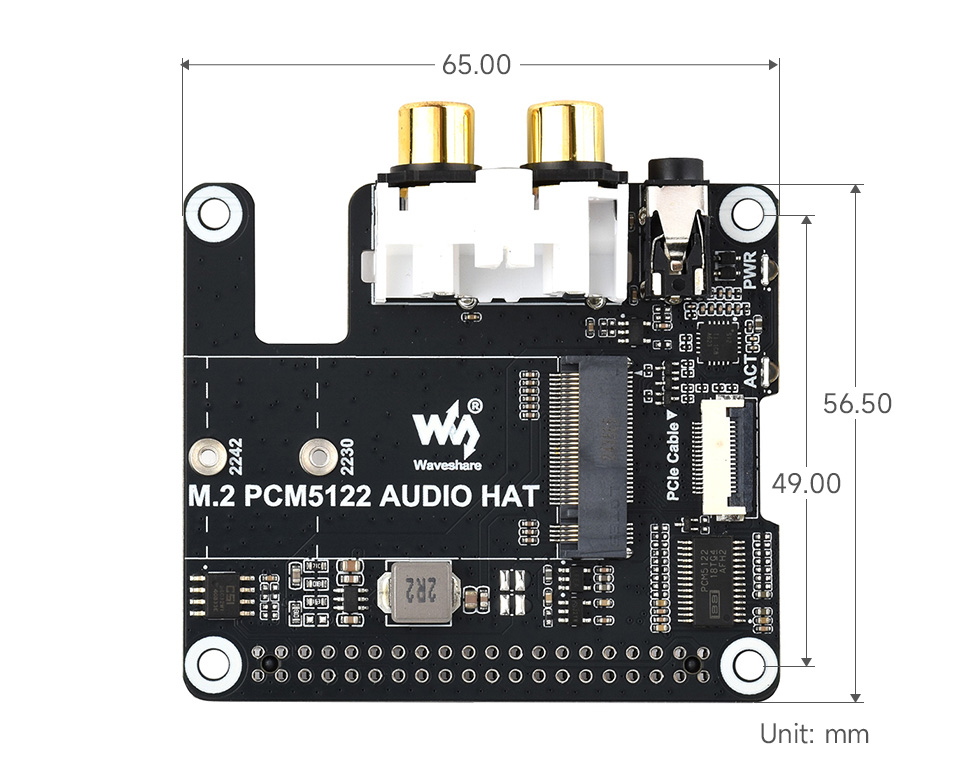

Dimensions
