Waveshare MAX-M8Q GNSS HAT for Raspberry Pi, Multi-constellation Receiver Support, GPS, Beidou, Galileo, GLONASS

The MAX-M8Q GNSS HAT for Raspberry Pi is a high-performance satellite positioning expansion board based on the u-blox MAX-M8Q GNSS module. It supports multiple global navigation satellite systems including GPS, BeiDou, Galileo, and GLONASS, allowing concurrent reception of up to three satellite constellations for faster positioning, improved accuracy, and enhanced reliability. Designed specifically for Raspberry Pi boards, this HAT provides an easy way to add real-time location tracking, navigation, and timing functions to embedded and IoT applications.

The board features excellent sensitivity up to -167dBm for reliable signal reception even in challenging environments, along with anti-spoofing and anti-jamming capabilities for stable operation. It supports augmentation systems such as SBAS, QZSS, IMES, and D-GPS to improve positioning precision. With Assisted GNSS (A-GNSS) support, the module significantly reduces the time-to-first-fix for quicker satellite acquisition after startup.

User Manual / Datasheet / Example Codes Etc.

Features

Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption
Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
Supports U-Center, an easy way to config the module
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard USB TO UART converter CP2102 for serial debugging
Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
Baudrate range: 4800~921600bps (9600bps by default)
Supports DDC (I2C compliant) interface: up to 400KHz (max)

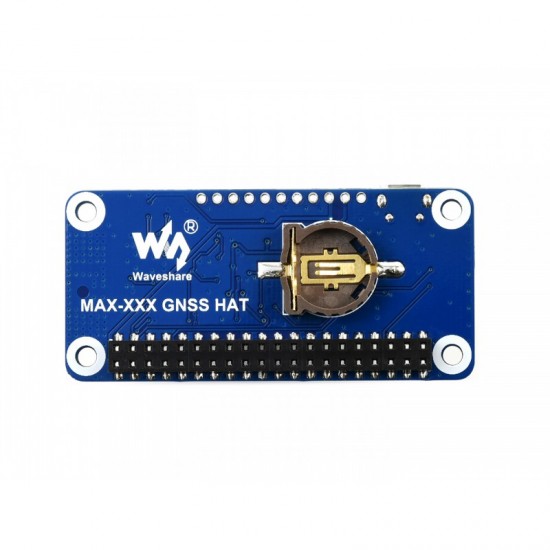

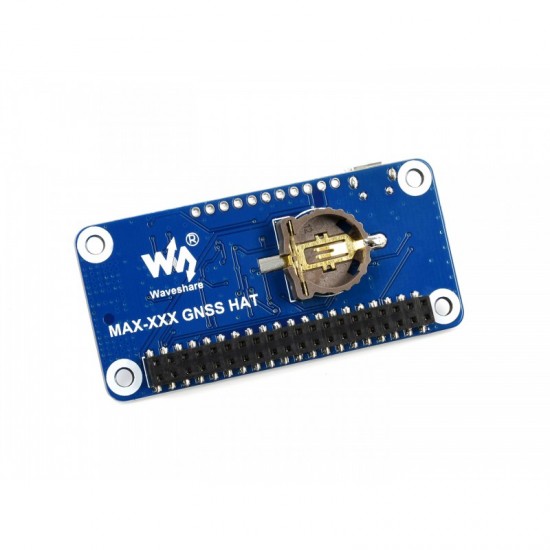

Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
4x LEDs for indicating the module operating status
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Communication interface: UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate: 1Hz (default), 18Hz (max)
Protocol: NMEA 0183 Version 4.0 (V2.1, V2.3 or V4.1 selectable), UBX, RTCM 2.3
Power supply: 5V
Overall current: <40mA@5V (Continue mode)
Module current: 23mA@3V (Continue mode, tracking status)
Operating temperature: -40℃ ~ 85℃
Dimensions: 65mm × 30.5mm

Package Includes

MAX-M8Q GNSS HAT

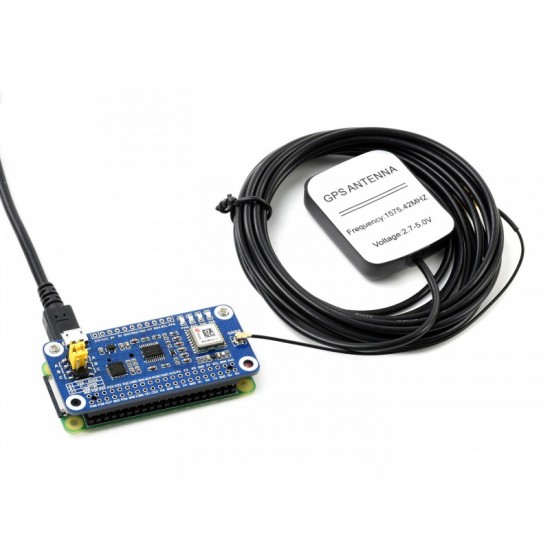

GPS External Antenna (B)
USB-A to Micro-B cable
RPi screws pack (2pcs)
2x20PIN female header

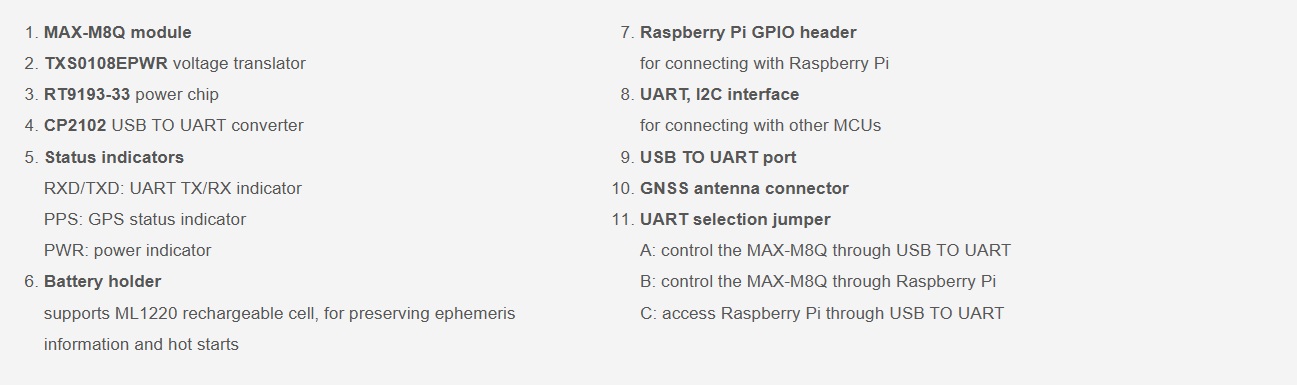

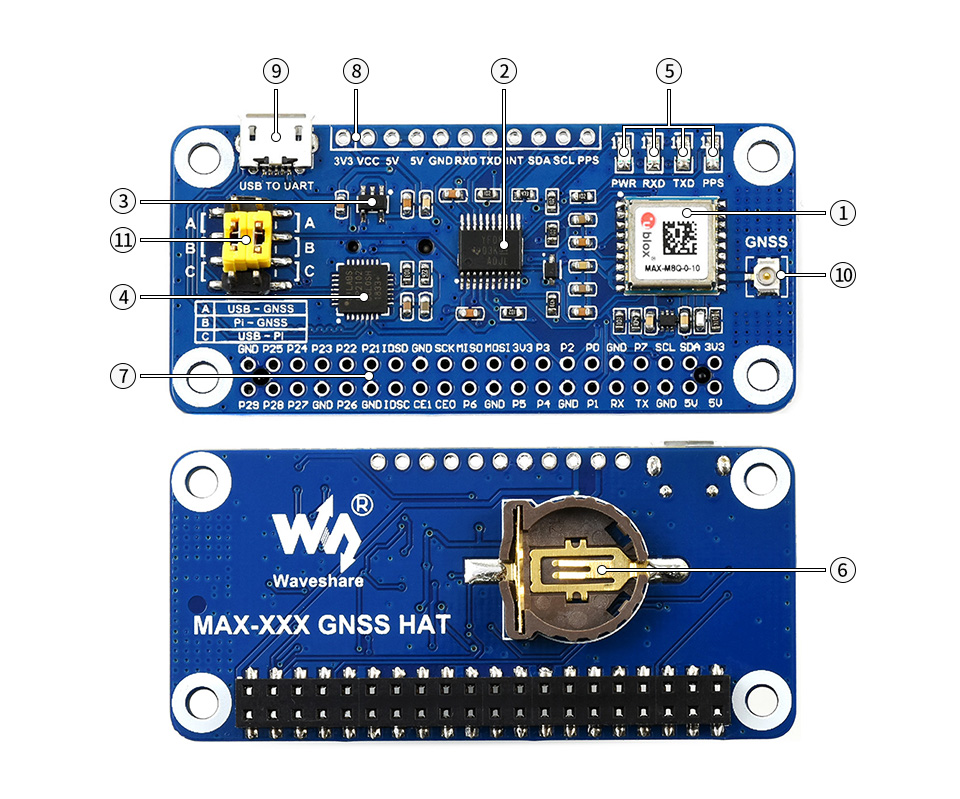

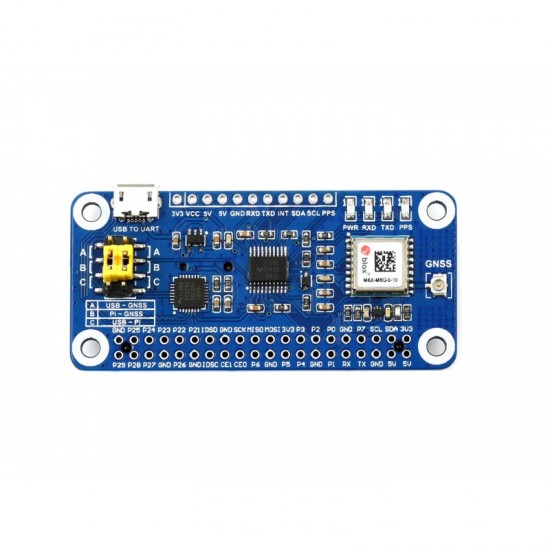

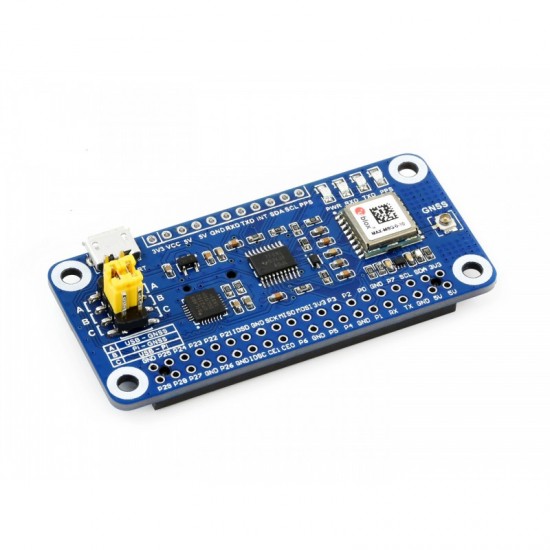

What's on board

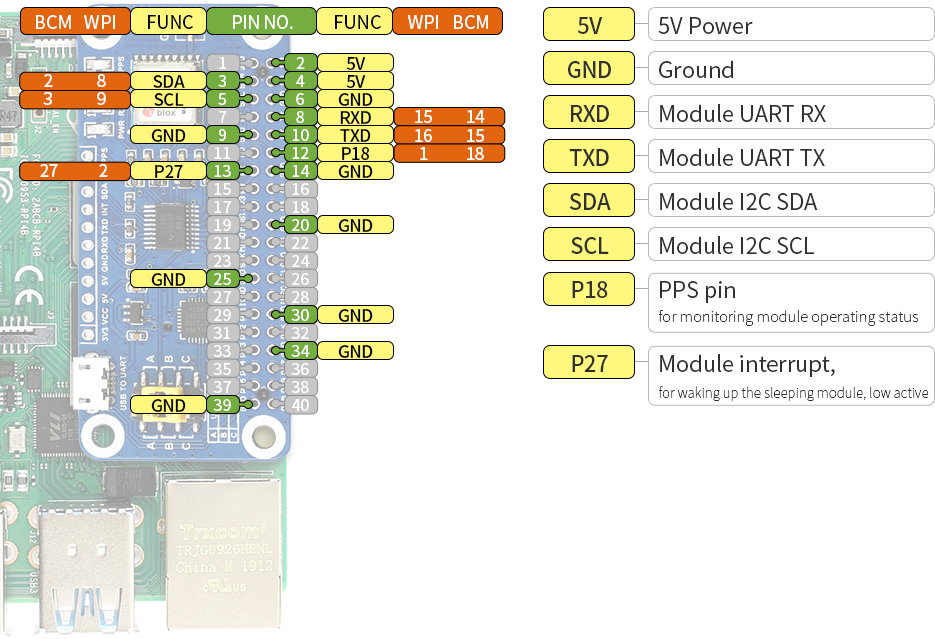

Pinout Definition

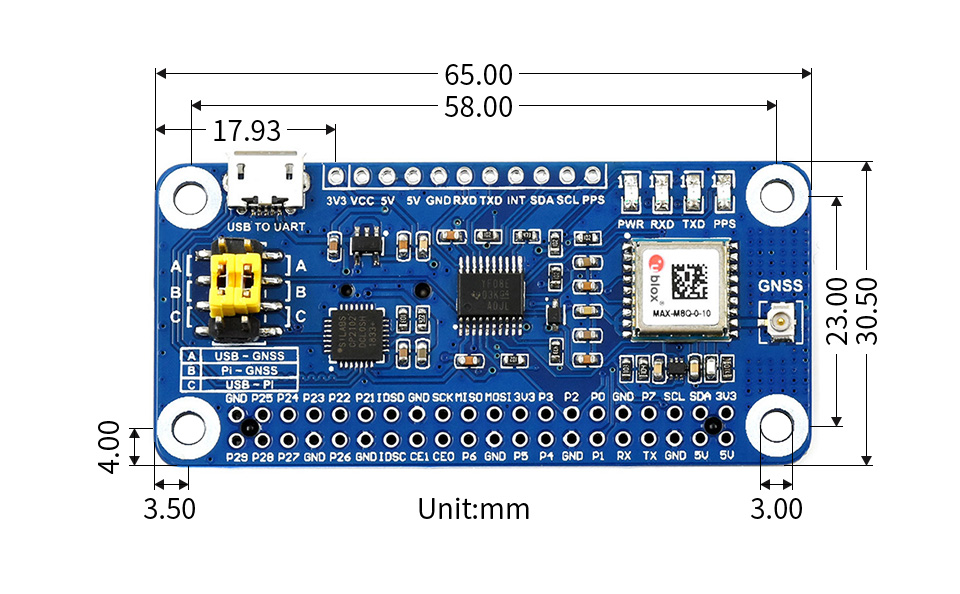

Dimensions
