Waveshare Industrial 8-Ch Ethernet Digital Input/Output Module, Modbus RTU / TCP Protocol, Supports PoE Power Supply, With Various Isolation And Protection Circuits

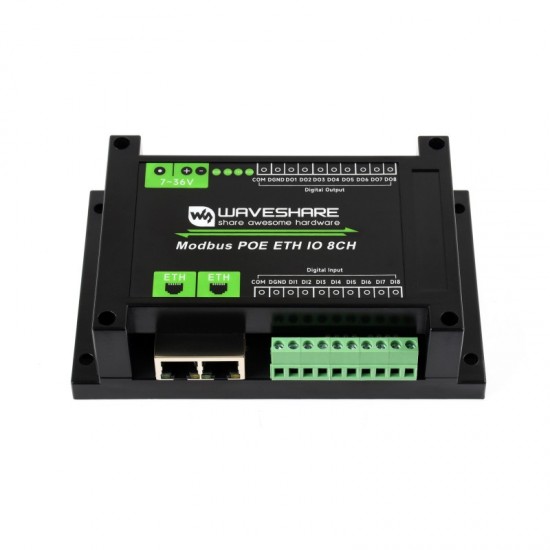

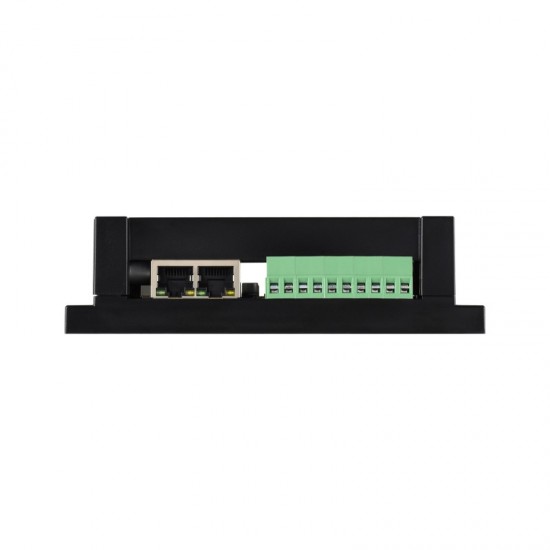

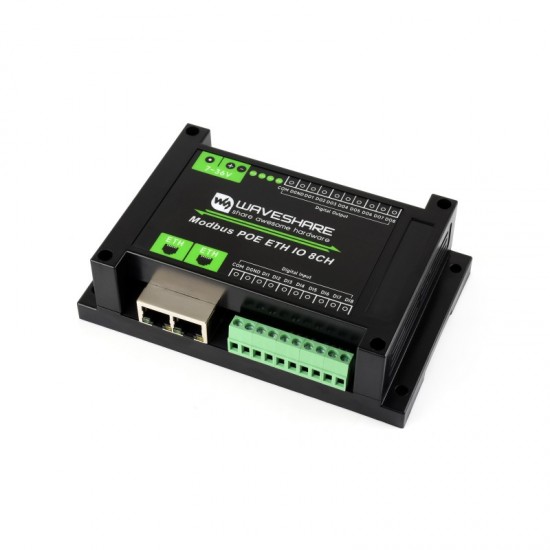

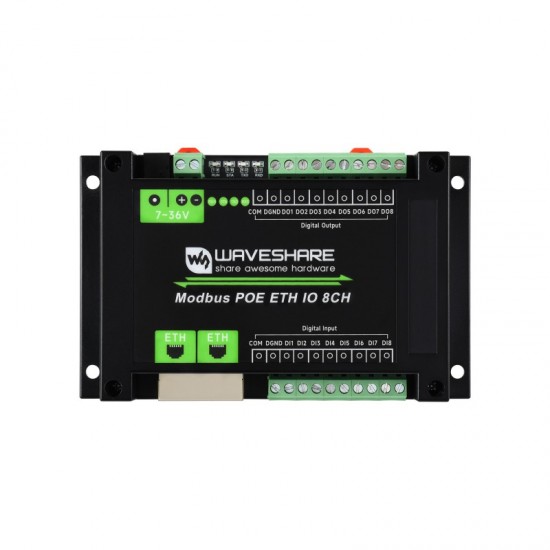

The Modbus POE ETH IO 8CH is an industrial 8DI / 8DO isolated digital input / output module with dual Ethernet interfaces control, it supports passive and active digital input. Adopts Modbus RTU / Modbus TCP protocols with built-in protection circuits such as power isolation, optocoupler isolation, resettable fuse, and TVS.

User Manual / Datasheet / Example Codes Etc.

Features

Onboard voltage regulator chip, supports 7V ~ 36V wide range power supply and PoE power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control
The output utilizes Darlington transistor with optocoupler isolation for stronger driving capability, up to 500mA sink current, and built-in flyback diode protection
Features flash-on and flash-off functions, by passing arguments to the command, it is possible to turn on the output for a while and then turn it off automatically

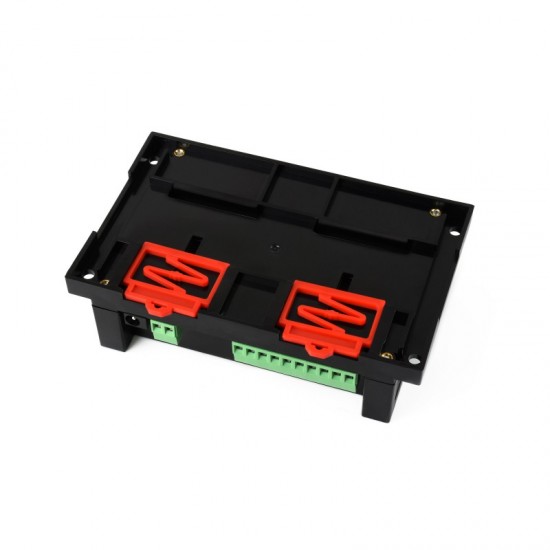

Rail-mount case design, easy to install, safe to use
Onboard LEDs for indicating the input / output status, MCU status, and signal transceiving status

Specifications

Supply Voltage: DC 7~36 V
Power Supply Methods: PoE Ethernet port, DC 5.5*2.1 power jack, or screw terminal (7 ~ 36 V)
Communication Interface: PoE Ethernet port, supporting IEEE 802.3af standard
Digital Input: 8DI, 5 ~ 36 V, dry contact/wet contact (NPN or PNP type), built-in bidirectional optocoupler
Digital Output: 8DO, 5 ~ 40 V, open-drain output, output load 500 mA/channel (MAX)
Modbus Protocol: Modbus RTU protocol or Modbus TCP protocol

Package Includes

Modbus POE ETH IO 8CH x1
Screwdriver x1

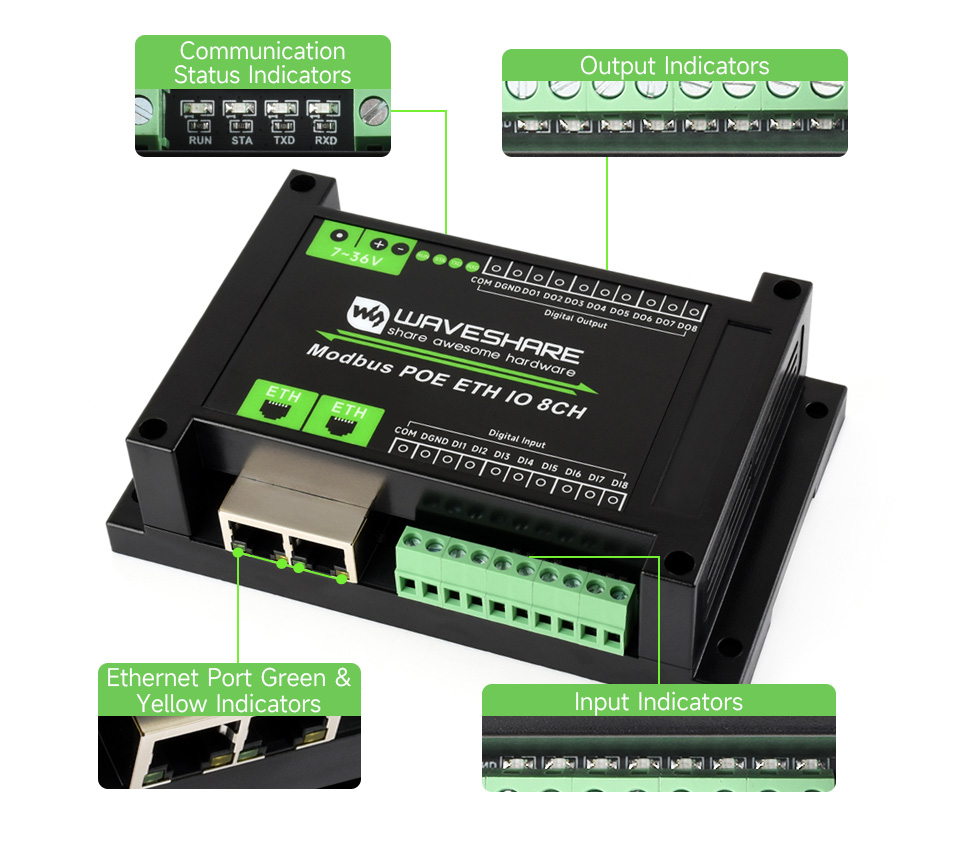

Interfaces & Indicators

With Multiple LED Indicators, Easy To Monitor The Operating Status

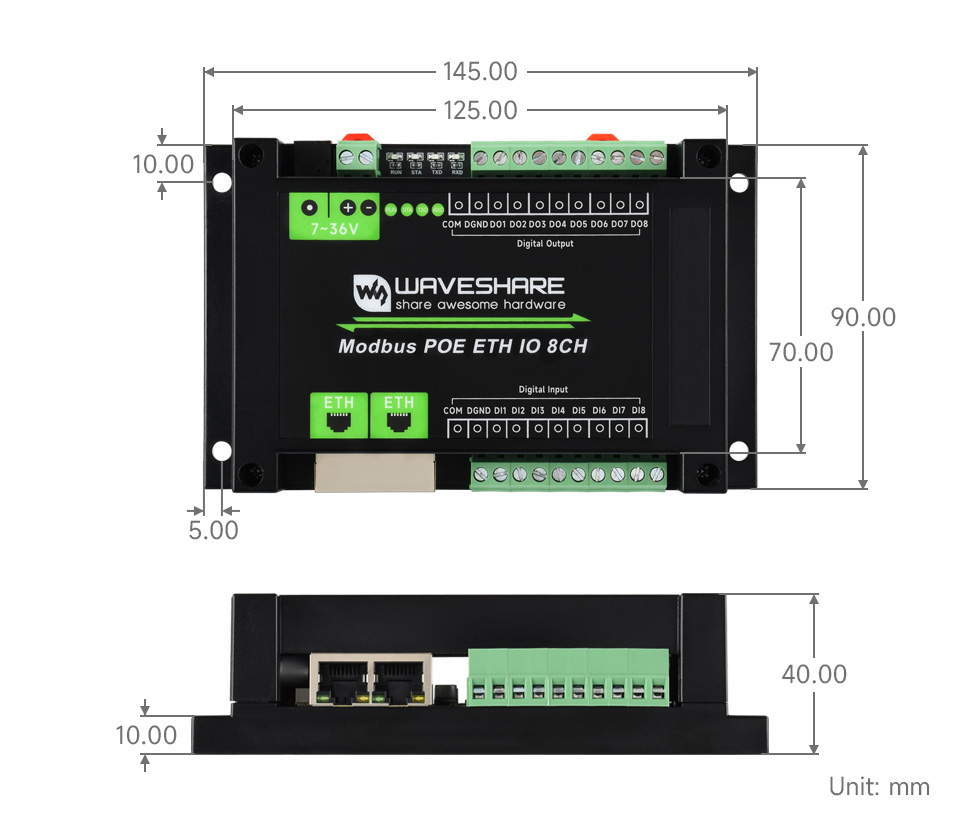

Dimensions
