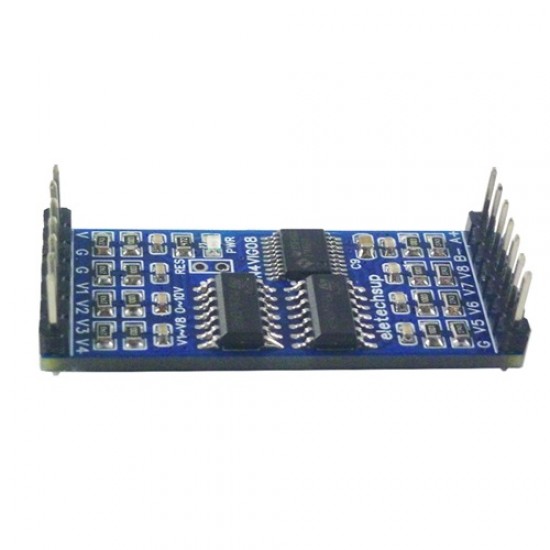

N4VIG08_PIN_12V 8-Channel Analog Input RS485 Modbus RTU ADC Module | 0-5V, 0-10V, 0-20mA & 4-20mA | 12V Power Supply
The N4VIG08_PIN_12V is an industrial-grade 8-channel analog input acquisition module designed for reliable voltage and current signal monitoring in PLC, SCADA, HMI, and industrial automation systems. Featuring RS485 communication with Modbus RTU protocol, it enables seamless integration with a wide range of controllers while supporting simultaneous acquisition of analog signals from sensors, transmitters, and measuring instruments.
This module supports multiple configurable input ranges, including 0-5V, 0-10V, 0-20mA, and 4-20mA, making it suitable for monitoring pressure, temperature, flow, level, and other industrial process variables. Powered by a 12V DC supply, the module offers stable operation, low power consumption, and easy installation in control panels or remote I/O applications. It supports configurable Modbus slave addresses and communication parameters for multi-device RS485 networks. Similar modules commonly support configurable addresses, multiple baud rates, and Modbus RTU communication for industrial data acquisition.
Features
- 8 independent analog input channels
- Supports 0-5V, 0-10V, 0-20mA, and 4-20mA input signals
- Standard RS485 Modbus RTU communication
- 12V DC power supply
- High-precision ADC for stable and accurate measurements
- Configurable Modbus slave address and baud rate
- Easy integration with PLCs, HMIs, industrial PCs, and SCADA systems
- Suitable for remote data acquisition and industrial monitoring
- Compact PCB design for OEM and embedded applications
- Reliable performance in automation and process control environments
Specifications
- Model: N4VIG08_PIN_12V
- Analog Input Channels: 8 Channels
- Supported Input Types: 0–5V, 0–10V, 0–20mA, 4–20mA
- ADC Resolution: 12-bit ADC
- Communication Interface: RS485
- Communication Protocol: Modbus RTU
- Power Supply: 12V DC
- Input Signal Resolution: 0.01V / 0.01mA
- Communication Distance: Up to 1200m (RS485, recommended with twisted pair)
- Modbus Address: Configurable (1–247)
- Baud Rate: Configurable (typically 1200, 2400, 4800, 9600, 19200 bps)
- Data Format: 8 Data Bits, No Parity/Even/Odd (configurable), 1 Stop Bit
- Isolation: Non-isolated

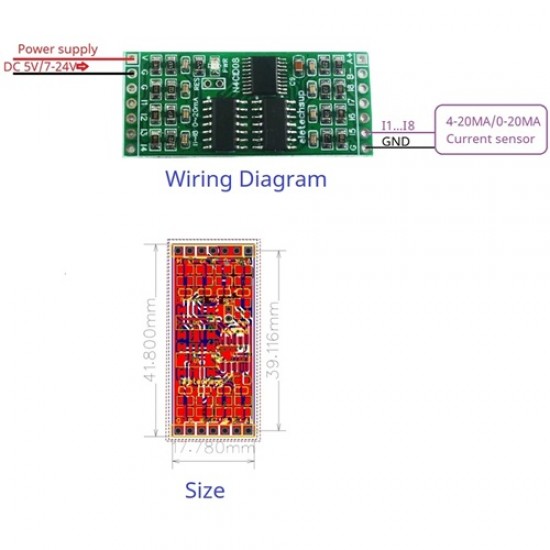

- Connector Type: 2.54mm Pin Header

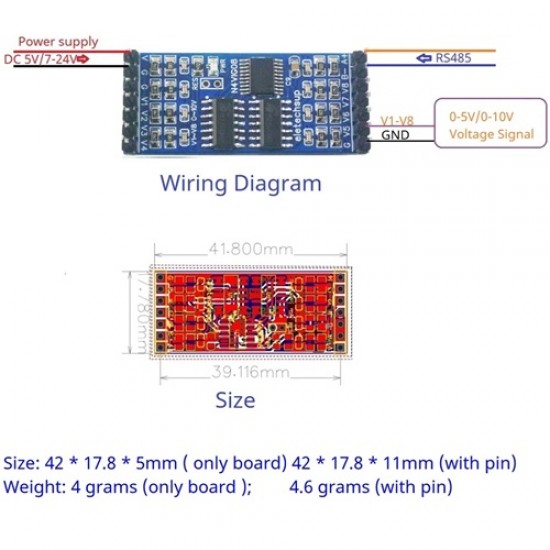

- PCB Dimensions: 42 × 17.8 × 11 mm (with pin header)
- Operating Temperature: -20°C to +70°C (typical)
- Mounting: Embedded/OEM PCB Mount
- Compatibility: PLC, HMI, SCADA, Industrial PC, Raspberry Pi, Arduino, ESP32, STM32 (via RS485)
