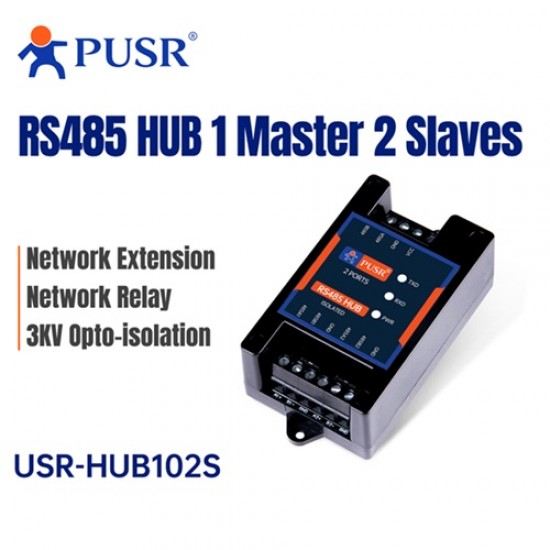

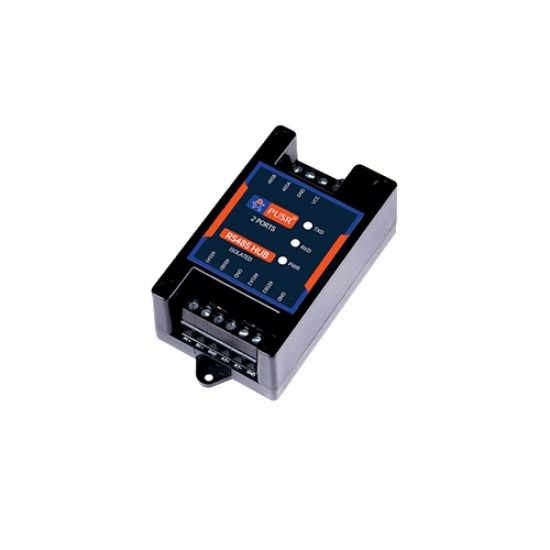

USR-HUB102S Industrial Grade RS485 HUB - 1 Master to 2 Slaves - 3kV Optical Isolation
The USR-HUB102S Industrial Grade RS485 HUB is a reliable RS485 communication expansion device designed to connect one RS485 master device with two RS485 slave devices. It features 3kV optical isolation, providing effective electrical isolation between communication interfaces and helping protect connected equipment from voltage surges, ground loops, and electrical interference.
Built for industrial environments, the hub offers stable RS485 signal transmission and improved communication reliability over long-distance networks. Its compact and rugged design makes it suitable for industrial automation, Modbus RTU networks, PLC communication, smart control systems, monitoring equipment, and other RS485-based applications.
Features
- RS485 Network Repeater: Signal Amplification
- Slave Expansion: Cascading Multi-nodes
- Auto-sensing: Data Flow
- Serial Port Buffering
- Custom Communication Protocols
Specifications
- Product model: USR-HUB102S
- Interface properties: Compatible with RS232, RS485, TIA/EIA standards
- Electrical interface: Industrial terminal block
- Signal input: RS485 Bus 1
- Signal output: 2-channel RS485
- Installation: RS485 Star Bus Architecture
- GPRS support node: Each RS485 channel supports 128 nodes
- Transmission medium: Twisted pair or shielded cable
- Operate mode: Asynchronous half-duplex (two-way communication)
- Power supply: DC9-40V 500mA
- Signal indication: Three indicator lights: Power (POW), Transmit (TXD), and Receive (RXD).
- Isolation level: Isolation voltage: 2500Vrms, 500V DC insulation, continuous DC/DC mode
- Protection level: ±15KV ESD protection and 600W surge protection per line for lightning strikes
- Applicable Communication: All serial communication software used is plug-and-play.
- Transmission speed: 300bps to 115.2Kbps (adaptive baud rate, protocol-agnostic)
- Transmission distance: 0-3 km (115200bps-300bps)
- Service environment: -20°C to 75°C, relative humidity 5% to 95%
- External dimensions: 100*54*32mm (with back clamp and positioning holes)
Package Includes
- 1x USRI-HUB102S Industrial Grade RS485 HUB - 1 Master to 2 Slaves - 3kV Optical Isolation
