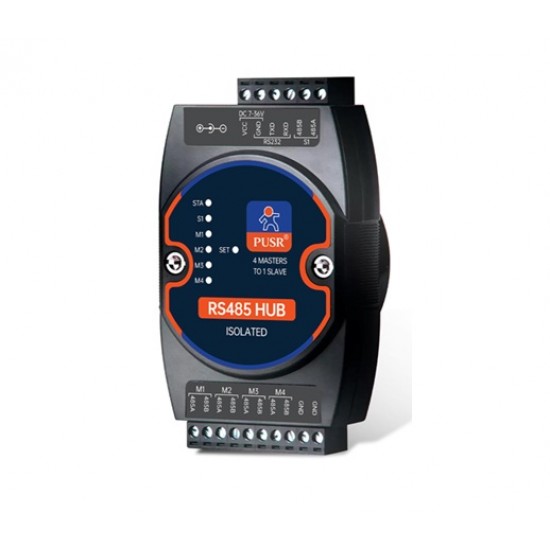

USR‑HUB401S-DC Industrial Grade RS485 HUB - 4 Master to 1 Slaves - 3kV Optical Isolation
The USR‑HUB401S-DC Industrial Grade RS485 HUB is a robust RS485 communication hub designed to connect 4 master devices to 1 slave device in industrial and automation environments. It provides reliable multi-device RS485 communication while simplifying wiring and network expansion.
Featuring 3kV optical isolation, the hub provides strong electrical isolation between communication interfaces, helping protect connected equipment from ground loops, voltage differences, surges, and electrical interference. Its industrial-grade design makes it suitable for demanding applications where communication stability and equipment protection are essential.
Features
- RS485 Network Repeater: Signal Amplification
- Slave Expansion: Cascading Multi-nodes
- Auto-sensing: Data Flow
- Serial Port Buffering
- Custom Communication Protocols
Specifications
- Product model: USR‑HUB401S-DC
- Interface properties: Compatible with RS232, RS485, TIA/EIA standards
- Electrical interface: Industrial terminal block
- Signal input: RS485 Bus 4
- Signal output: 1-channel RS485
- Installation: RS485 Star Bus Architecture
- GPRS support node: Each RS485 channel supports 128 nodes
- Transmission medium: Twisted pair or shielded cable
- Operate mode: Asynchronous half-duplex (two-way communication)
- Power supply: DC9-40V 500mA
- Signal indication: Three indicator lights: Power (POW), Transmit (TXD), and Receive (RXD).
- Isolation level: Isolation voltage: 2500Vrms, 500V DC insulation, continuous DC/DC mode
- Protection level: ±15KV ESD protection and 600W surge protection per line for lightning strikes
- Applicable Communication: All serial communication software used is plug-and-play.
- Transmission speed: 300bps to 115.2Kbps (adaptive baud rate, protocol-agnostic)
- Transmission distance: 0-3 km (115200bps-300bps)
- Service environment: -20°C to 75°C, relative humidity 5% to 95%
- External dimensions: 100*54*32mm (with back clamp and positioning holes)
Package Includes
- 1x USR‑HUB401S-DC Industrial Grade RS485 HUB - 4 Master to 1 Slaves - 3kV Optical Isolation
