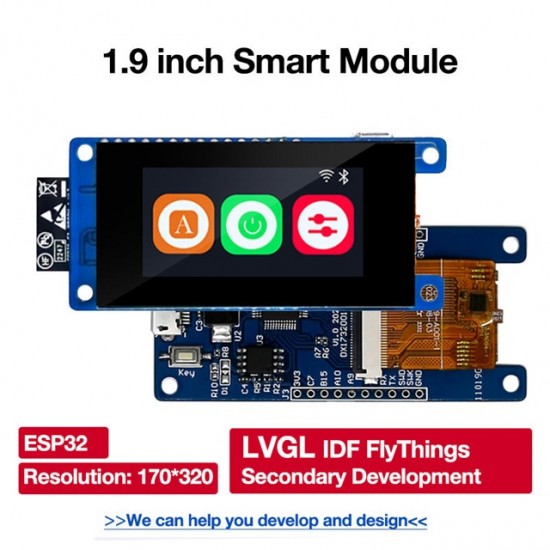

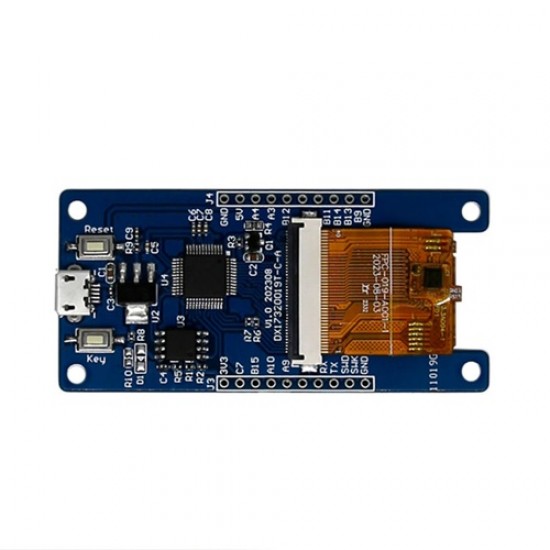

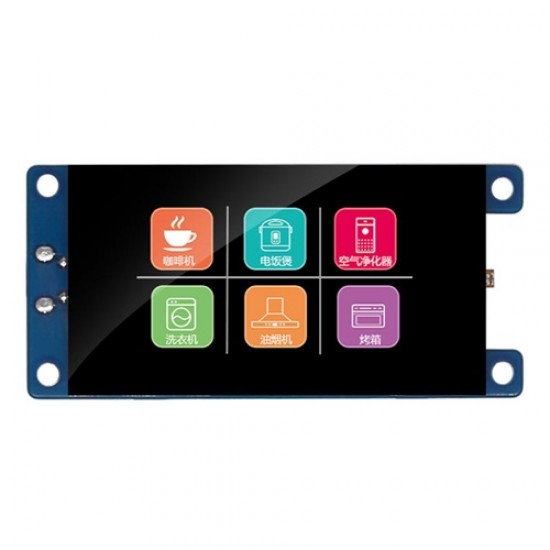

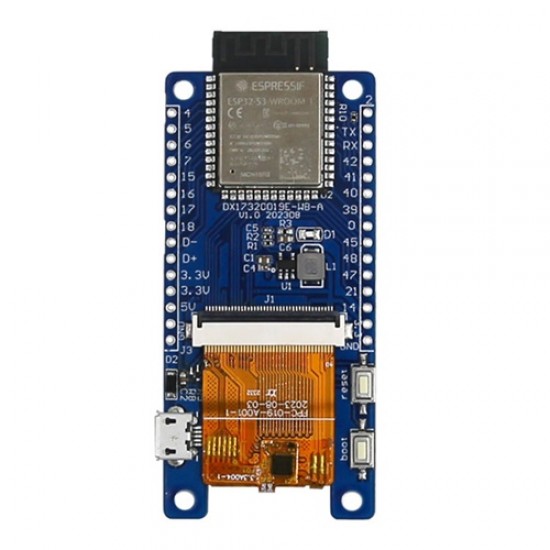

RTOS 1.9 Inch 170×320 TFT LCD ESP32-S3 Development Board with 16MB Flash | LVGL | Arduino, ESP-IDF & PlatformIO
The RTOS 1.9 Inch 170×320 TFT LCD ESP32-S3 Development Board is a compact, high-performance development platform designed for creating interactive IoT devices, HMI applications, smart displays, and embedded GUI projects. Powered by the ESP32-S3 dual-core Xtensa LX7 processor, this board combines a vibrant 1.9-inch 170×320 TFT LCD, 16MB Flash, and 8MB PSRAM to deliver smooth graphics performance with LVGL while supporting popular development environments such as Arduino IDE, ESP-IDF, and PlatformIO.
Its integrated Wi-Fi and Bluetooth LE connectivity, USB Type-C interface, microSD card support, battery charging circuit, and onboard peripherals make it an excellent choice for rapid prototyping and production-ready embedded applications. Whether you're building smart control panels, portable monitoring systems, or industrial interfaces, this board provides all the essential hardware in a compact form factor.
Features
- ESP32-S3 dual-core Xtensa LX7 processor running up to 240MHz
- 1.9-inch TFT LCD display with 170 × 320 resolution and 262K colors
- 16MB Flash memory and 8MB PSRAM for graphics-intensive applications
- Native support for LVGL graphical user interface development
- Built-in 2.4GHz Wi-Fi and Bluetooth 5 LE connectivity
- USB Type-C interface for programming, debugging, and power
- Onboard microSD (TF) card slot for data and image storage
- Lithium battery connector with onboard charging support
- QMI8658 6-axis IMU for motion sensing (on supported variants)
- Pico-compatible expansion headers for connecting external peripherals
- Compatible with Arduino IDE, ESP-IDF, and PlatformIO development environments
- Ideal for HMI, IoT dashboards, smart home devices, portable instruments, and embedded GUI projects.
Specifications
- Processor: ESP32-S3 Dual-Core Xtensa LX7
- CPU Frequency: Up to 240MHz
- Display Size: 1.9 Inch TFT LCD
- Resolution: 170 × 320 Pixels
- Display Driver: ST7789V2
- Color Depth: 262K Colors
- Flash Memory: 16MB
- PSRAM: 8MB
- Wireless: 2.4GHz Wi-Fi, Bluetooth 5 LE
- USB Interface: USB Type-C
- Storage: MicroSD (TF) Card Slot
- Battery Support: 3.7V Li-ion Battery Connector with Charging
- Development Platforms: Arduino IDE, ESP-IDF, PlatformIO
- GUI Library: LVGL Supported
- Expansion: Pico-Compatible GPIO Headers
Applications
- Human Machine Interface (HMI) systems
- Smart home control panels
- IoT monitoring dashboards
- Portable test and measurement devices
- Industrial automation interfaces
- Wearable and handheld electronics
- Data visualization terminals
- Educational embedded systems
- Robotics control displays
- Home automation controllers
Package Includes
- 1x RTOS 1.9 Inch 170×320 TFT LCD ESP32-S3 Development Board with 16MB Flash | LVGL | Arduino, ESP-IDF & PlatformIO
