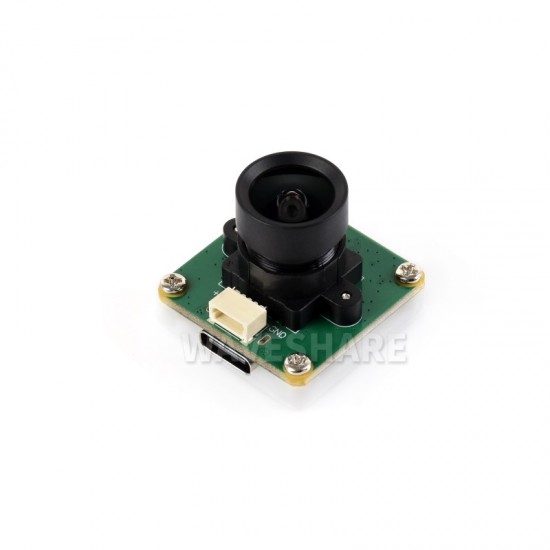

Waveshare OV2735 2MP USB Camera (A), Supports USB2.0 Type-C Port And SH1.0 4PIN Header

The Waveshare OV2735 2MP USB Camera (A) is a compact and efficient imaging module designed for embedded vision applications, industrial monitoring, and DIY projects. Featuring the OV2735 sensor, this camera delivers clear 2MP resolution images with reliable performance in various lighting conditions.

Equipped with a USB 2.0 Type-C interface, it ensures fast data transmission and plug-and-play convenience across multiple platforms, including Windows, Linux, and embedded systems. Additionally, the onboard SH1.0 4PIN header provides flexible connectivity for extended integration and customization in hardware projects.

Its small form factor and easy installation make it ideal for applications such as machine vision, security systems, robotics, and smart devices.

User Manual / Datasheet / Example Codes Etc.

Features

2MP OV2735 image sensor for clear and stable image capture
USB 2.0 Type-C interface for reliable, high-speed data transfer
Plug-and-play support, no drivers required for most systems
SH1.0 4PIN header for additional control and expansion
Compact design suitable for embedded and space-constrained applications
Compatible with Windows, Linux, and various development platforms

Specifications

ixels: 2MP
Sensor: OV2735
Interface: USB2.0 Type-C port / SH1.0 4PIN header
Camera

Sensor size: 1/2.7 inch
Aperture (F): 2.7
Focal length (EFL): 2.88mm
Field of view (FOV): 96°
Distortion: <-0.2%
Focusing: Fixed-focus


Format support: MJPG, YUY2
Static image resolution: 1920 × 1080

Video recording

30 FPS 1920 × 1080
30 FPS 1280 × 720

Operating voltage: 5V ± 5%
operating temperature: 0°C ~ 50°C
Module size: 25.00 × 25.00 (mm)

Package Includes

OV2735 2MP USB Camera (A)
SH1.0 4PIN dual plug cable

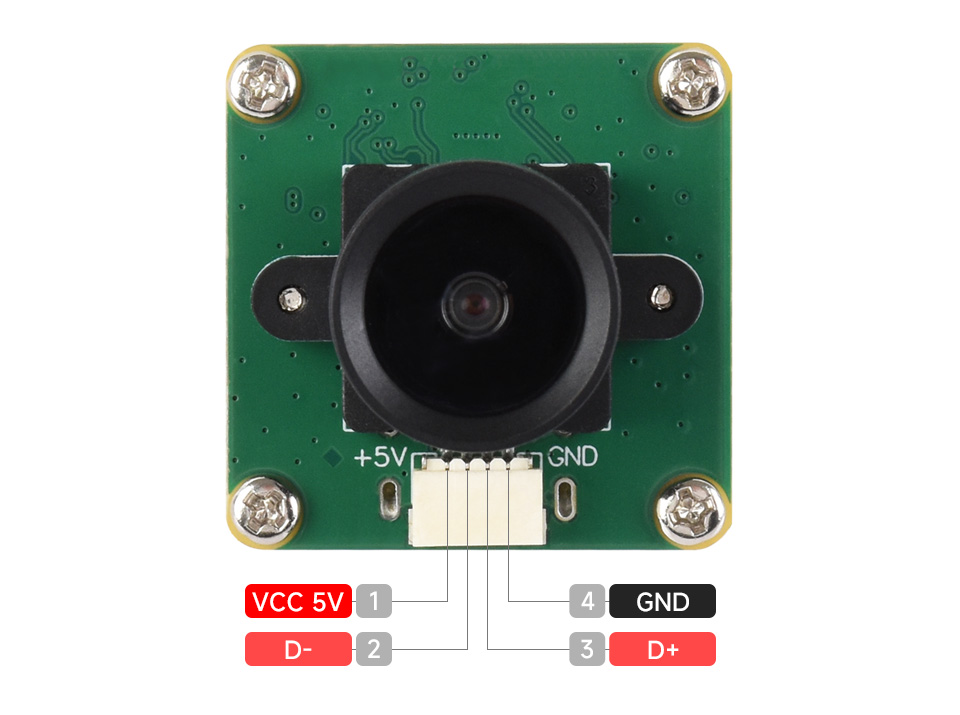

Pinout Definition

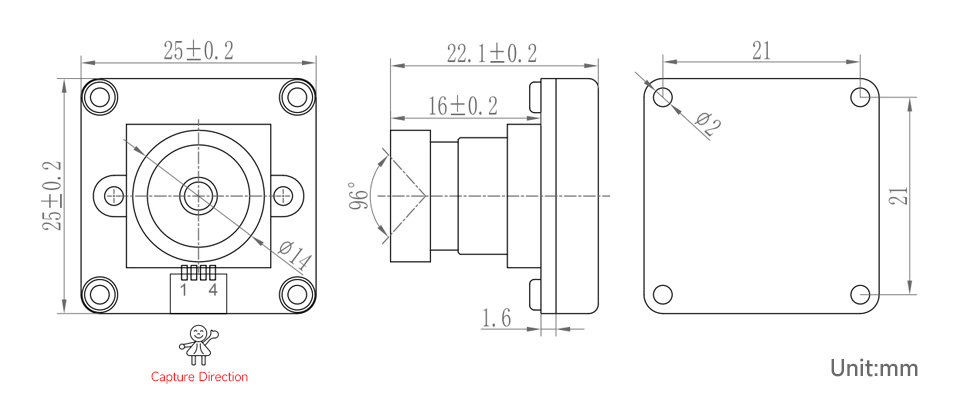

Dimensions
