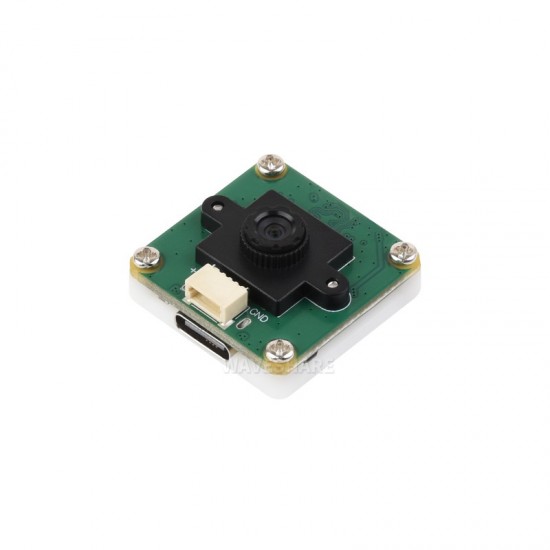

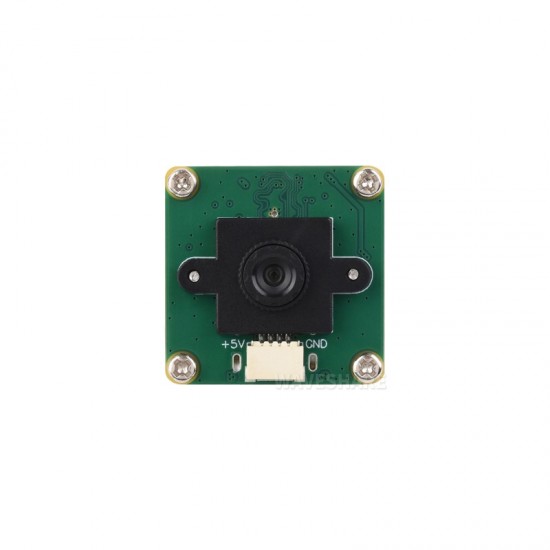

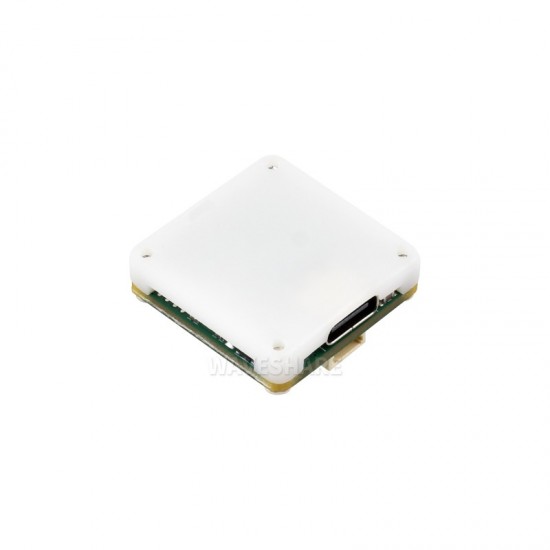

Name: Waveshare OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter For Clearer Imaging
Brand: WaveShare Electronics
SKU: 31671
Price: 2840.00 INR
Availability: OutOfStock

Waveshare OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter For Clearer Imaging

WaveShare Electronics

Waveshare OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter For Clearer Imaging

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹2,840.00

₹2,406.78 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 24
B2B GST Credit Available

Price in reward points: 2406

Stock: 0 in Stock
SKU: 31671
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare OV9281 1MP Mono USB Camera (A), Supports 120FPS High Frame Rate Recording, Global Shutter For Clearer Imaging

The Waveshare OV9281 1MP Mono USB Camera (A) is a high-performance imaging solution designed for applications that demand speed, precision, and reliability. Equipped with a 1MP monochrome sensor and advanced global shutter technology, this camera excels in capturing fast-moving objects with exceptional clarity, making it ideal for machine vision, motion analysis, and industrial automation tasks.

Unlike rolling shutter cameras, the OV9281’s global shutter ensures distortion-free imaging by capturing the entire frame simultaneously. This results in sharp, accurate images even in high-speed scenarios. With support for up to 120 frames per second, it delivers smooth, real-time video output, enabling precise tracking and analysis.

User Manual / Datasheet / Example Codes Etc.

Features

1MP monochrome sensor for high-contrast imaging
Global shutter technology for distortion-free capture
High frame rate support up to 120FPS
USB interface for plug-and-play connectivity
Ideal for machine vision, robotics, and industrial applications

Specifications

Pixels: 1MP (mono)
Sensor: OV9281
Interface: USB2.0 Type-C
Camera

Sensor size: 1/4 inch
Aperture (F): 2.2
Focal length (EFL): 1.65mm
Field of view (FOV): 105°
Distortion: <10%
Focusing: Fixed-focus
Mount: M12

CONSTRUCTION: without IR Filter

Format support: MJPG, YVY2
Static image resolution: 1280 × 720
Video recording

120 FPS 1280 × 720
120 FPS 800 × 600
120 FPS 640 × 480

Dynamic range: 52dB
SNR :46dB
Operating voltage: 5V ± 5%
operating temperature: 0°C ~ 50°C
Module size: 25.00 × 25.00 (mm)

Package Includes

OV9281 1MP USB Camera (A)
SH1.0 4PIN dual plug cable

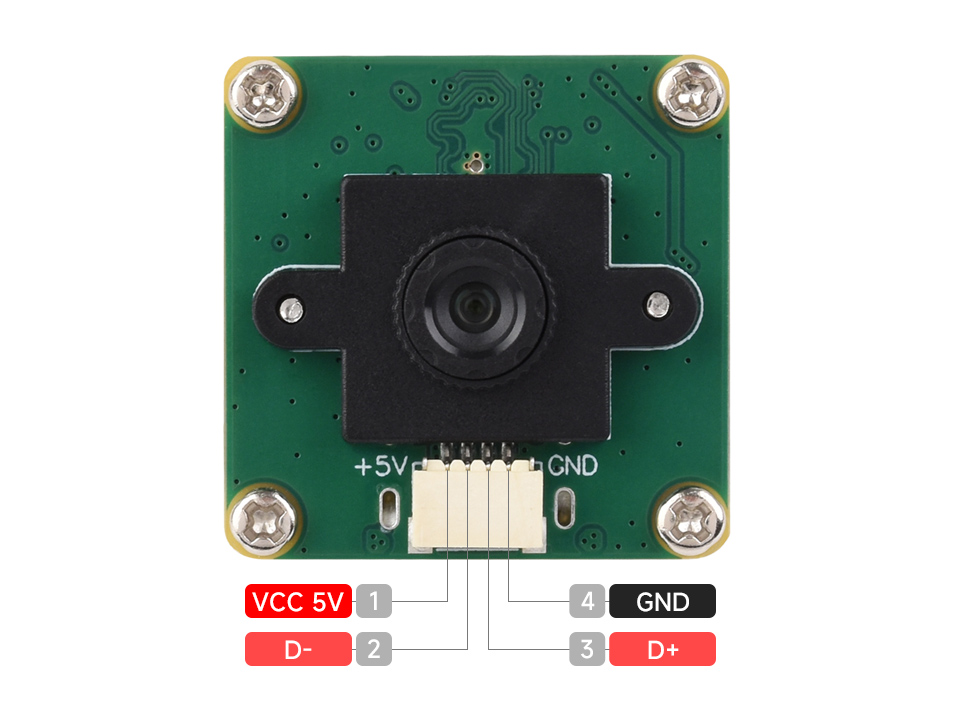

Pinout Definition

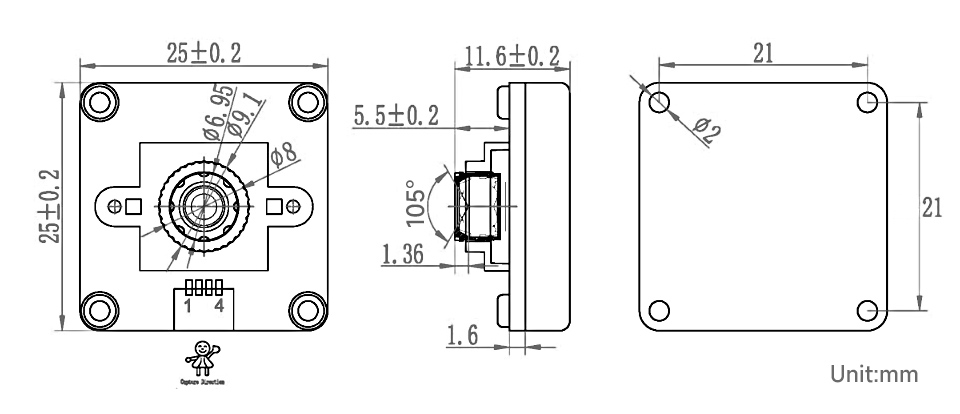

Dimensions
