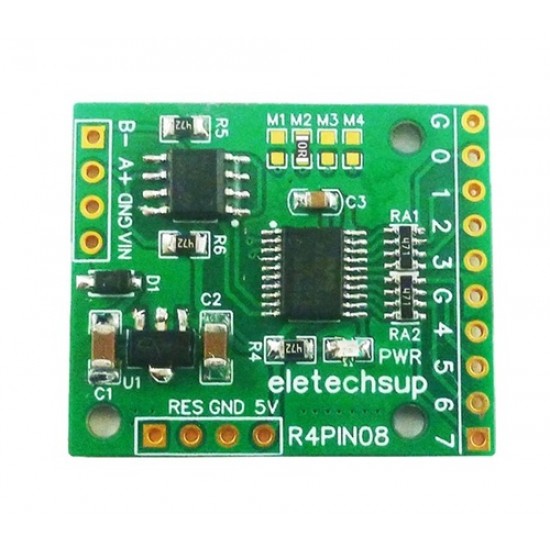

R4PIN08-PIN-4DI-4DO 8-Channel RS485 Modbus RTU Remote I/O Module | 4 Digital Inputs & 4 Digital Outputs | 5V/12V/24V TTL
The R4PIN08_PIN_4DI-4DO is a compact and versatile 8-channel RS485 Remote I/O Module designed for industrial automation, PLC control, and distributed I/O applications. Configured with 4 Digital Inputs (DI) and 4 Digital Outputs (DO), it communicates using the industry-standard Modbus RTU protocol over an RS485 interface, enabling reliable long-distance data transmission and seamless integration with PLCs, HMIs, SCADA systems, and industrial controllers.
Supporting 5V, 12V, and 24V TTL operation, the module offers flexible connectivity for a wide range of sensors, switches, relays, and actuators. It features configurable input/output logic, multiple baud rate options, and supports up to 247 Modbus slave devices on a single RS485 network. Its compact 2.54mm pin-header design makes it ideal for embedded systems, custom automation panels, and IoT gateways where space is limited. The module also supports selectable I/O modes via onboard jumpers, allowing it to be adapted to various digital control requirements.
Features
- 4 Digital Inputs (DI) and 4 Digital Outputs (DO)
- RS485 communication with Modbus RTU protocol
- Supports 5V, 12V, and 24V TTL applications
- Compatible with PLCs, HMIs, SCADA, and industrial PCs
- Configurable NPN/PNP input and output logic
- Supports up to 247 devices on a single RS485 bus
- Adjustable baud rates from 1200 to 115200 bps
- Compact 2.54mm pin-header interface for easy wiring
- Low power consumption and reliable industrial performance
- Ideal for remote monitoring, automation, and distributed I/O expansion
Specifications
- Model: R4PIN08_PIN_4DI-4DO
- I/O Configuration: 4 Digital Inputs (DI) + 4 Digital Outputs (DO)
- Communication Interface: RS485
- Communication Protocol: Modbus RTU
- Supported Modbus Function Codes: Read: 01, 02, 03 • Write: 05, 06, 15, 16
- Supply Voltage: DC 6–25V (reverse polarity protected) or DC 4–5V (TTL supply)
- Compatible Logic Levels: 3.3V / 5V TTL Input, 5V TTL Output
- Input Channels: 4 Digital Inputs
- Output Channels: 4 Digital Outputs
- Input Type: Configurable Low-Level (Default) or High-Level Input
- Output Type: Configurable Low-Level (Default) or High-Level Output
- NPN/PNP Support: Software configurable via Modbus registers
- Working Current: 6–13 mA
- Baud Rate: 1200, 2400, 4800, 9600 (Default), 19200, 38400, 57600, 115200 bps
- Serial Format: None / Odd / Even Parity
- Maximum Devices on RS485 Bus: Up to 247 Modbus slave devices
- I/O Status Reporting: Query mode and Automatic Reporting

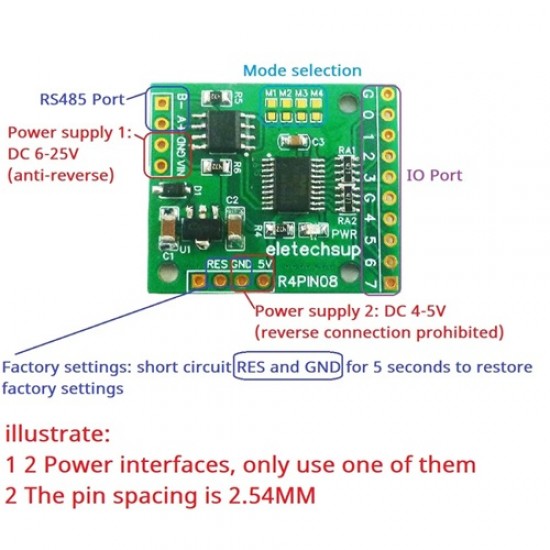

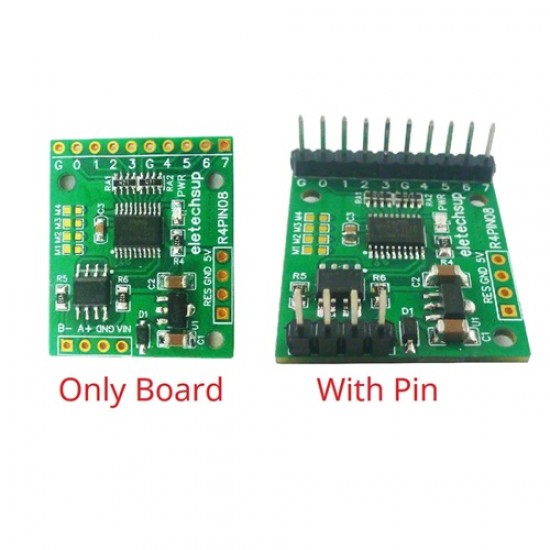

- Interface: 2.54 mm Pin Header

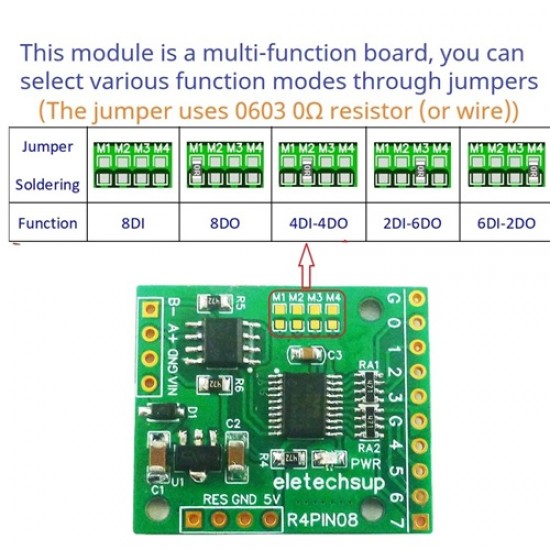

- Supported I/O Modes: 8DI, 8DO, 4DI-4DO, 2DI-6DO, 6DI-2DO (Jumper Selectable)

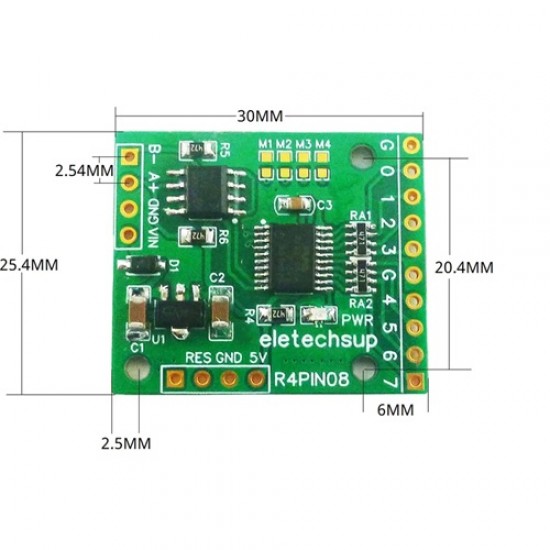

- Dimensions: 30 × 25.4 × 2 mm
- Weight: Approx. 3 g
- Operating Applications: PLCs, SCADA, HMIs, Industrial Automation, Remote Monitoring, Embedded Control Systems
